BSR - Pipe Rotator For Welding

Smart Alignment. Smooth Rotation. Flawless Welds.

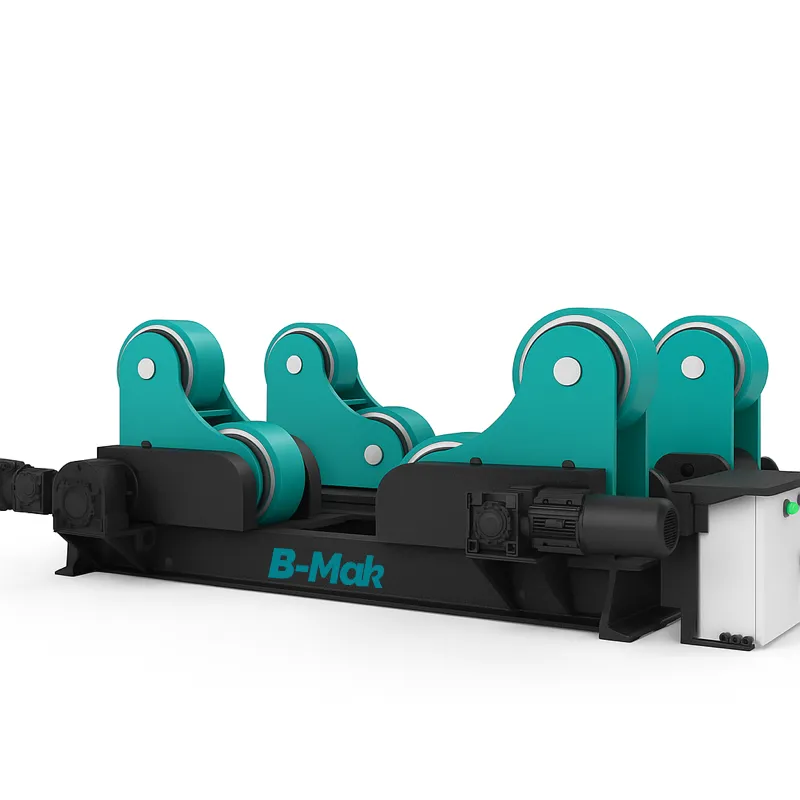

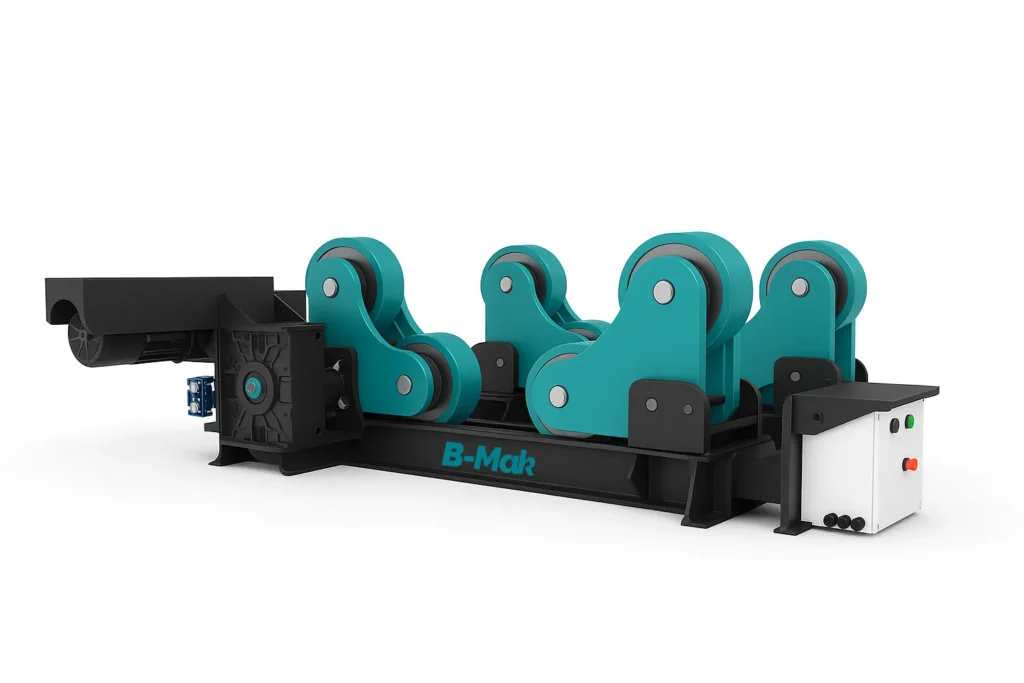

The BSR

General Features

The BSR Self-Aligning Rotators provide a fast, practical, and cost-effective solution for the circular welding of cylindrical workpieces with varying diameters. Designed for automatic self-alignment, the BSR series eliminates manual adjustment, allowing immediate setup and seamless operation.
Ideal for tanks, pressure vessels, towers, boilers, reactors, fuel barrels, depots, wind power components, petrochemical pipelines, and shipbuilding, the BSR ensures perfect concentric rotation and consistent weld quality across all applications.

Its unique roller design automatically adjusts to the workpiece diameter, keeping the cylinder perfectly centered and reducing the need for welding head repositioning. Built with a robust, steel-welded frame, the BSR guarantees durability, reliability, and long-term precision under heavy-duty workloads.
Operators can easily rotate workpieces clockwise (CW) or counterclockwise (CCW) with precise variable speed control, ensuring smooth operation and flawless welding results.
By eliminating manual pre-adjustment and crane handling, the BSR dramatically reduces setup time, improves operator safety, and boosts production efficiency in both manual and automatic welding processes.

Optional Control Units

● Rail Movement System: Available Buggy Carrier System allows the rotator to move along rails — offered in two versions:,
● Manual movement over rails, or,
● Motor-driven movement for efficient positioning.,
● Double Driven Roller Option: While single driven roller comes standard, double driven rollers can be added for increased power and grip on heavy workpieces.

● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● SFP-Single Foot Pedal (3m)
● OHC-Overhead Hangable Control
● MP-Master Panel
● WRC – Wireless Remote Control
● BCBS-Driven + Idler Buggy Set

Standard Features

● Adjustable Wheel Rotation Speed with digital display on the electrical cabinet for precise monitoring and control.
● Self-Aligning Rollers — automatically adapt to different workpiece diameters, ensuring perfect centering and balance.
● Durable Polyurethane Rollers — designed to absorb shocks and vibrations for smoother, quieter operation.
● 5 m Handbox Remote Cable Command for convenient operator control.
● 5 m Power Cable — ready for quick and flexible installation.
● Brake & Fan-Cooled Motor — provides stable, continuous, and efficient performance under heavy loads.

Advantages

● Each BSR Self-Aligning Rotator Set consists of two units:,
● One (1) Driven Unit,
● One (1) Idler Unit,
● Depending on application requirements, the number of driven and idler units can be adjusted accordingly.,
● Capacity Range: Standard models available in 5 t, 10 t, 15 t, 20 t, 30 t, 40 t, 50 t, 60 t, 80 t, 100 t, and 120 t capacities.,
● On request, special models above 120 t can also be manufactured.,
● Drive Configuration:,
● Up to 30 t capacities: Single driven roller group.,
● From 30 t and above: Double driven roller group for greater torque and load stability.

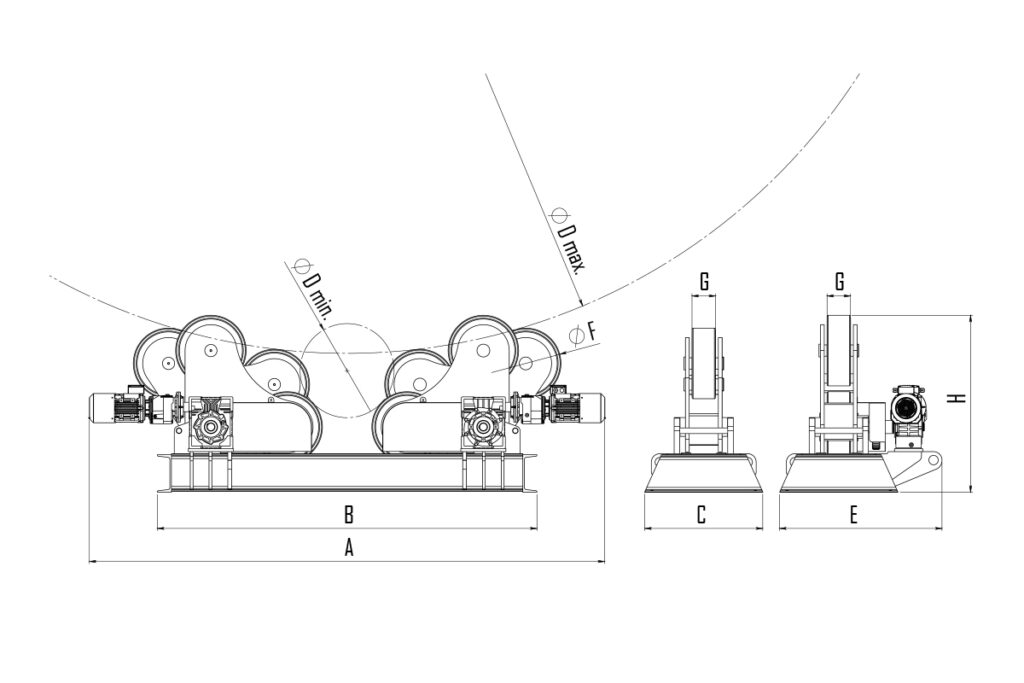

Technical Data

BSR	Sym	Unit	BSR-5	BSR-10	BSR-15	BSR-20	BSR-30	BSR-40	BSR-50	BSR-60	BSR-80	BSR-100	BSR-120
Capacity		ton	5	10	15	20	30	40	50	60	80	100	120
Max. Load (Drive Unit)		t/unit	2.5	5	7.5	10	15	20	25	30	40	50	60
Max. Load (Idler Unit)		t/unit	2.5	5	7.5	10	15	20	25	30	40	50	60
No. of Driwen	WD	No.	1WD	2WD	2WD	2WD	4WD	4WD	4WD	4WD	4WD	4WD	4WD
Rotation Speed	min-max	mm/min	150-1130	150-1220	150-1230	150-1350	150-1300	150-1200	150-1230	150-1300	150-1230	150-1200	150-1230
Diameter Range	Ødmin ØDmax	mm	250-3000	450-3000	450-3300	450-4600	500-4600	500-4600	500-4600	550-5200	550-5500	600-5500	600-5500
Wheel Diameter	ØF	mm	240	340	340	375	415	440	440	500	550	550	550
Wheel Width	G	mm	75	100	110	125	125	130	130	150	175	220	240
Wheel Coating			PU	PU	PU	PU	PU	PU	PU	PU	PU	PU	PU
Length (Drive Unit)	A	mm	1540	2580	2400	2480	2680	2700	2830	3000	3200	3260	3380
Length (Idler Unit)	B	mm	1140	1970	1970	2020	2150	2330	2330	2740	2860	2880	2880
Width (Drive Unit)	E	mm	840	720	900	985	1050	1150	1150	1200	1280	1500	1630
Width (Idler Unit)	C	mm	350	500	520	560	580	700	700	700	700	900	900
Height	H	mm	517	880	880	940	1000	1040	1040	1260	1320	1330	1330
Motor Power	P	kW	0,37 x 1	0,25 x 2	0,55 x 2	0,55 x 2	0,55 x 2	0,55 x 2	0,55 x 2	0,75 x 2	0,75 x 2	1,1 x 2	1,5 x 2
Weight	W	kg	380	1100	1180	1360	1830	2540	2600	3760	5320	6200	6400
