BEM S (2AX) - Headstock Tailstock Welding Positioner
Compact Power. Dual-Axis Precision.
The BEM S (2AX)
General Features
The BEM-S Ground Stationary Model is built for precision, reliability, and simplicity — the perfect choice for stable, repeatable welding operations.
Optimized for Fixed-Length Workpieces: Ideal for components that do not require longitudinal adjustments.
Smart Investment: A cost-effective yet high-performance solution for everyday welding applications.
Smooth & Silent: Designed for quiet, vibration-free operation, ensuring a comfortable and efficient workspace.
Precision Control: Easily adjust table rotation speed for perfect weld quality on every project.
HMI Intelligence: Store multiple programs (recipes) and set individual height and angle parameters for consistent results and reduced setup time.
Optional Control Units
● WRC – Wireless Remote Control
● EFFA – Easy Fixing Fixture Apparatus

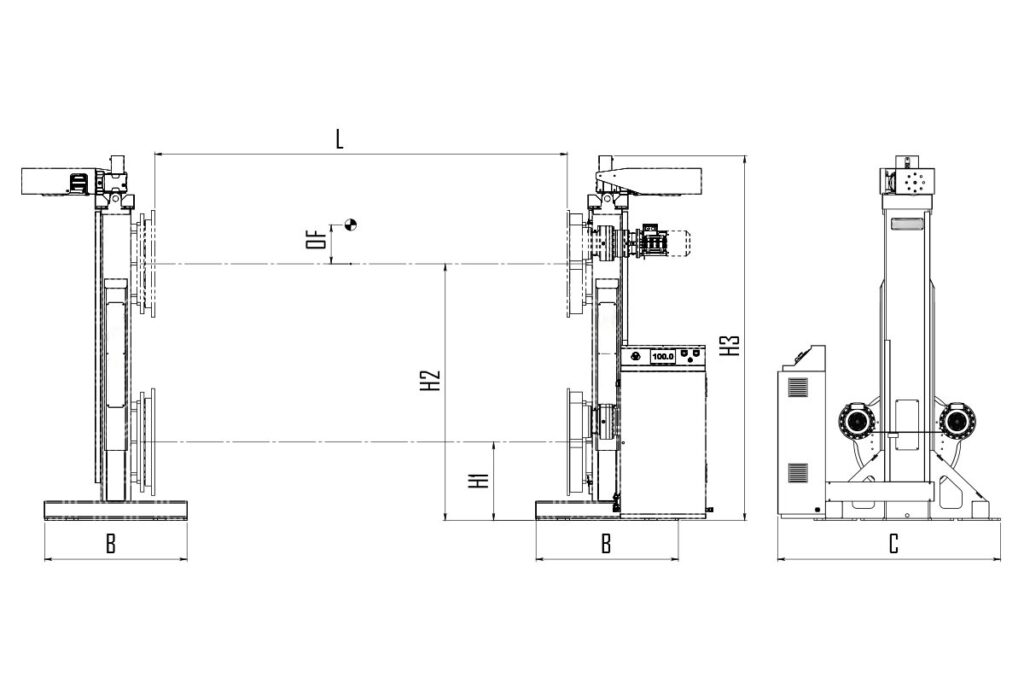

Technical Data
BEM-S | Sym | Unit | BEM-1,5S | BEM-3S
| BEM-5S
| BEM-6S
| BEM-8S | BEM-10S | BEM-12S |
Capacity |
| kg
| 1500
| 3000
| 5000
| 6000
| 8000
| 10000
| 12000
|
Rotation Speed |
| rpm
| 0,2 – 1,2
| 0,2 – 1,15
| 0,2 – 1
| 0,2 – 1,2
| 0,1-0,68
| 0,1-0,62
| 0,1-0,67
|
Up & Down Speed | mm/min | 540 | 500 | 500 | 450 | 500 | 450 | 450 | |
Max. Rotational Torque |
| Nm
| 5000
| 10150
| 17800
| 20550
| 24000
| 30000
| 36000
|
Up & Down Torque |
| Nm | 200
| 326
| 446
| 490
| 862
| 950
| 950
|
Adjust, tilting axle height min.-max | H1-H2
| mm
| 550-1550
| 550-1550
| 550-1800
| 550-1800
| 550-1800
| 550-1800
| 550-2000
|
Offset Distance | OF
| mm
| 300
| 300
| 300
| 300
| 300
| 300
| 300
|
Table Plate Diameter | ØD | mm
| 575
| 650
| 750
| 750
| 750
| 850
| 1000
|
Max. Workpiece Diameter
|
| mm
| 2800
| 2800
| 3600
| 3600
| 3600
| 3600
| 4000
|
Height | H3 | mm
| 2240
| 2260
| 2560
| 2560
| 2580
| 2580
| 2790
|
Length | B | mm
| 850
| 850
| 1000
| 1000
| 1000
| 1000
| 1000
|
Width
| C
| mm
| 1455
| 1530
| 1570
| 1570
| 1570
| 1640
| 1680
|
Space Distance | L
| mm
| 6000
| 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
Motor Power Of Table |
| kW | 0,75 x 1 | 1,5 x 1 | 1,5 x 2 | 1,5 x 2 | 1,5 x 2 | 1,5 x 2 | 2,2 x 2 |
Motor Power of Lifting
|
| kW
| 0,75 x 2
| 1,1 x 2
| 1,5 x 2
| 1,5 x 2
| 3 x 2
| 3 x 2
| 3 x 2
|
Weight |
| kg
| 1370
| 1540
| 1970
| 2000
| 2190
| 2370
| 2600 |
