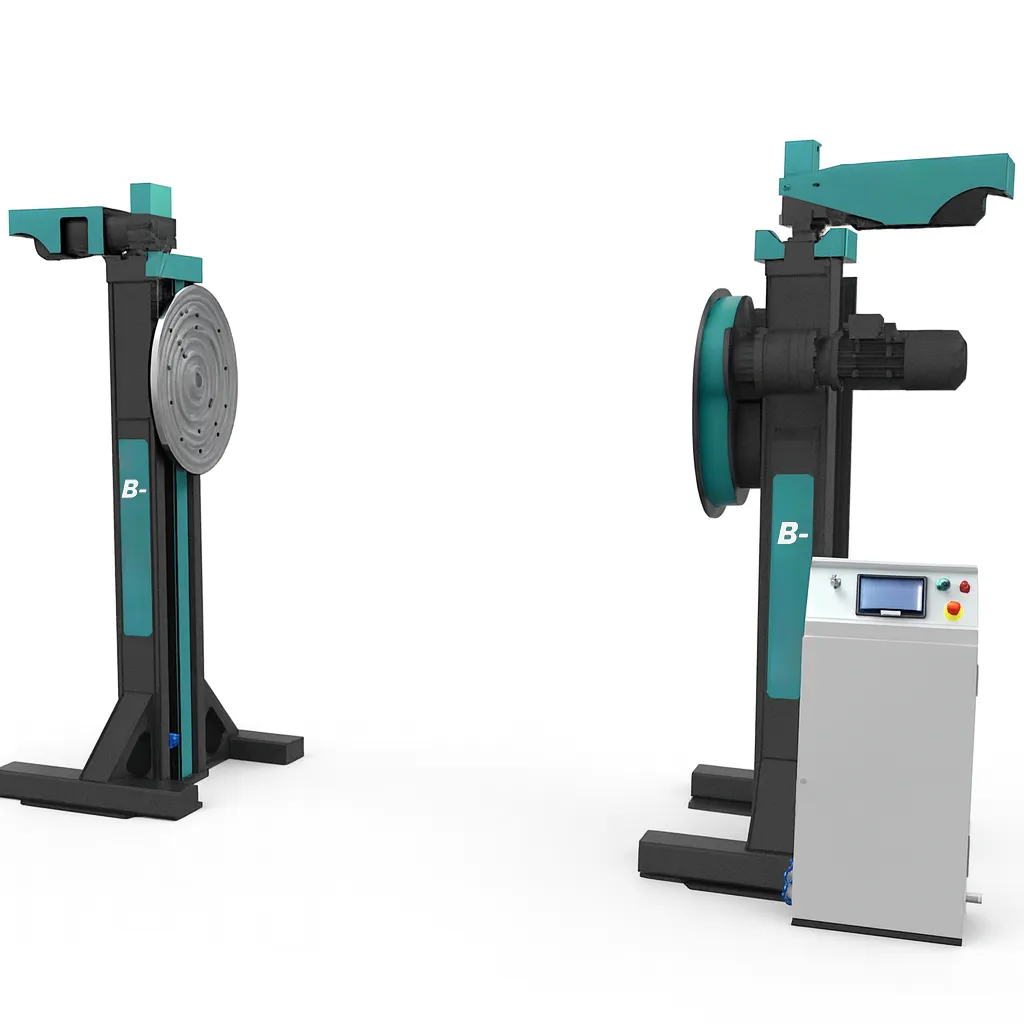

BEM G (2 + 1 AX) - Headstock Tailstock Welding Positioner
Multi-Axis Power. Perfect Positioning.
The BEM G (2 + 1 AX)
General Features
The BEM-G Standard Manual-Movable Model is designed to bring precision, versatility, and efficiency to your welding operations — all in one smart, cost-effective package.
Versatile Handling: Accommodates workpieces of various lengths and dimensions with ease.
Quiet Power: Engineered for smooth and silent operation, ensuring operator comfort and precision.
Smart Investment: A low-cost solution that delivers high productivity and long-term reliability.
Speed at Your Fingertips: Adjustable table rotation speed for optimal control during every weld.
Advanced HMI Control: Store and manage multiple programs (recipes) — define and recall height, angle, and other parameters for different setups in seconds.
Optional Control Units
● WRC – Wireless Remote Control
● EFFA – Easy Fixing Fixture Apparatus

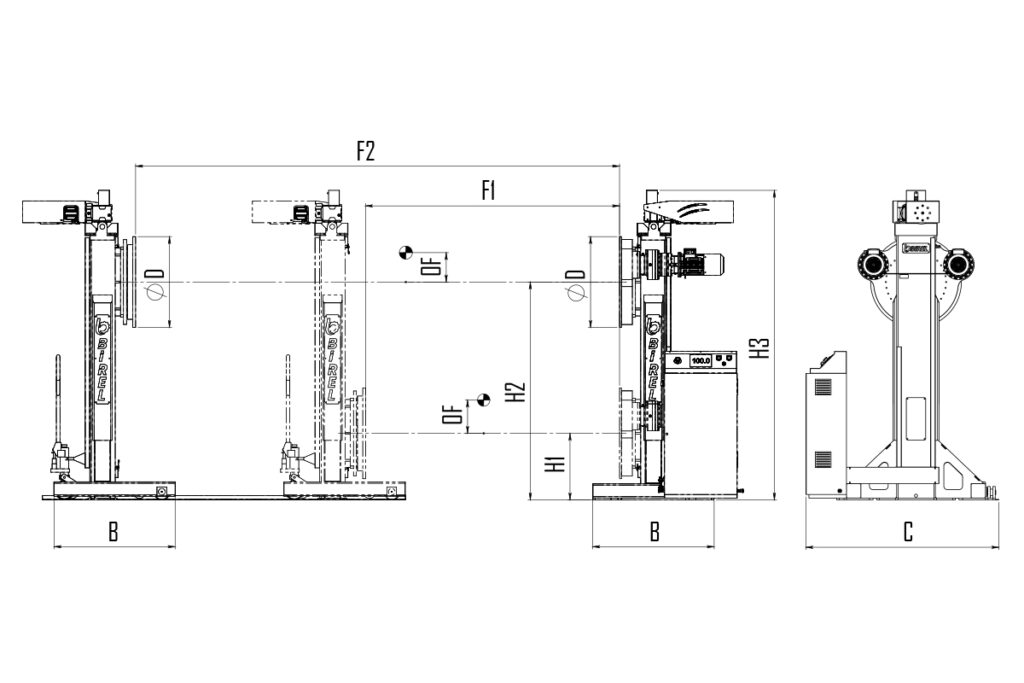

Technical Data
BEM-G | Sym | Unit | BEM-1,5G | BEM-3G
| BEM-5G
| BEM-6G
| BEM-8G | BEM-10G | BEM-12G |
Capacity |
| kg
| 1500
| 3000
| 5000
| 6000
| 8000
| 10000
| 12000
|
Rotation Speed |
| rpm
| 0,2 – 1,2
| 0,2 – 1,15
| 0,2 – 1
| 0,2 – 1,2
| 0,1-0,68
| 0,1-0,62
| 0,1-0,67
|
Up & Down Speed |
| mm/min | 540 | 500 | 500 | 450 | 500 | 450 | 450 |
Max. Rotational Torque
|
| Nm
| 5000
| 10150
| 17800
| 20550
| 24000
| 30000
| 36000
|
Up & Down Torque |
| Nm | 200
| 326
| 446
| 490
| 862
| 950
| 950
|
Min-Max Lifting Height | H1-H2
| mm
| 550-1550
| 550-1550
| 550-1800
| 550-1800
| 550-1800
| 550-1800
| 550-2000
|
Offset Distance | OF
| mm
| 300
| 300
| 300
| 300
| 300
| 300
| 300
|
Table Plate Diameter | ØD | mm
| 575
| 650
| 750
| 750
| 750
| 850
| 1000
|
Max. Workpiece Diameter
|
| mm
| 2800
| 2800
| 3600
| 3600
| 3600
| 3600
| 4000
|
Height | H3 | mm
| 2240
| 2260
| 2560
| 2560
| 2580
| 2580
| 2790
|
Length | B | mm
| 850
| 850
| 1000
| 1000
| 1000
| 1000
| 1000
|
Width
| C
| mm
| 1530
| 1530
| 1570
| 1570
| 1570
| 1640
| 1680
|
Motor Power Of Table |
| kW | 0,75 x 1 | 1,5 x 1 | 1,5 x 2 | 1,5 x 2 | 1,5 x 2 | 1,5 x 2 | 2,2 x 2 |
Rail Type |
|
| By Birel
| By Birel | By Birel | By Birel | By Birel | By Birel | By Birel |
Rail Stroke (F-Stroke) | F1-F2 | mm | 4000-6000 | 4000-6000 | 4000-6000 | 4000-6000 | 4000-6000 | 4000-6000 | 4000-6000 |
Motor Power of Table
|
| kW
| 0,75 x 1
| 1,5 x 1
| 1,5 x 2
| 1,5 x 2
| 1,5 x 2
| 1,5 x 2
| 2,2 x 2
|
Weight |
| kg
| 1400
| 1570
| 2000
| 2030
| 2220
| 2400
| 2630 |
