BPRA - Pipe Rotator For Welding
Leg Support. Stable Rotation. Perfect Welds.

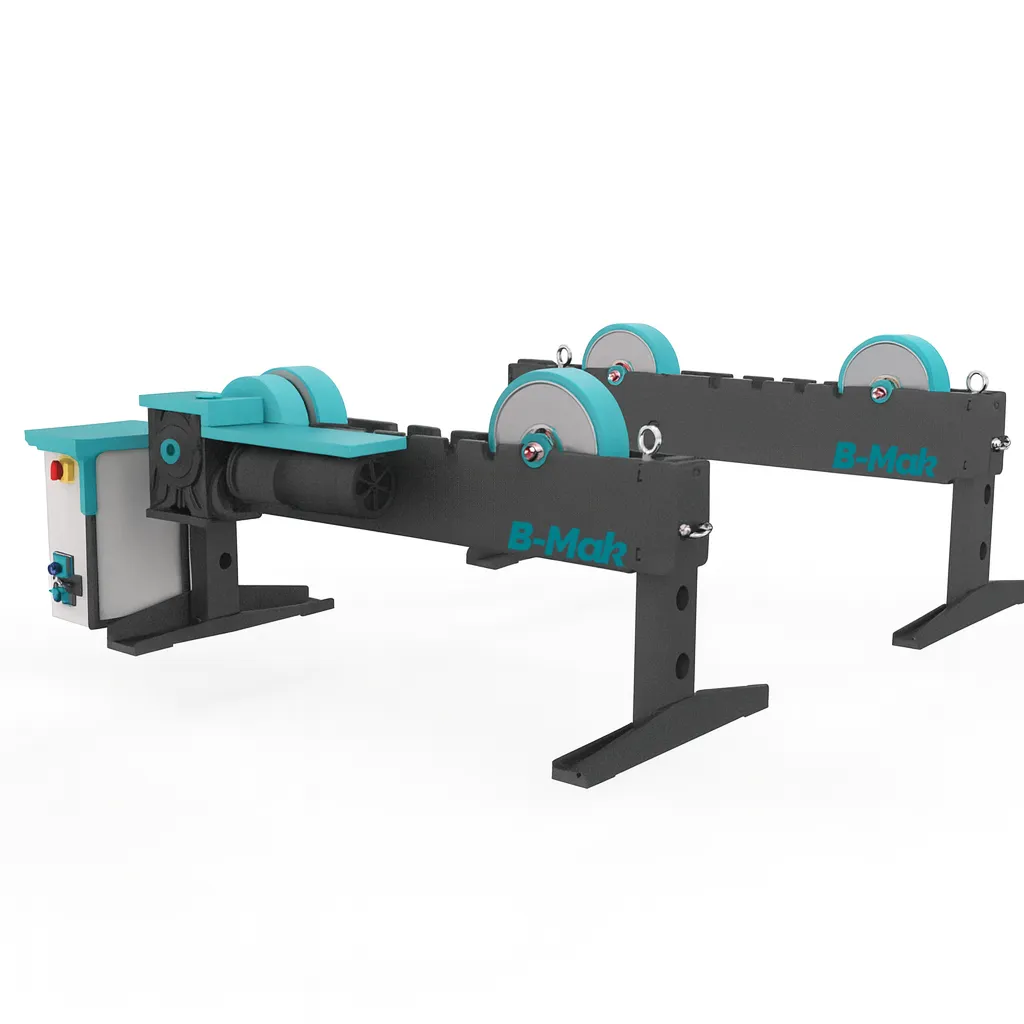

The BPRA
General Features
The BPRA Pipe Rotator with Leg offers an economical and practical solution for circular welding of cylindrical workpieces with variable diameters. Designed for precision, safety, and long-term performance, it delivers smooth, stable rotation and superior weld quality in every application.
Ideal for tanks, pressure vessels, tower tubes, boilers, reactors, depots, fuel barrels, wind power components, petrochemical pipelines, and shipbuilding, the BPRA series is built to perform reliably in demanding industrial environments.
The manual diameter adjustment is performed by positioning the idler rollers on the built-in slots of the chassis and securely fastening them — ensuring perfect contact and balance with the workpiece. Its robust steel-welded construction provides excellent durability and structural stability, keeping the cylindrical part perfectly centered regardless of diameter.
Operators can easily control rotation clockwise (CW) or counterclockwise (CCW) through precise command controls, adjusting speed smoothly to achieve consistent and accurate welds.
By reducing the need for crane handling and manual repositioning, the BPRA dramatically improves workflow efficiency, enhances operator safety, and increases productivity in both manual and automated welding operations.
Optional Control Units
● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● OHC-Overhead Hangable Control
● MP-Master Panel
● WRC – Wireless Remote Control
Standard Features
● Manual Diameter Adjustment Slots on Frame — allow flexible positioning for different workpiece diameters.
● Adjustable Worktable Rotation Speed with digital display on the electrical cabinet for precise monitoring and control.
● High-Quality Polyurethane Rollers — absorb shocks and vibrations to ensure smooth, stable operation.
● 5 m Command Cable for easy operator control.
● 5 m Power Cable — ready for fast installation and convenient setup.
● Brake & Fan-Cooled Asynchronous Motor — delivers powerful, consistent, and reliable performance under continuous duty.
Advantages
● Standard Capacities: BPRA models available in 3 t, 5 t, 8 t, and 10 t capacities — ideal for precise pipe rotation and secure support during welding or assembly.
● Custom Manufacturing: Beyond standard sizes, B-Mak Machinery designs and produces special-capacity models tailored to customer standards and project requirements.
● Flexible Configuration: Each BPRA Pipe Rotator with Leg set consists of two units — one (1) driven and one (1) idler unit. The number of driven and idler units can be increased as needed.

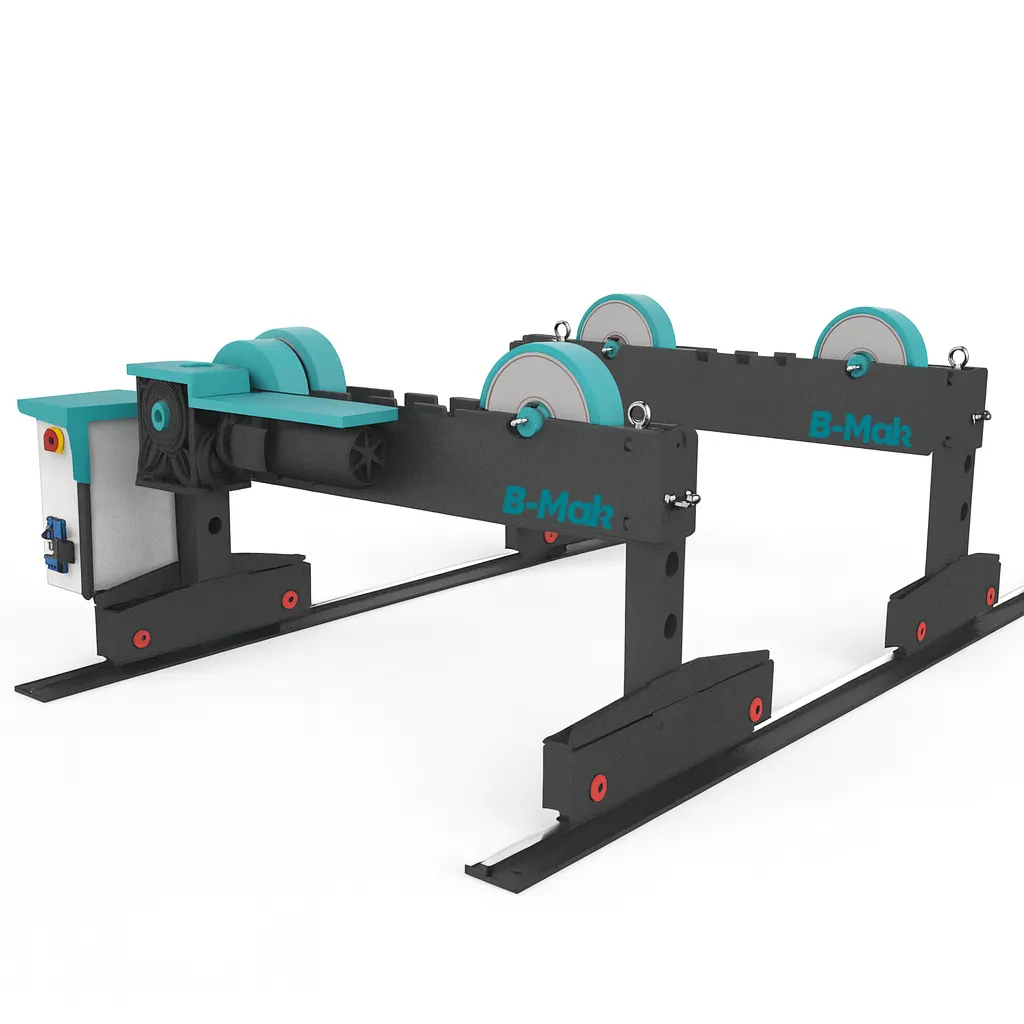

● Optional Rail Movement System: Available manual buggy system allows both units to move smoothly along rails for greater workflow efficiency.

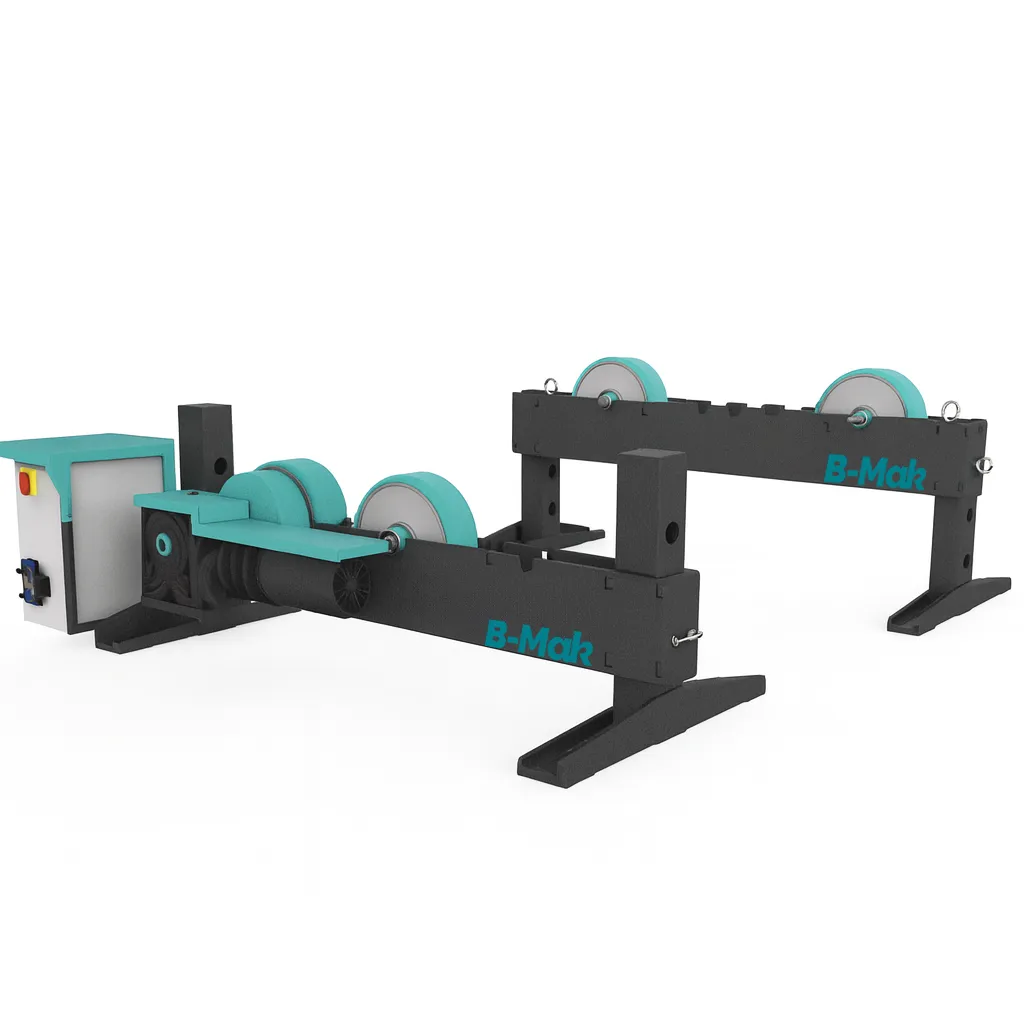

● Adjustable Height Design: Equipped with three (3) manual height levels as standard to optimize alignment and operation performance.
● Built for Reliability: Durable construction and precision components ensure long-term stability and minimal maintenance.

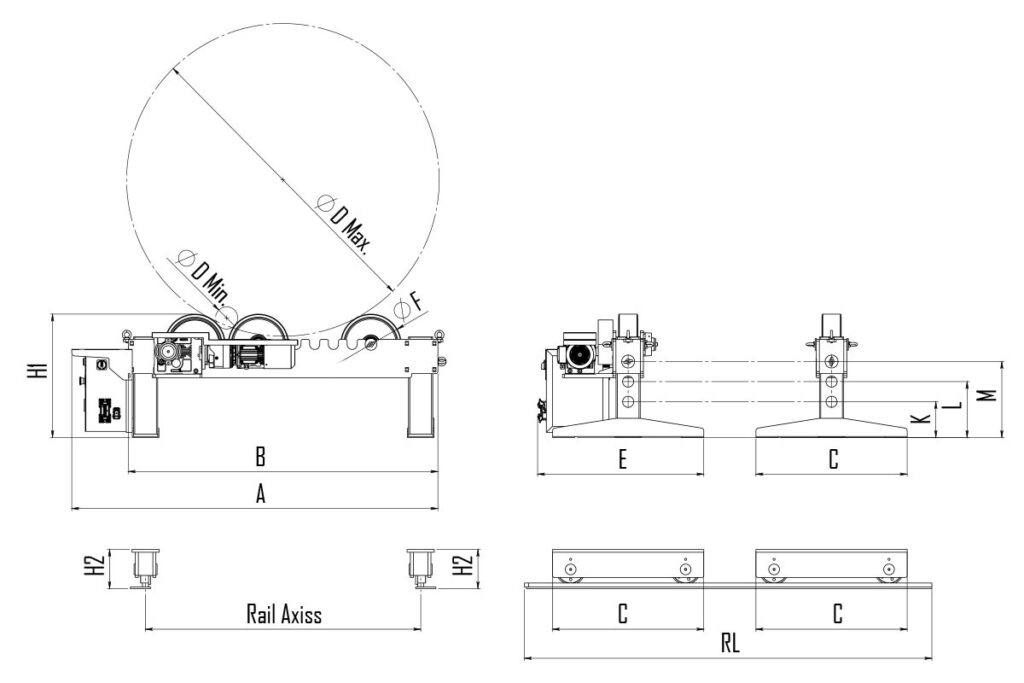

Technical Data
BPRA | Sym | Unit | BPRA-3 | BPRA-5
| BPRA-8
| BPRA-10
|
Capacity |
| ton
| 3
| 5
| 8
| 10
|
Max. Load (Drive Unit) |
| t/unit
| 1,5
| 2,5
| 4
| 5
|
Max. Load (Idler Unit)
|
| t/unit
| 1,5
| 2,5
| 4
| 5
|
No. of Driwen |
| WD | 1WD
| 1WD
| 1WD
| 1WD
|
Rotation Speed |
| mm/min
| 150-1300
| 150-1360
| 150-1210
| 150-1430
|
Diameter Range | Ødmin ØDmax
| mm
| 110-1200
| 110-1200
| 110-1420
| 110-1550
|
Wheel Diameter | ØF | mm
| 230
| 240
| 290
| 300
|
Wheel Material |
|
| PU
| PU
| PU
| PU
|
Length (Drive Unit) | A | mm
| 1625
| 1625
| 1710
| 1815
|
Length (Idler Unit)
| B
| mm
| 1340
| 1340
| 1430
| 1535
|
Width (Drive Unit) | E
| mm | 710 | 720 | 750 | 780 |
Width (Idler Unit)
| C
| mm
| 650
| 650
| 700
| 750
|
Width (Buggy Unit) | C
| mm
| 650
| 650
| 700
| 750
|
Height (Drive-Idler Unit) | H1
| mm
| 570
| 575
| 590
| 610
|
Height (Buggy Unit) | H2
| mm
| 160
| 170
| 185
| 195
|
Rail Axis |
| mm
| 1220
| 1220
| 1280
| 1365
|
Rail Length (Optional) | RL | mm
| 3000
| 3000
| 3000
| 3000
|
Level – 1 | L | mm
| 358
| 358
| 355
| 377
|
Level – 2 | L | mm
| 258
| 258
| 255
| 277
|
Level – 3 | K | mm
| 158
| 158
| 155
| 177
|
Motor Power |
| kW
| 0,25
| 0,25
| 0,37
| 0,37
|
Weight |
| kg
| 290
| 300
| 400
| 450
|
Weight (Including Buggy) |
| kg
| 380
| 400
| 560
| 630 |
