B-Mak introduces ZIM – world-class concrete block machines, now available in North America with local service and support.
ZIM T 1220
Flexible, High-Capacity Pipe Production

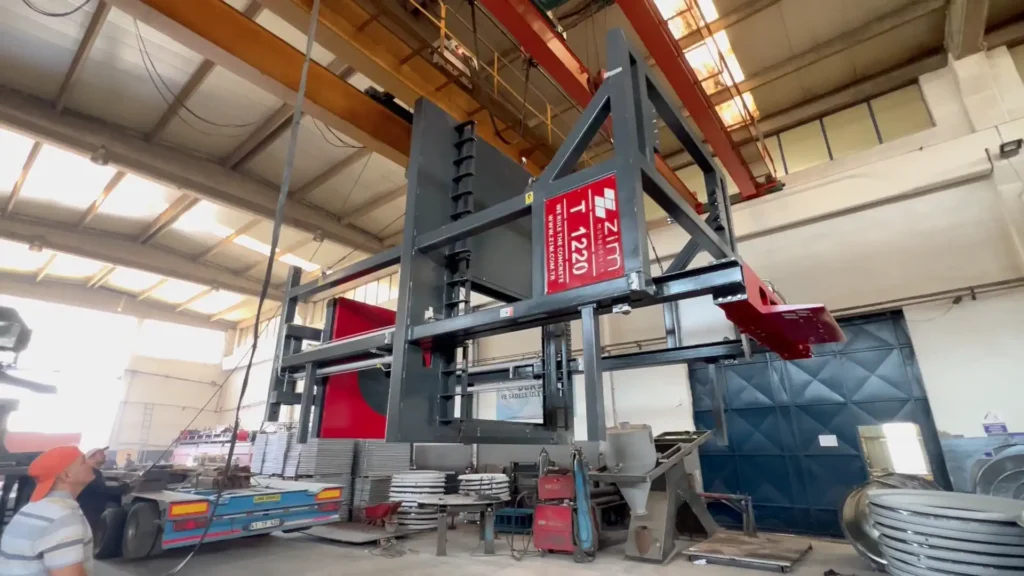

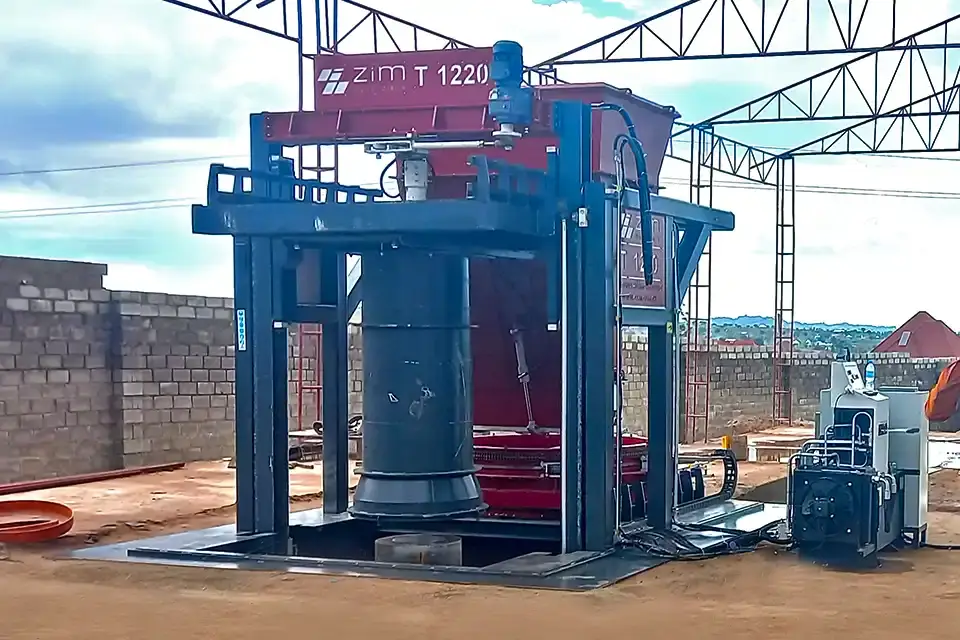

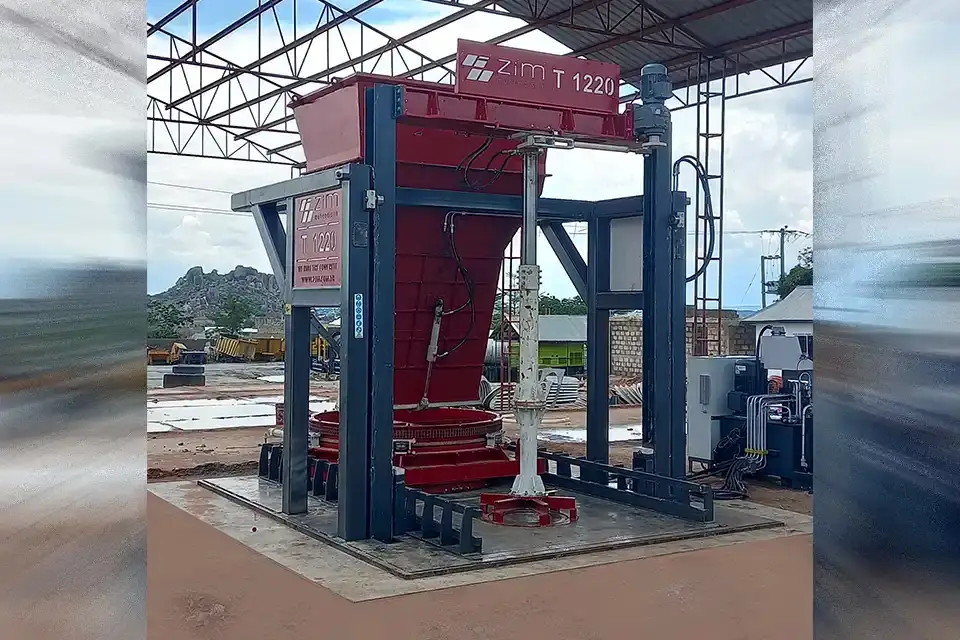

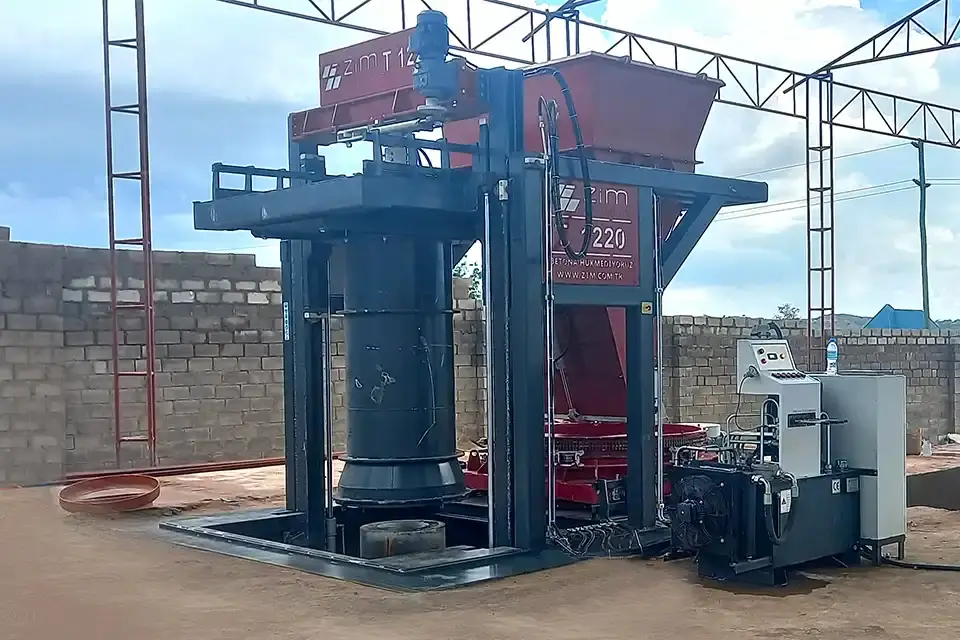

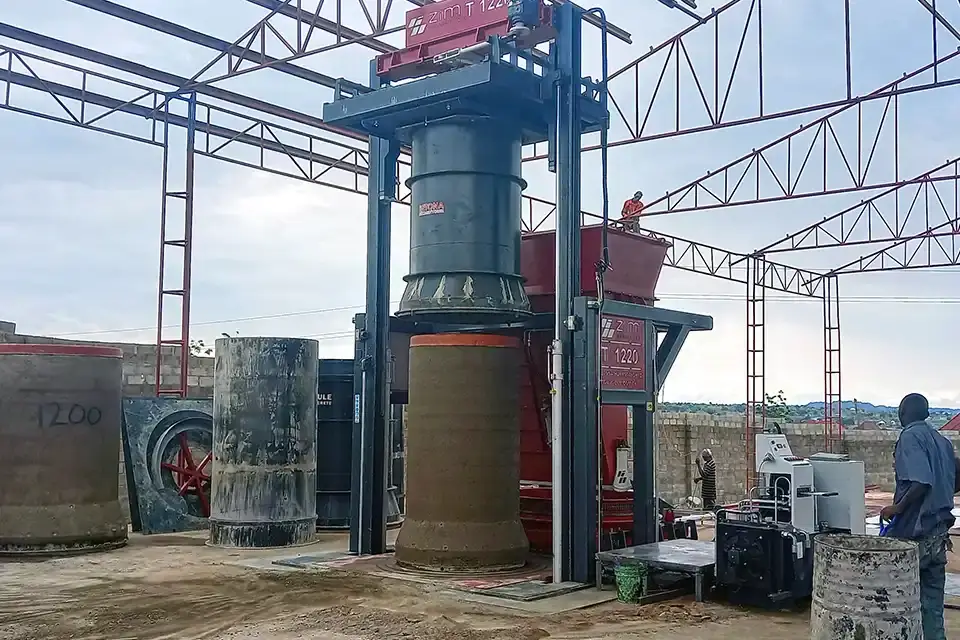

The ZIM T 1220

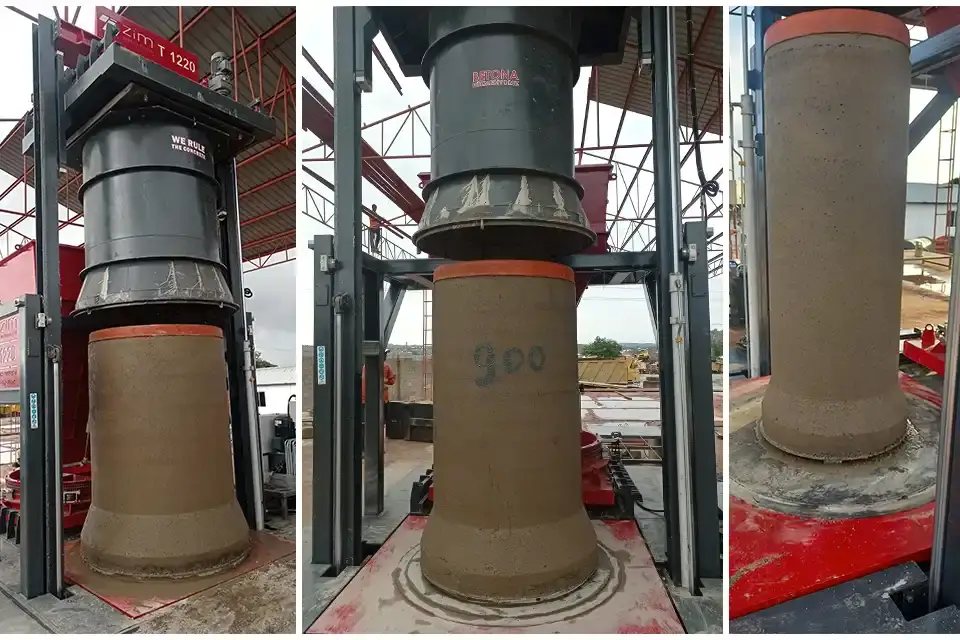

ZIM T 1220 — Flexible, High-Capacity Pipe Production
The ZIM T 1220 is designed for efficient, large-scale concrete pipe production, combining flexibility, durability, and automation. With the ability to produce single, double, or triple pipes per press, it dramatically shortens production cycles and increases output — all while maintaining top quality and low operating costs.
Why ZIM T 1220?
Because it delivers flexibility, speed, and durability, making it the ideal solution for high-volume concrete pipe production.
High-Capacity Output

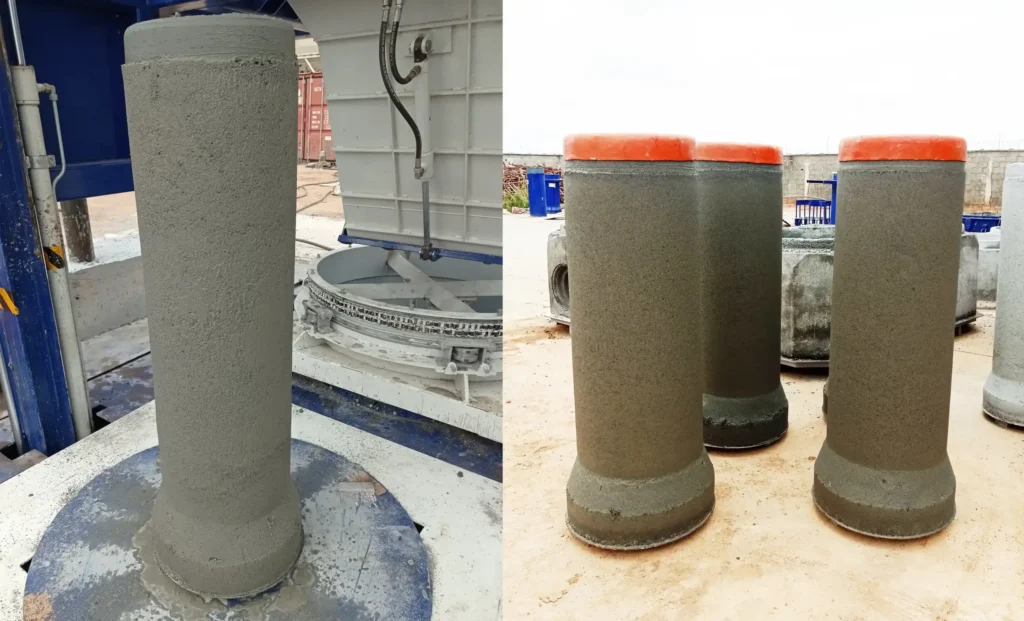

Produces pipes from 300 mm to 1200 mm in diameter and 1000 mm to 2000 mm in height.
Configurable for single, double, or triple pipe production per cycle.
Available in semi-automatic or fully automatic models, powered by SIEMENS PLC control for precision and reliability.
Smart Features for Faster Production
Forklift transport system streamlines handling and shortens cycle times.

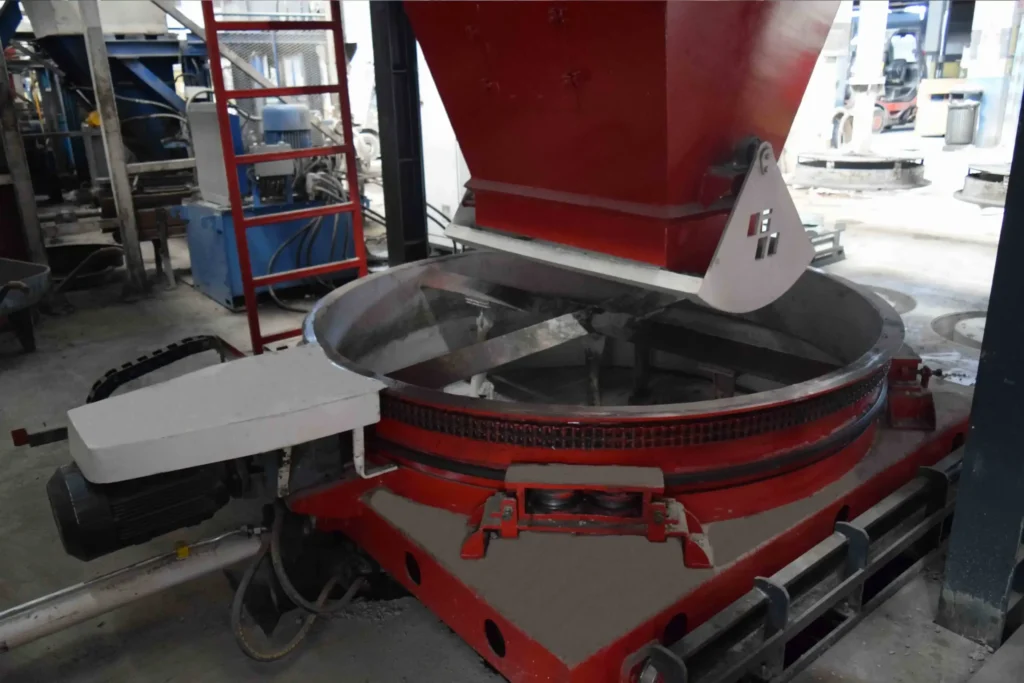

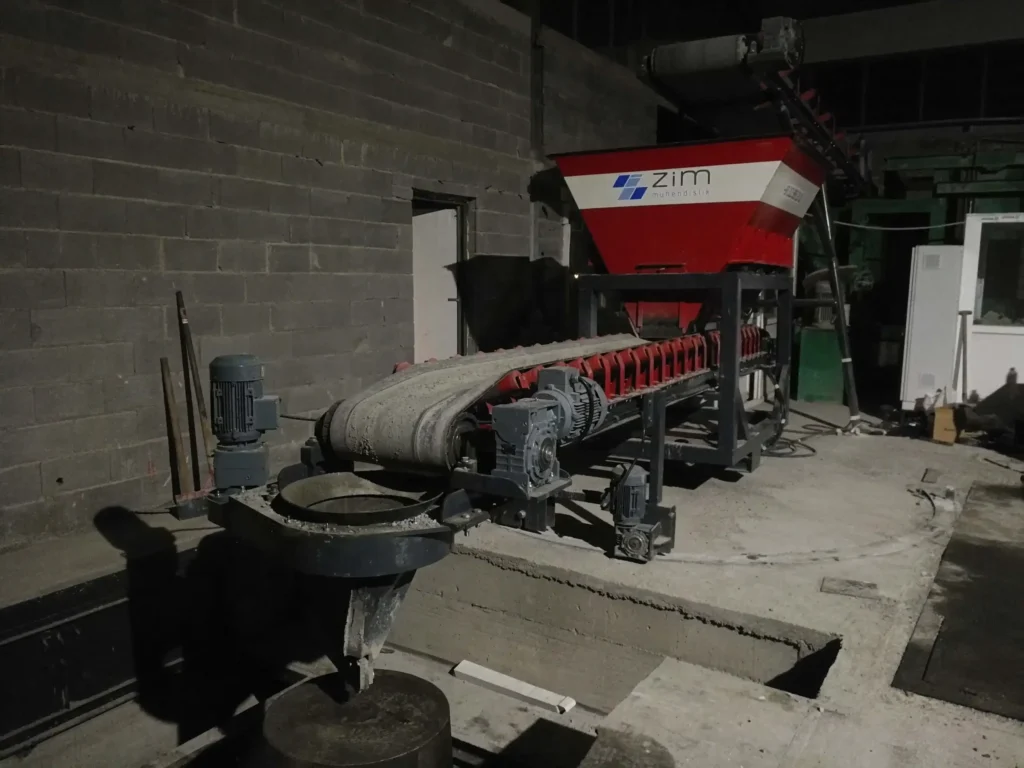

Mortar bunker and filling cart with inner filling system ensures fast, uniform distribution.
Frequency-controlled vibration system allows easy adjustments from the operator panel — no mechanical setup needed.
Proven Reliability & Durability
Oil-cooled vibration unit with sensor-controlled circulation guarantees long service life and stable performance.
Heavy-duty chassis engineered for decades of error-free operation.

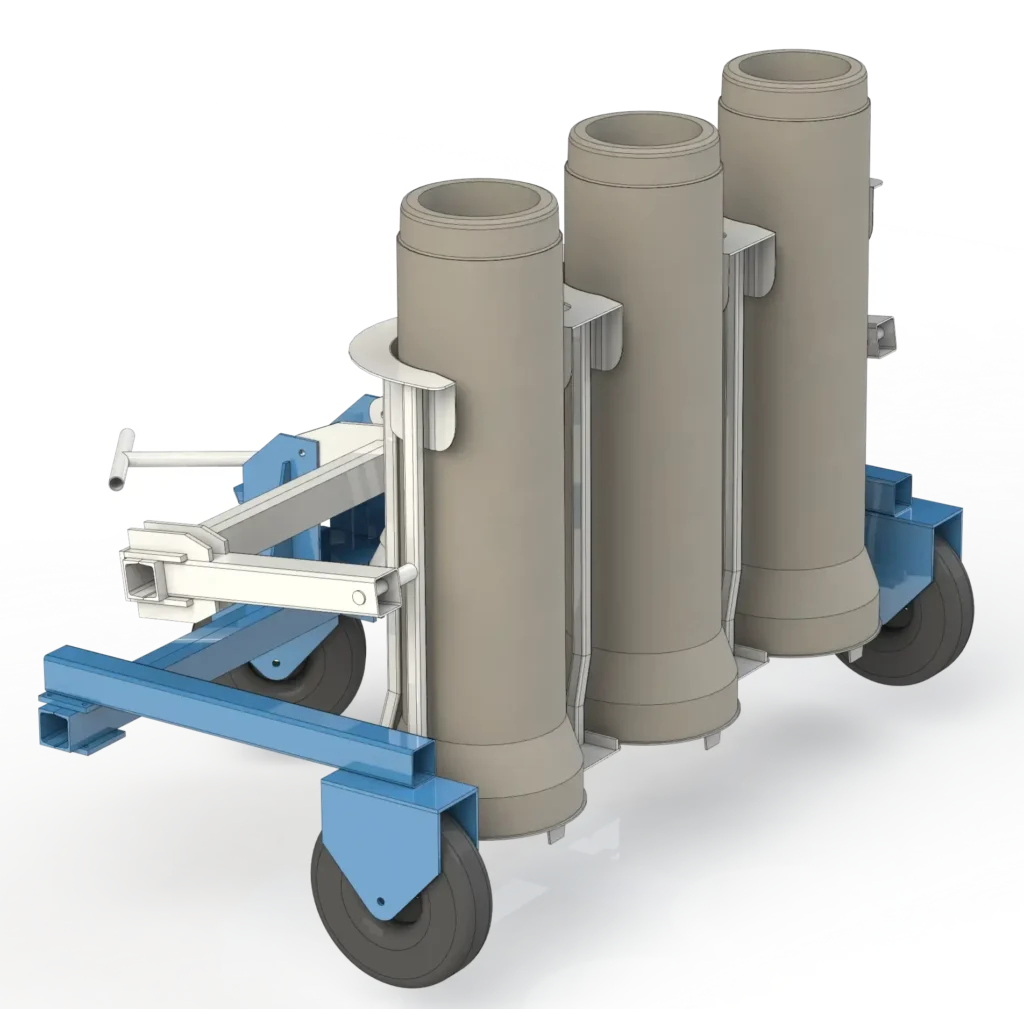

Products can be moved easily to the drying area with carts or forklifts, keeping the workflow continuous.
Technical Specifications
| Concrete Pipe Dimensions | 300mm – 1200mm |
| Concrete Pipe Length | 1500mm – 2000mm – 2500mm |
| Vibration Motor Power | 3×7.5kW |
| Vibrator Type | Special type with liquid lubricationı |

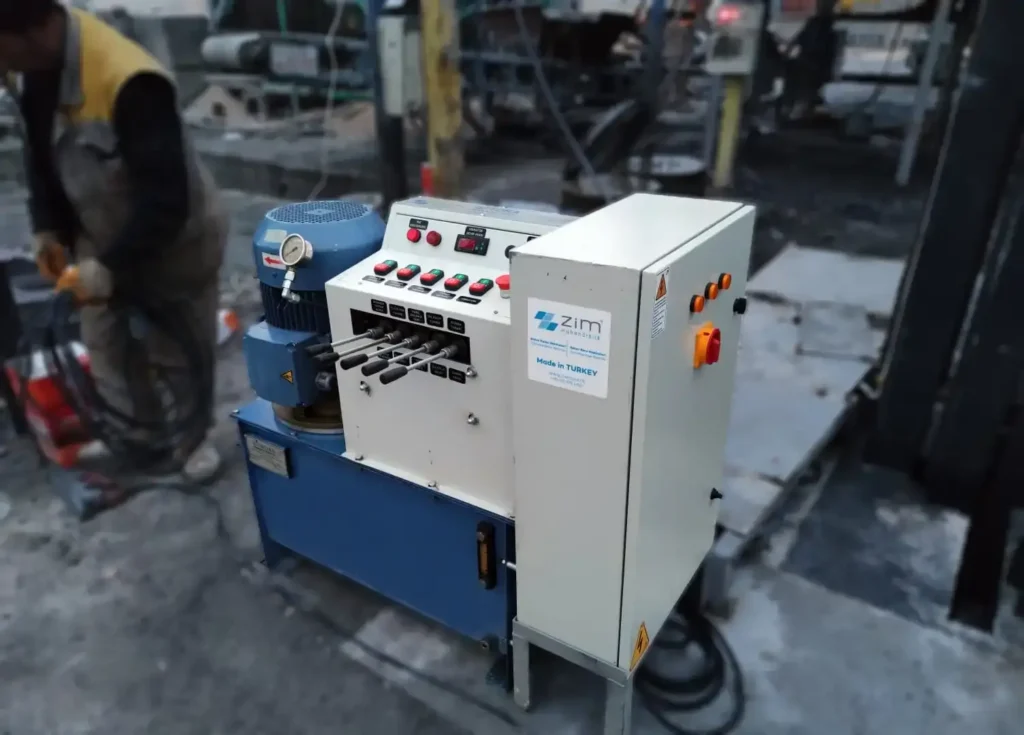

| Hydraulic Motor Power | 11kW |
| Hydraulic Cooling system | Cooling with air |
| Command system | Manual – Electrical |
| Volume of Motrar Bunker | 2m³ |
| Motrar fillin Motor Power | 5.5kW |
| Vibrator Lubrication system | 3x1kW |
Production Capacity
| SINGLE PRESS PRODUCTION AMOUNT
| Ø300 mm h:2000mm Concrete Pipe | 3 Pcs |
| Ø400 mm h:2000mm Concrete Pipe | 2 Pcs | |
| Ø500 mm h:2000mm Concrete Pipe | 2 Pcs | |
| Ø600 mm h:2000mm Concrete Pipe | 2 Pcs | |
| Ø800 mm h:2000mm Concrete Pipe | 1 Pcs | |
| Ø1000 mm h:2000mm Concrete Pipe | 1 Pcs | |
| Ø1200 mm h:2000mm Concrete Pipe | 1 Pcs |
DAILY PRODUCTION AMOUNT (8 HOURS) | Ø300 mm h:2000mm Concrete Pipe | 375 Pcs |
| Ø400 mm h:2000mm Concrete Pipe | 250 Pcs | |
| Ø500 mm h:2000mm Concrete Pipe | 200 Pcs | |
| Ø600 mm h:2000mm Concrete Pipe | 160 Pcs | |
| Ø800 mm h:2000mm Concrete Pipe | 50 Pcs | |
| Ø1000 mm h:2000mm Concrete Pipe | 40 Pcs | |
| Ø1200 mm h:2000mm Concrete Pipe | 32 Pcs |
Equipment

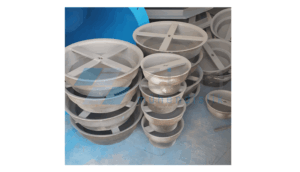

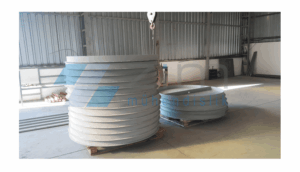

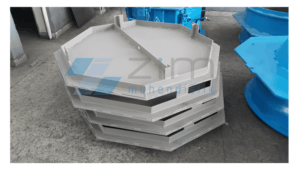

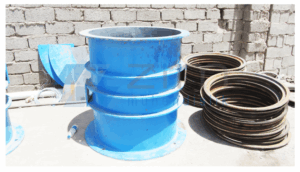

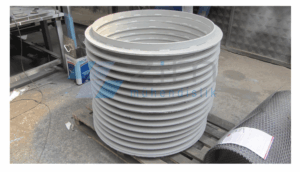

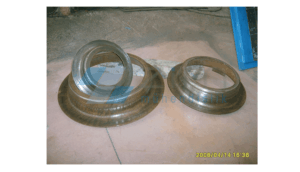

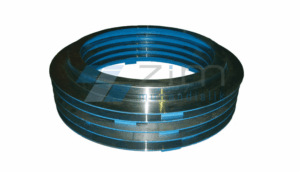

Production Pallet

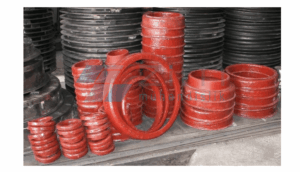

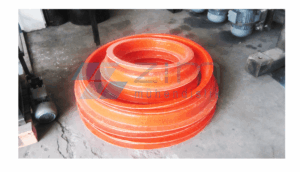

Fiber Heading

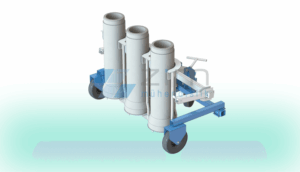

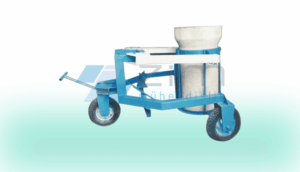

Hydraulic Carriage Cart

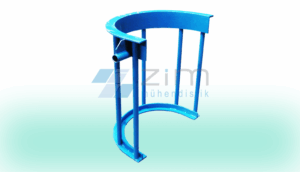

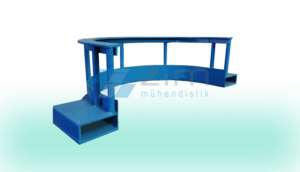

Carriage Basket

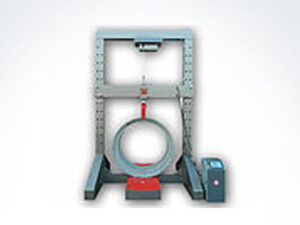

Testing Press

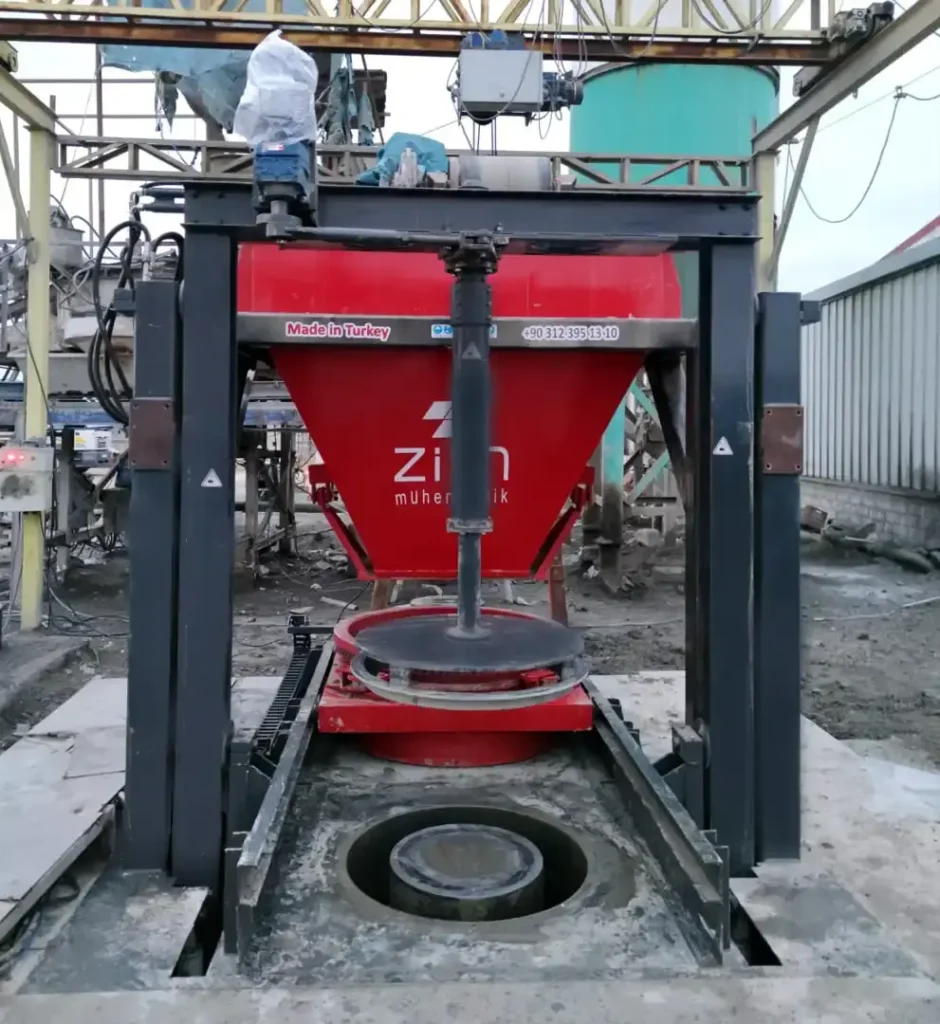

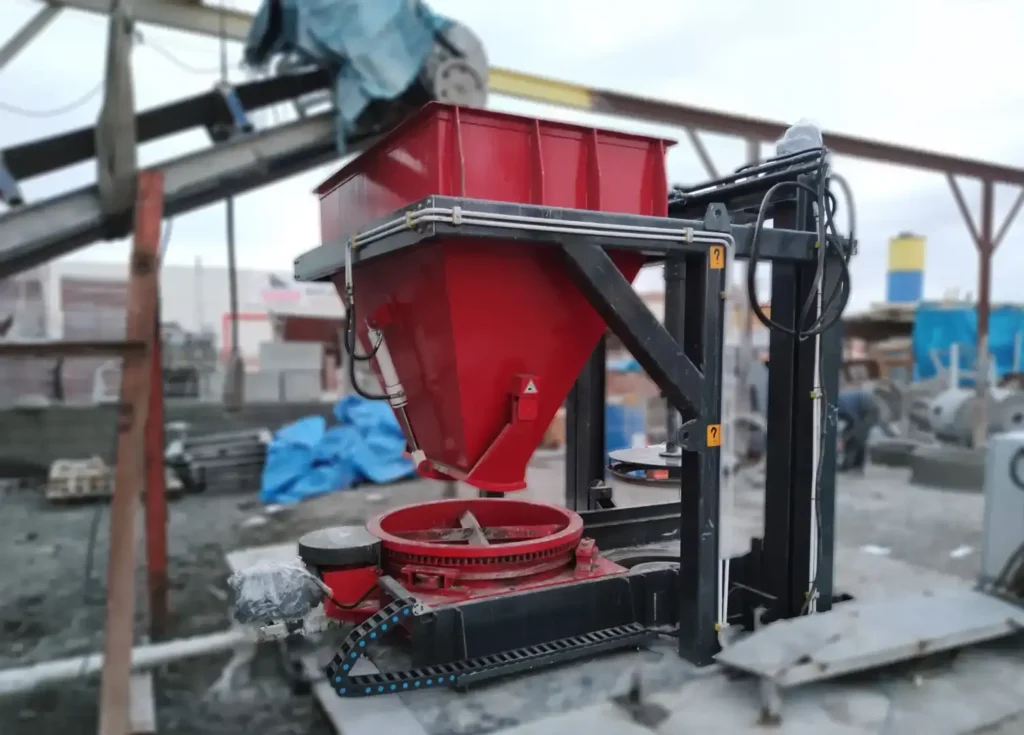

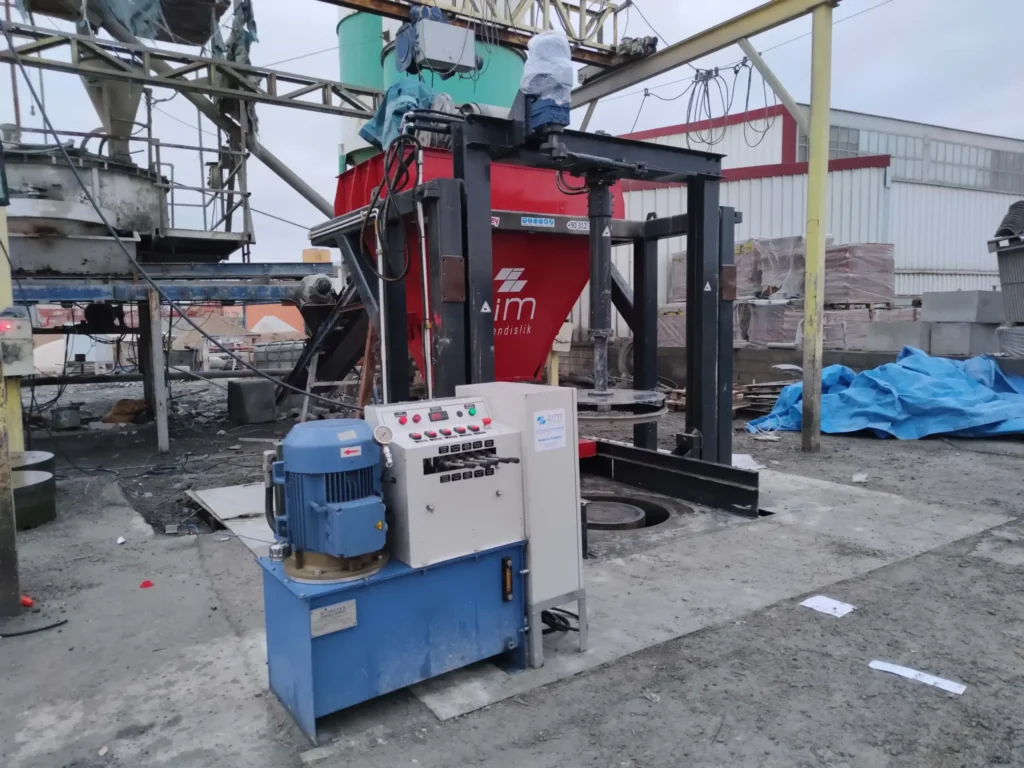

ZIM T 815
Compact machine for small pipes 150–800 mm, with single, double, or triple pipe production per cycle.

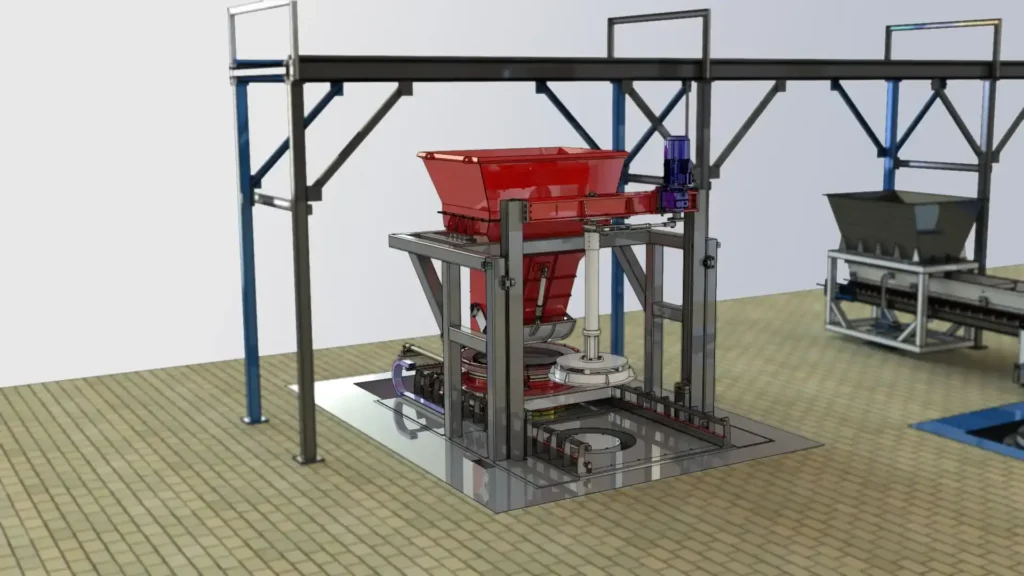

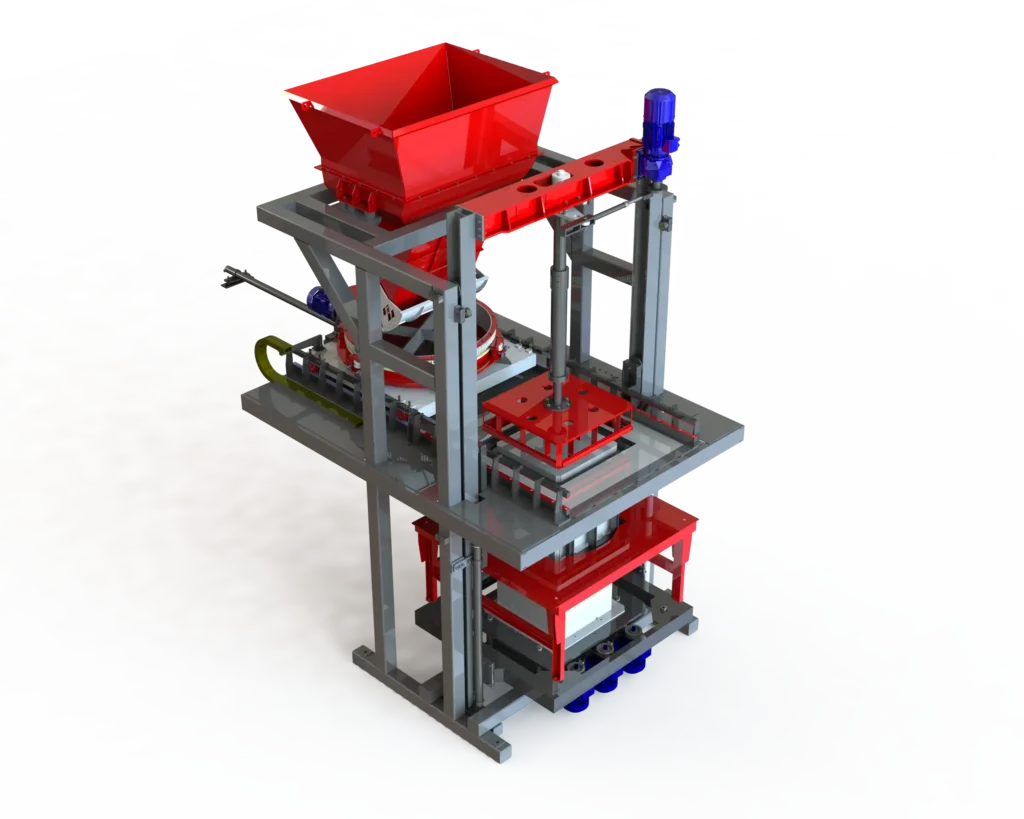

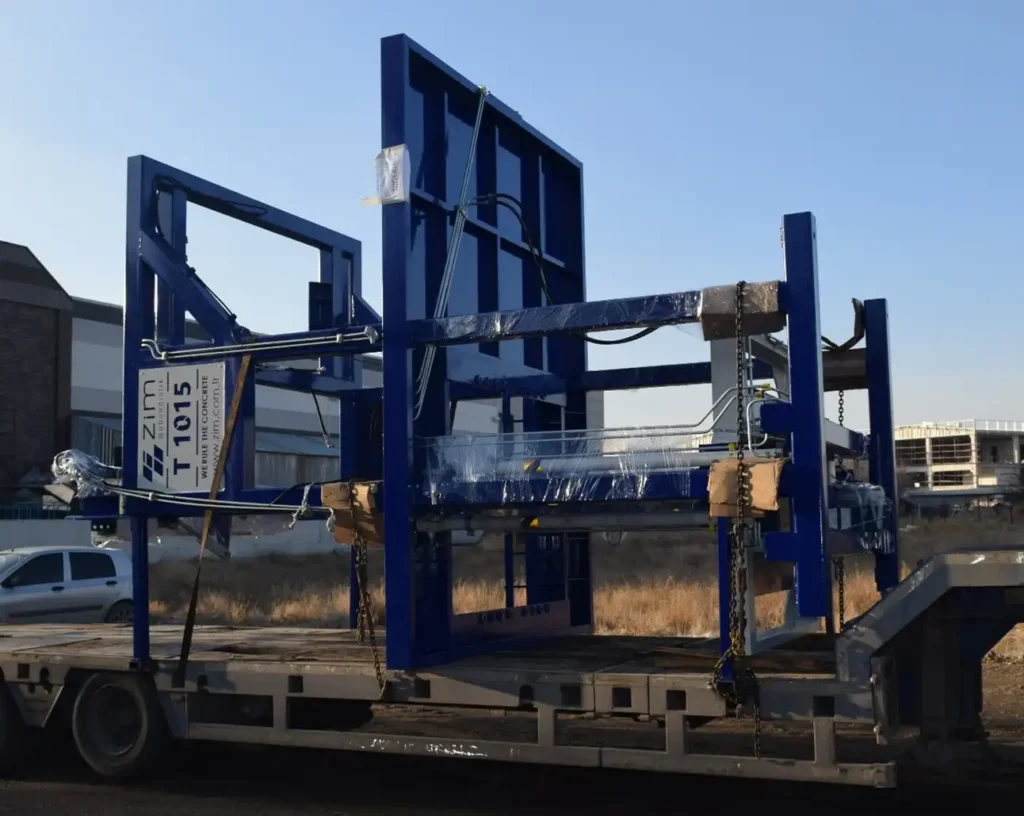

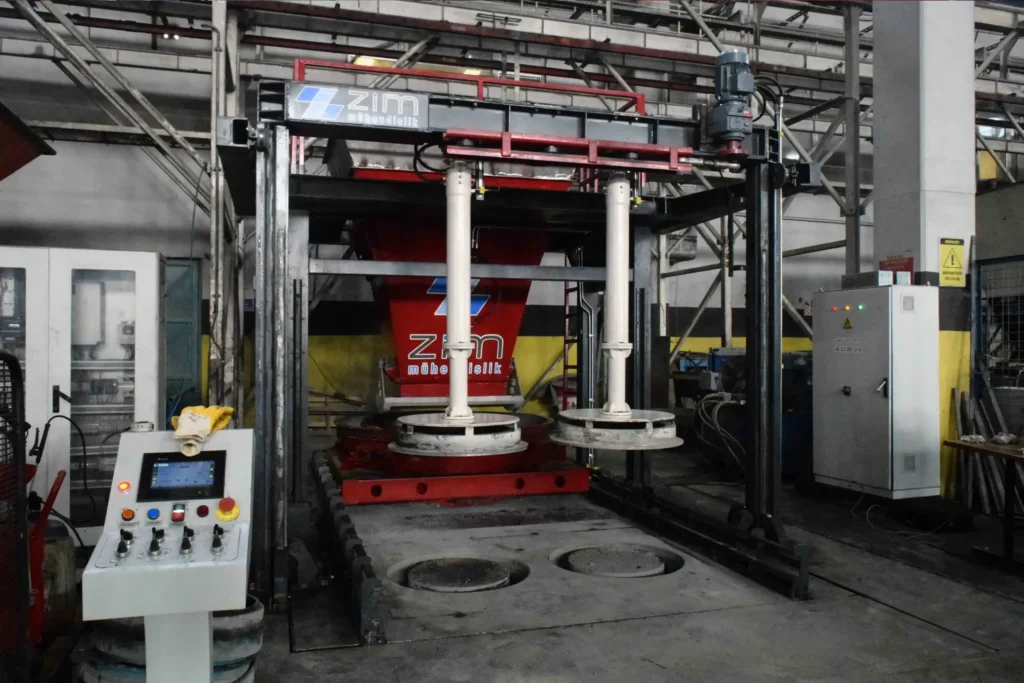

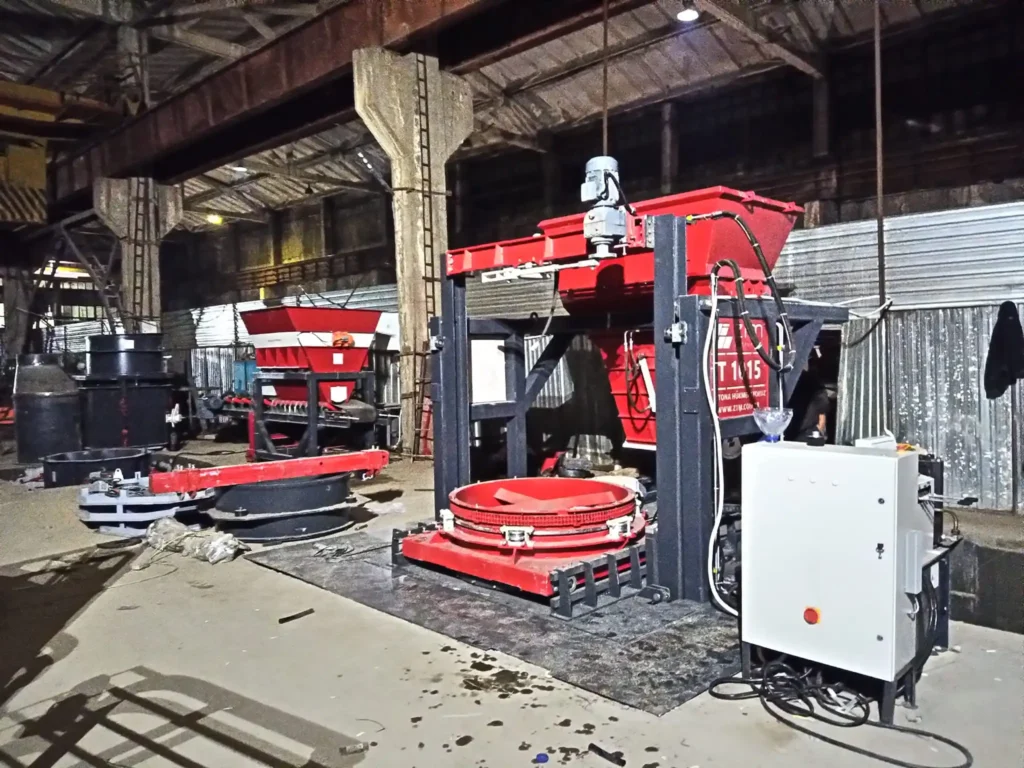

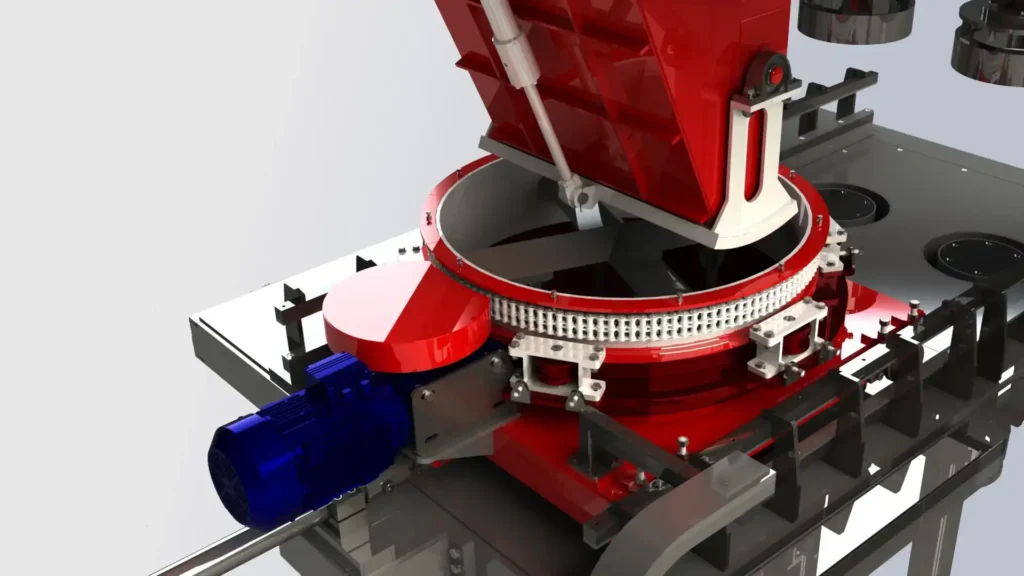

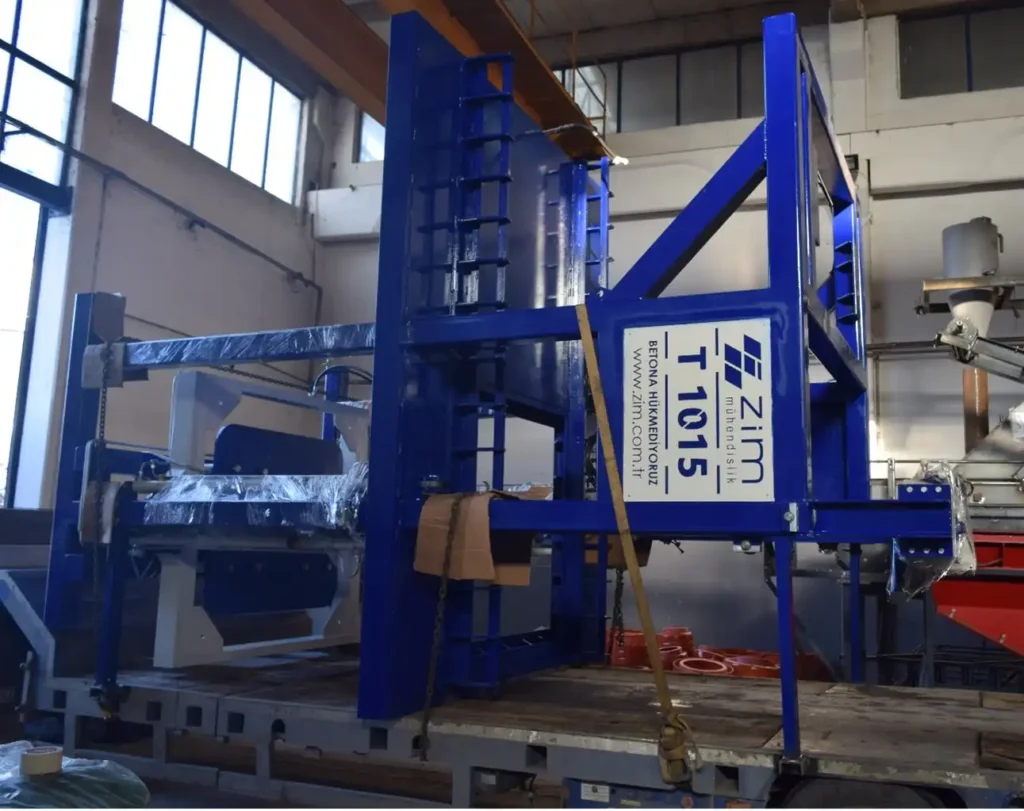

ZIM T 1015
Efficient machine for manholes, conics, and rings up to 1000 mm diameter / 1500 mm height.
ZIM T 1220
Flexible pipe production machine (300–1200 mm, up to 2000 mm height) with multi-pipe cycles for maximum output.

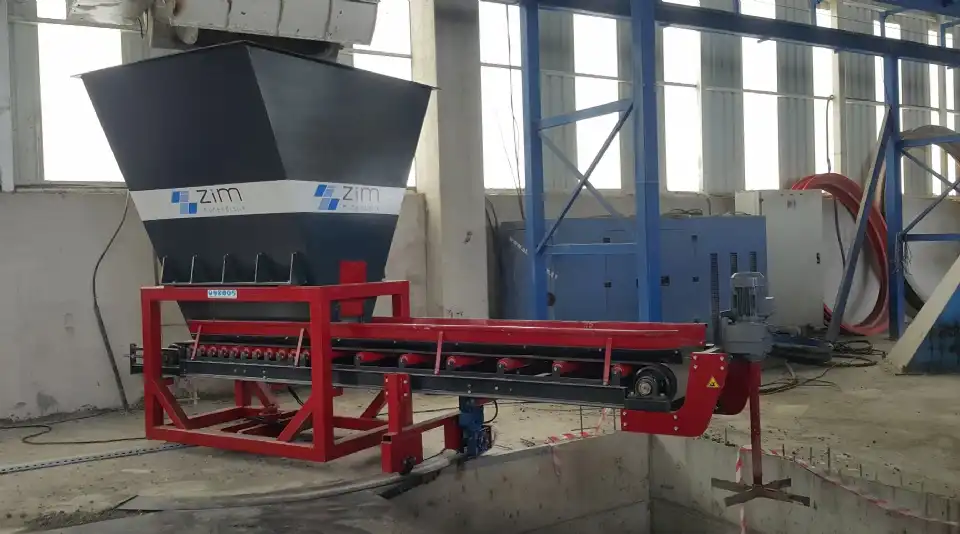

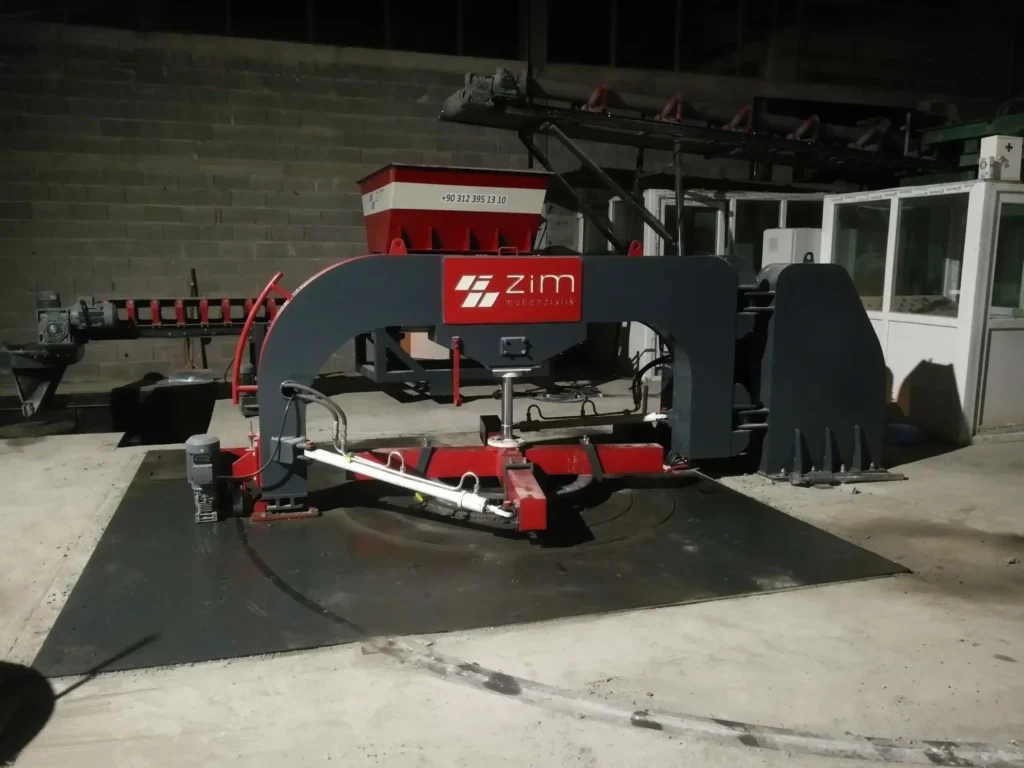

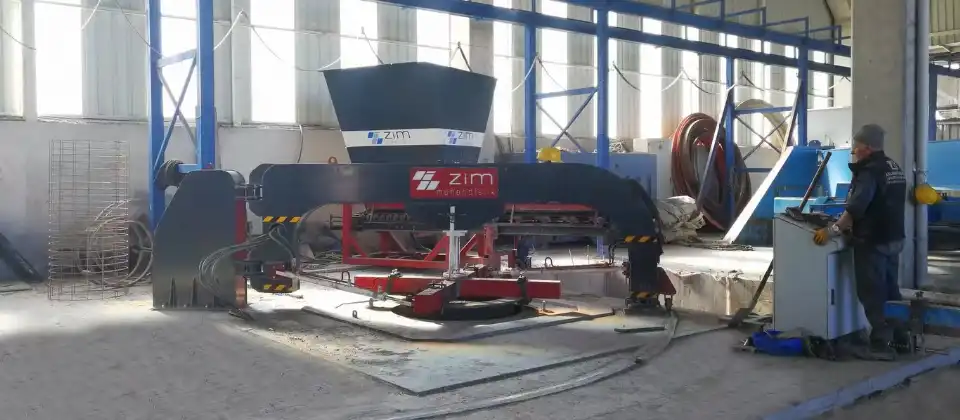

ZIM A 1210
