BLP (3AX) - L Type Welding Positioner

Heavy-Duty Power. 3-Axis Precision.

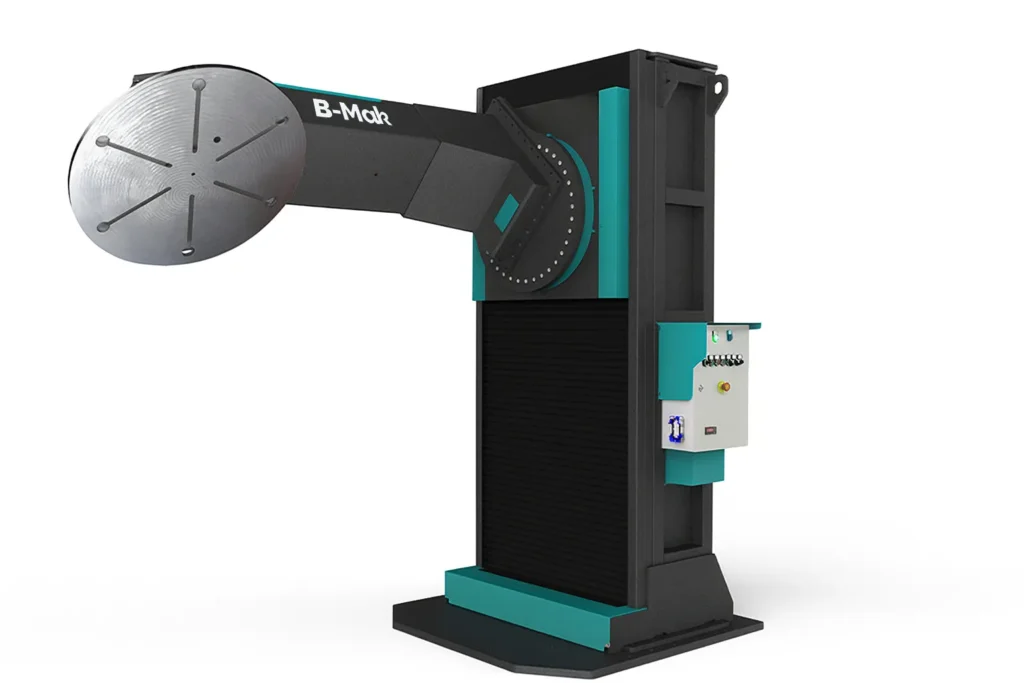

The BLP (3AX)

General Features

The BLP-3AX is a high-performance, heavy-duty L-type welding positioner engineered for maximum strength, precision, and control. Designed to handle workpieces of any geometry within its capacity, it enables 360° positioning and creates perfect welding edges for superior results in every application.
With its 3-axis configuration, the BLP-3AX ensures safe, stable positioning even for asymmetrical or top-heavy workpieces, reducing the risk of overturning and ensuring operator safety.

By eliminating the need for crane operations such as manual part lifting and rotation, the BLP-3AX dramatically reduces production downtime, allowing operators to work more efficiently and focus on weld quality.
Built on a robust structure with smooth, precise motion control, the BLP-3AX offers comfortable operation, enhanced ergonomics, and exceptional repeatability. Operators can easily rotate the workpiece around its central axis clockwise (CW) or counterclockwise (CCW) at adjustable speeds through the intuitive command control system.

Optional Control Units

● T-SE-Round Worktable T-Side Entry Grooved Thick Table Plate
● MC-3-Jaw Manual Chuck
● OC-T- Octagonal Welding Table
● BGR-3-Jaw Manual Pipe Gripper
● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● OHC-Overhead Hangable Control
● WRC – Wireless Remote Control
● SQ-T-Square Table
● PLC-PLC Control System with HMI Display

Standard Features

● 360° Worktable Rotation — full flexibility for precision welding at any angle.
● Durable Round Worktable with T-Slots — designed for quick and adaptable workpiece setup.
● Vertical Hydraulic Lifting — integrated as standard for smooth and controlled positioning.
● Adjustable Rotation Speed for fine-tuned operation and consistent weld quality.
● Digital Speed Display located on the electrical cabinet for real-time monitoring.
● 5 m Command Cable + 5 m Power Cable — ready for plug-and-play use.
● Brake & Fan-Cooled Motor ensures stable torque and reliable continuous duty
● Integrated Welding Arc Group for seamless welding control.
● Warning Light System enhances operator safety and visibility during operation.

Advantages

● Wide Range of Capacities: Available in 1.5 t, 3 t, 5 t, 7.5 t, and 10 t models — covering all mid to heavy-duty welding needs.
● Optional T-Slot Worktable: Enables fast, secure connection of diverse workpieces.
● High-Performance Drive System: Equipped with a brake and forced fan-cooled motor for maximum efficiency and endurance.
● Expandable Options: Welding Arc Group available to match your welding process requirements.
● Custom-Built Solutions: Beyond standard capacities, B-Mak Machinery offers full customization to meet your specific production standards and project demands.

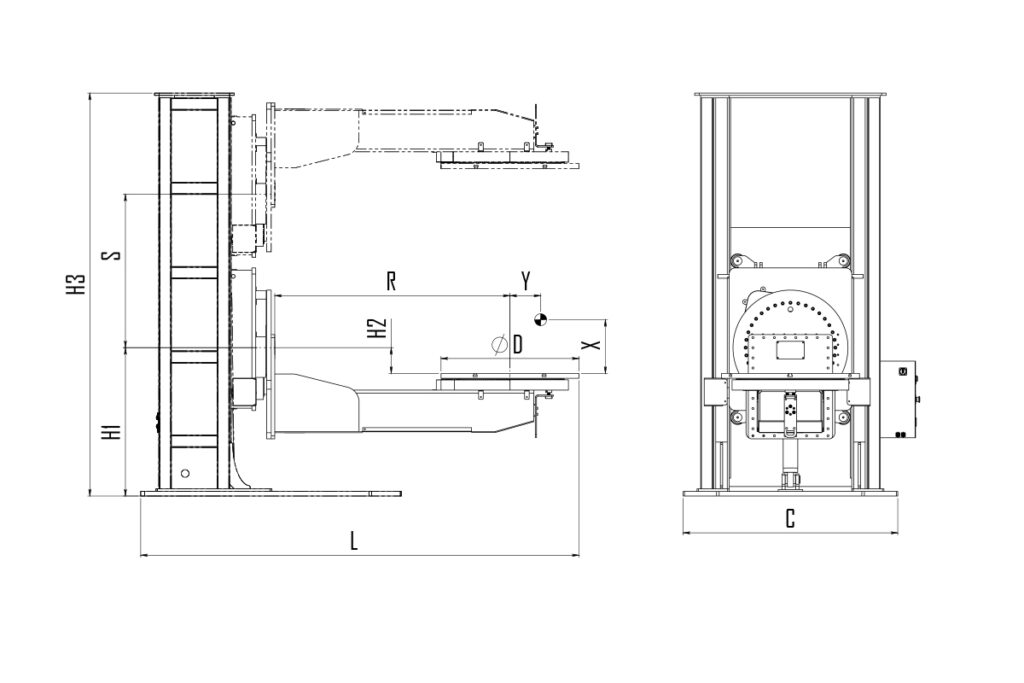

Technical Data

BLP-3AX	Sym	Unit	BLP 1,5 – 3AX	BLP 3 – 3AX	BLP 5 – 3AX	BLP 7,5 – 3AX	BLP 10 – 3AX
Loading Capacity		kg	1500	3000	5000	7500	10000
Lifting Stroke	S	mm	1000	1100	1100	1200	1300
Working Radius	R	mm	1300	1600	1700	1850	2000
Offset Distance	X-Y	mm	300-150	300-150	450-150	450-150	450-150
Table Diameter	ØD	mm	850	1000	1150	1250	1350
Table Torque		Nm	2260	4550	7500	12050	15000
Table Speed		rpm	0,2-1,4	0,2-1	0,15-0,78	0,05-0,50	0,1-0,5
Tilt Torque		Nm	3340	6900	14750	19300	24700
Tilt Speed		rpm	0,80	0,55	0.55	0,45	0,45
Lifting Speed		m/min	0.96	0,92	0.67	0,65	0,50
Max. Welding Current	A	mm	700	700	1000	1000	1000
Rotating Center Height	H1	mm	850	1050	1130	1200	1300
Plate Rotating Center Difference	H2	mm	100	100	230	260	280
Total Height	H3	mm	2720	2900	2960	3250	3480
Total Length	L	mm	2750	3300	3350	3780	4200
Total Width	C	mm	1380	1500	1740	1850	1920
Motor Power of Table		kW	0,55	0,75	1,1	1,1	1,5
Motor Power of Tilting		kW	0,55	0,75	1,5	1,5	1,5 x 2
Motor Power of Lifting		kW	1,1	1,5	1.5	3	3
