Mini BCP 020 D (2AX)-Welding Positioner
Compact. Dual-Axis. Perfectly Precise.

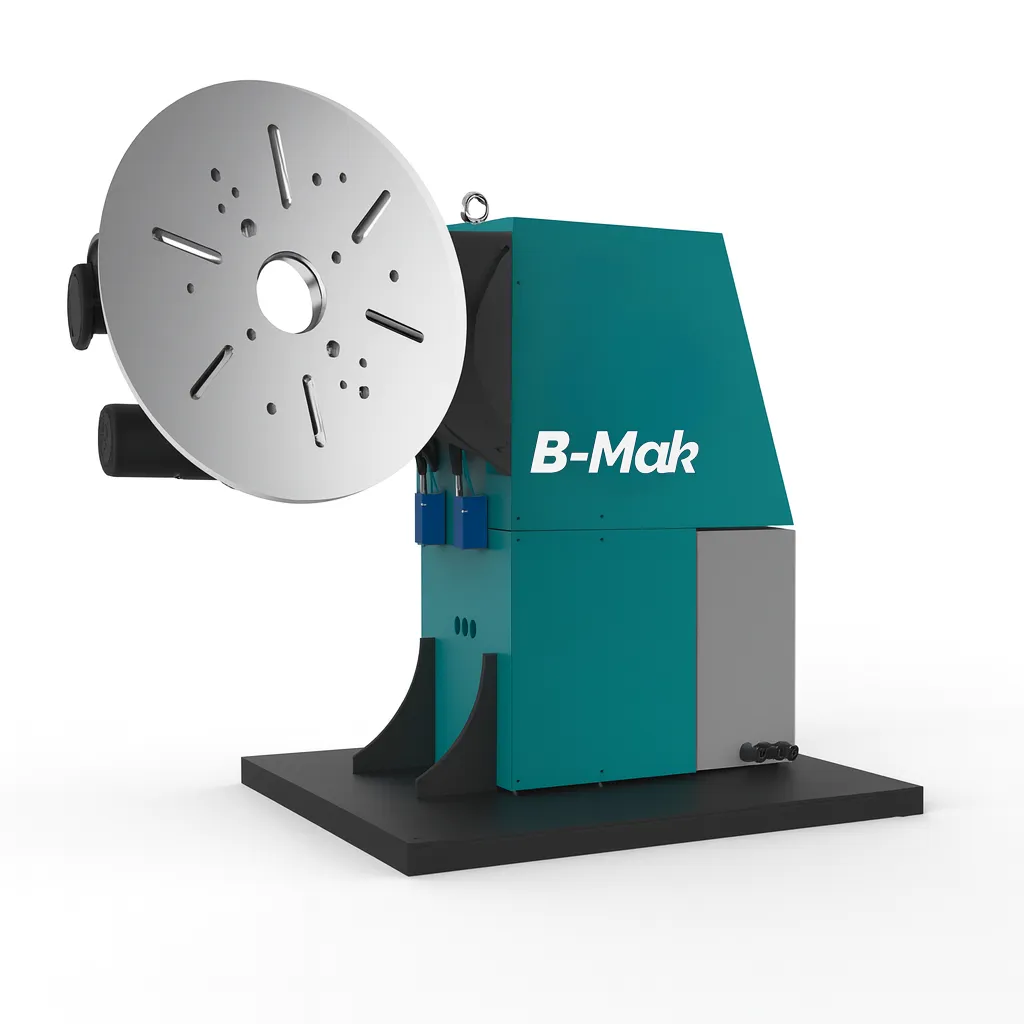

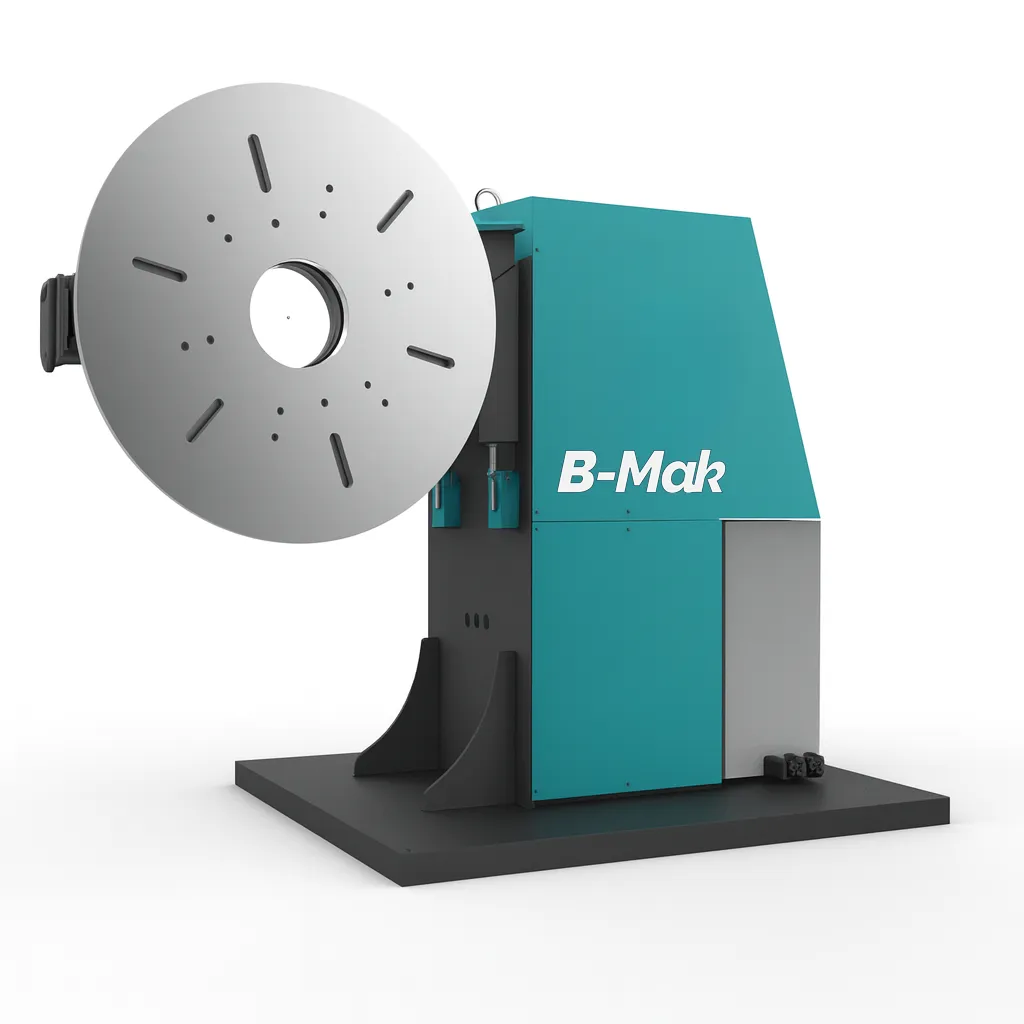

The Mini BCP 020 D (2AX)
General Features
The BCP Mini 020 D is a compact and powerful conventional welding positioner, engineered to provide precise worktable rotation and smooth angular tilting for superior welding accuracy in a smaller footprint.
Built in the most efficient and stable configuration, it offers full 360° positioning capability, allowing operators to achieve the ideal welding edge regardless of the workpiece geometry. Despite its size, the Mini 020 D features robust construction and a reinforced protective system, ensuring long-term reliability and operator safety. For secure handling of heavier parts, it should be anchored to the facility floor.
The system is composed of a rigid body, high-performance motor, gear-driven rotation and tilting systems, electric control panel, and a remote operator control for smooth, effortless operation. The gear transmission system ensures consistent motion and precise control at any speed.
The T-Side Entry grooved worktable allows for quick and easy clamping, while an optional T-Grooved thick-plate worktable can be provided for heavier or customized applications.
Optional Control Units
● T-SE-Round Worktable T-Side Entry Grooved Thick Table Plate
● MC-3-Jaw Manual Chuck
● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● SFP-Single Foot Pedal (3m)
● OHC-Overhead Hangable Control
● WRC – Wireless Remote Control
● PLC-PLC Control System with HMI Display
Standard Features
● Precision Round Worktable with T-Slots — enables quick, secure, and flexible workpiece setup.
● Adjustable Worktable Rotation Speed for precise control and consistent welding quality.
● Digital Speed Display on the electrical cabinet for accurate, real-time monitoring.
● Mechanical Gear Tilting System — delivers smooth, stable angle adjustment.
● Integrated Limit Switches to ensure safe movement and prevent overtravel.
● 3 m Command Cable with Hand Control Unit for convenient operator control.
● 3 m Power Cable for easy connection and positioning.
● Fan-Cooled Motor — designed for reliable, continuous operation.
● Integrated Welding Arc Group for seamless welding performance.
Advantages
● Compact Power Range: Standard Mini-BCP models available in 50 kg, 100 kg, and 200 kg capacities — ideal for small and precise welding applications.
● Durable Drive System: Motor equipped with brake and forced fan cooling for stability and long service life.
● Optional Welding Arc Group available for full welding process integration.
Technical Data
Mini-BCP 020 | Sym | Unit | Mini-BCP 020
|
Loading Capacity |
| kg
| 200
|
Rotation Speed | rpm
| 0,22-2,2
| |
Max. Rotational Torque |
| Nm | 300 |
Tilting Angle |
| deg
| 90-0-90
|
Tilting Torque |
| Nm
| 685
|
Max.Welding Current |
| Amp | 400 |
Offset Distance | X-Y | mm
| 150 – 150
|
Work Plate Diameter | ØD
| mm
| 600
|
Hollow Shaft | ØDi | mm
| 100 |
Hollow Shaft Up to Depth |
| mm
| 60 |

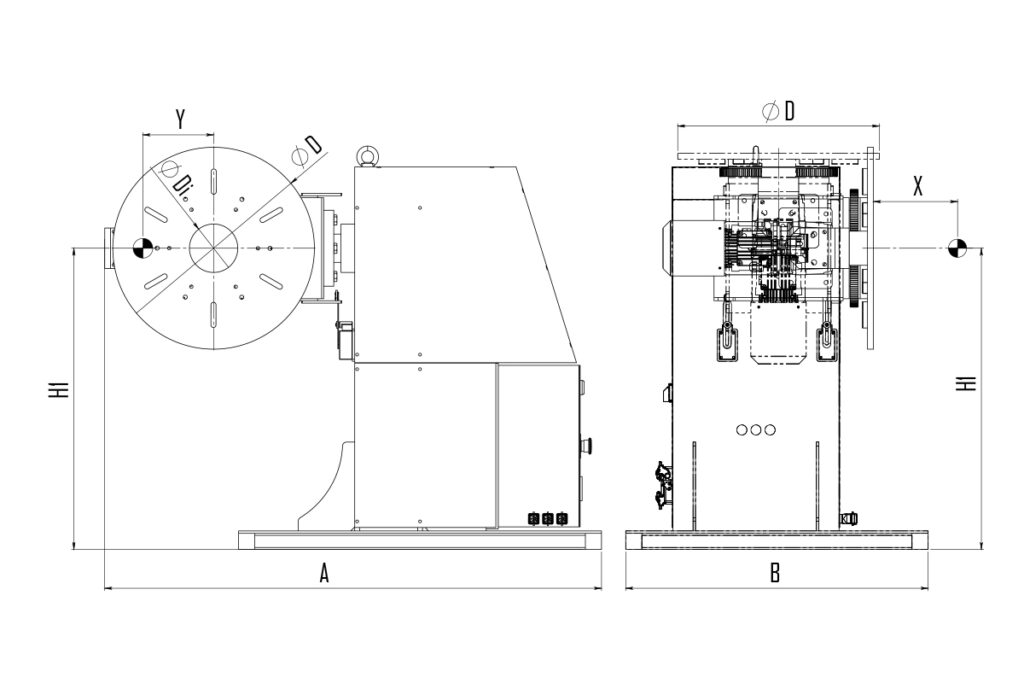

Height (Table Vertical) | H1
| mm
| 750
|
Height (Table Parallel) | H2 | mm | 1020 |
Length | A
| mm
| 1240
|
Width | B
| mm
| 750
|
Motor Power of Table |
| kW
| 0,25
|
Tilting
|
| kW
| 0,25
|
Weight
|
| kg
| 350 |
