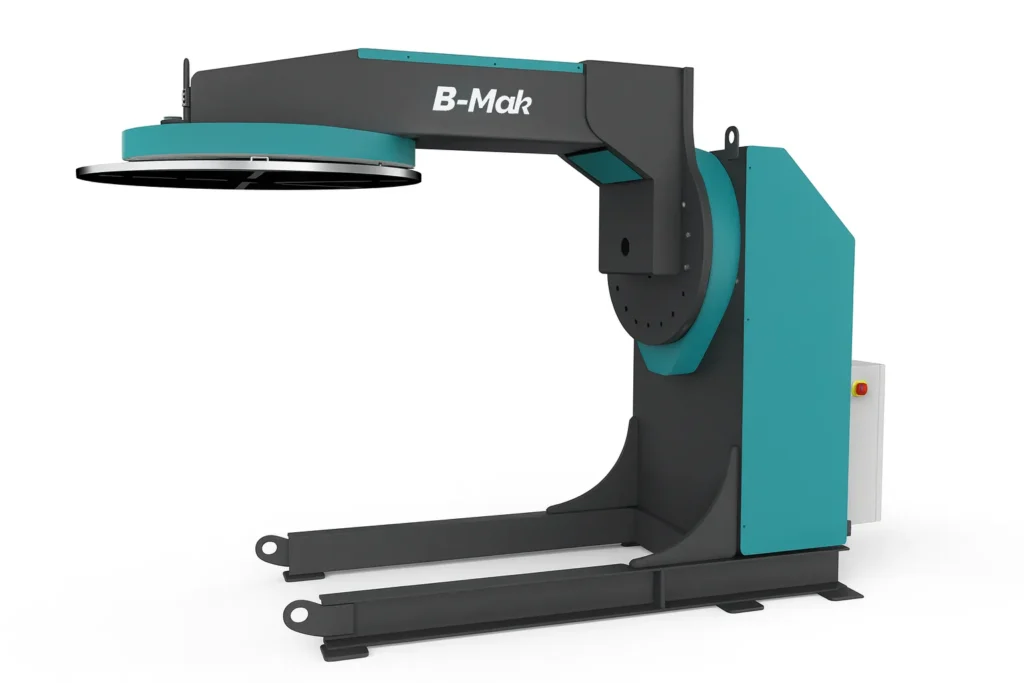

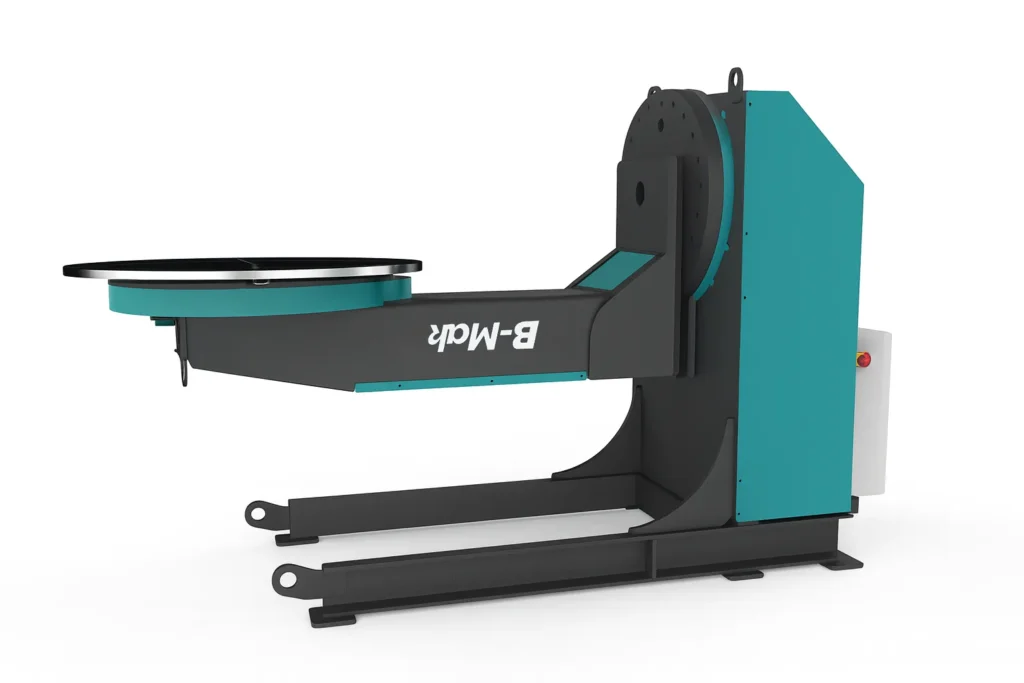

BLP (2AX) - L Type Welding Positioner
L-Type Strength. Dual-Axis Precision.
The BLP (2AX)
General Features
The BLP-2AX is designed for 360° precision positioning and high-performance welding, no matter the shape or complexity of the workpiece. Its L-type configuration provides the perfect balance of power, reach, and stability — making it an ideal solution for demanding fabrication and assembly tasks.
Engineered for safe and reliable handling, the BLP-2AX securely supports asymmetrical or top-heavy workpieces, minimizing the risk of overturning during operation.
By removing the need for crane-based part rotation and repositioning, it significantly reduces downtime, allowing operators to work faster, safer, and more efficiently while maintaining consistent weld quality.
Thanks to its robust construction and user-friendly control system, the BLP-2AX ensures smooth, precise motion — enabling the workpiece to rotate clockwise (CW) or counterclockwise (CCW) at variable speeds directly from the command interface.
Built for industrial durability and ergonomic performance, the BLP-2AX helps operators achieve higher productivity, superior accuracy, and exceptional welding results in every rotation.
Optional Control Units
● T-SE-Round Worktable T-Side Entry Grooved Thick Table Plate
● MC-3-Jaw Manual Chuck
● OC-T- Octagonal Welding Table
● BGR-3-Jaw Manual Pipe Gripper
● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● OHC-Overhead Hangable Control
● WRC – Wireless Remote Control
● PLC-PLC Control System with HMI Display
Standard Features
● 360° Worktable Rotation — complete freedom for accurate and flexible welding.
● Precision Round Worktable with T-Slots — allows easy and secure fixture mounting.
● Adjustable Rotation Speed for perfect control and consistent weld quality.
● Digital Speed Display on the electrical cabinet for real-time monitoring.
● 5 m Command Cable + 5 m Power Cable for convenient and flexible setup.
● Brake & Fan-Cooled Motor ensures smooth operation and long service life.
● Integrated Welding Arc Group — ready for seamless welding applications.
Advantages
● Multiple Capacity Options: Standard BLP-2AX models available in 0.5 t, 1 t, and 2 t capacities — ideal for light to medium-duty workloads.
● Optional T-Slot Table: Enables quick and secure clamping of various workpieces for faster setup.
● High-Performance Motor: Equipped with brake and forced fan cooling for reliable, continuous operation
● Expandable Welding Options: Welding Arc Group available for process integration and improved efficiency.
● Custom Manufacturing: Beyond standard capacities, B-Mak Machinery can design and produce custom-built units tailored to your specific production requirements.

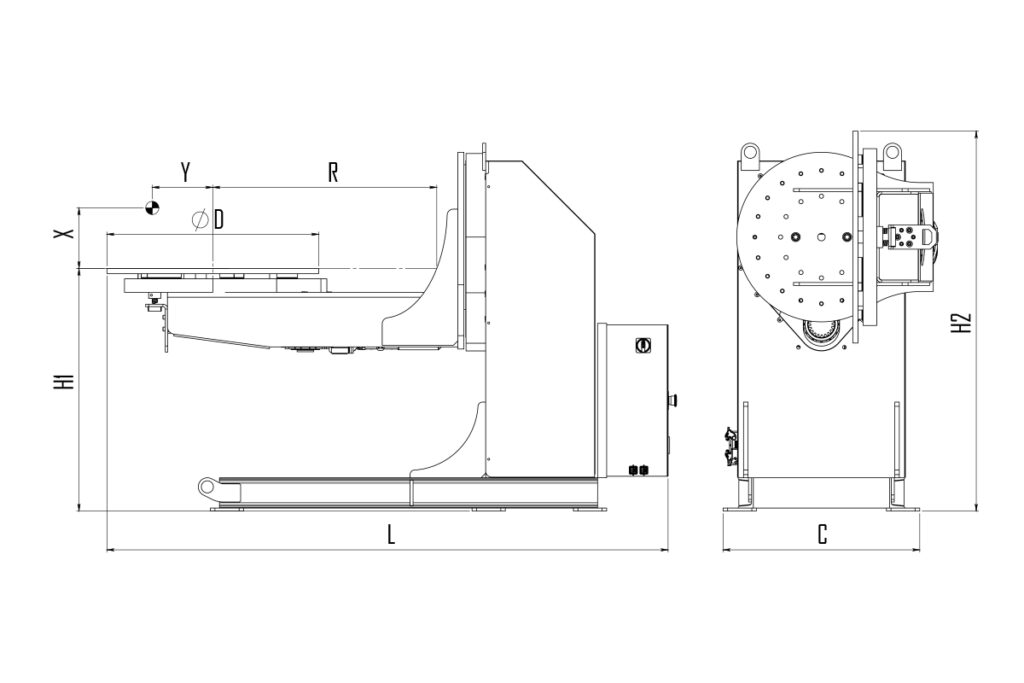

Technical Data
BLP-2AX | Sym | Unit | BLP 0,5 – 2AX | BLP 1 – 2AX
| BLP 2 – 2AX |
Loading Capacity |
| kg
| 500
| 1000
| 2000
|
Working Radius | R
| mm
| 700
| 1000
| 1200
|
Offset Distance | X-Y | mm
| 300-150
| 300-150
| 300-150
|
Table Diameter
| ØD | mm
| 700
| 850
| 900
|
Max. Rotational Torque |
| Nm
| 750
| 1500
| 3050
|
Work Table Speed |
| rpm
| 0,15-1,5
| 0,15-1,4
| 0,15-1
|
Max. Tilting Torque |
| Nm
| 1100
| 1750
| 4450
|
Tilting Speed
|
| rpm
| 1,4
| 1
| 0,7
|
Max. Welding Current | A
| Amp
| 400
| 700
| 700
|
Table Height (at 0⁰) | H1
| mm
| 800
| 870
| 980
|
Total Height (at 90⁰) | H2
| mm
| 1260
| 1450
| 1530
|
Total Length
| L
| mm
| 1860
| 2250
| 2720
|
Total Width
| C
| mm
| 650
| 720
| 850
|
Motor Power of Table
|
| kW
| 0,37
| 0,37
| 0,55
|
Motor Power of Tilting |
| kW
| 0,37
| 0,37
| 0,55
|
Weight |
| kg
| 590
| 820
| 1240 |
