BRR - Chassis Welding Rotator
Strong Support. Smooth Rotation. Perfect Alignment.
The BRR
General Features

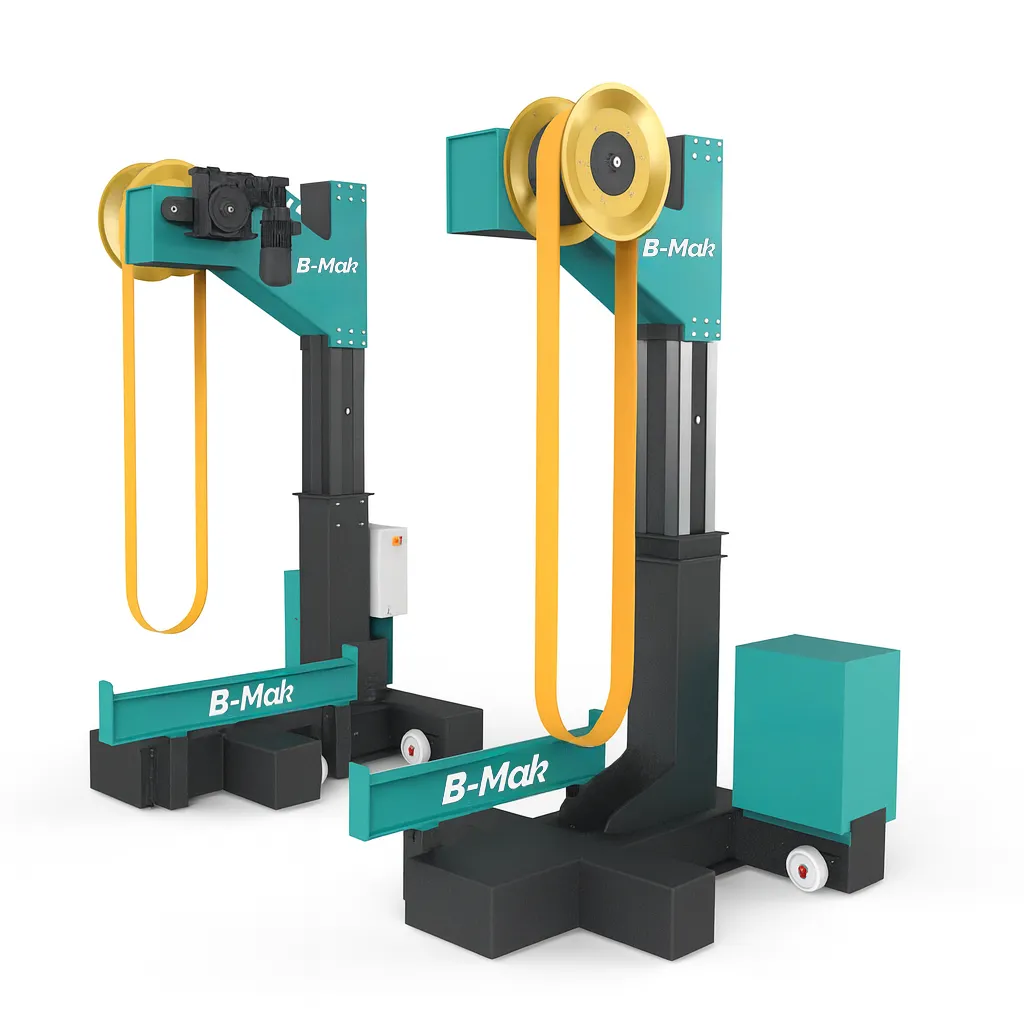

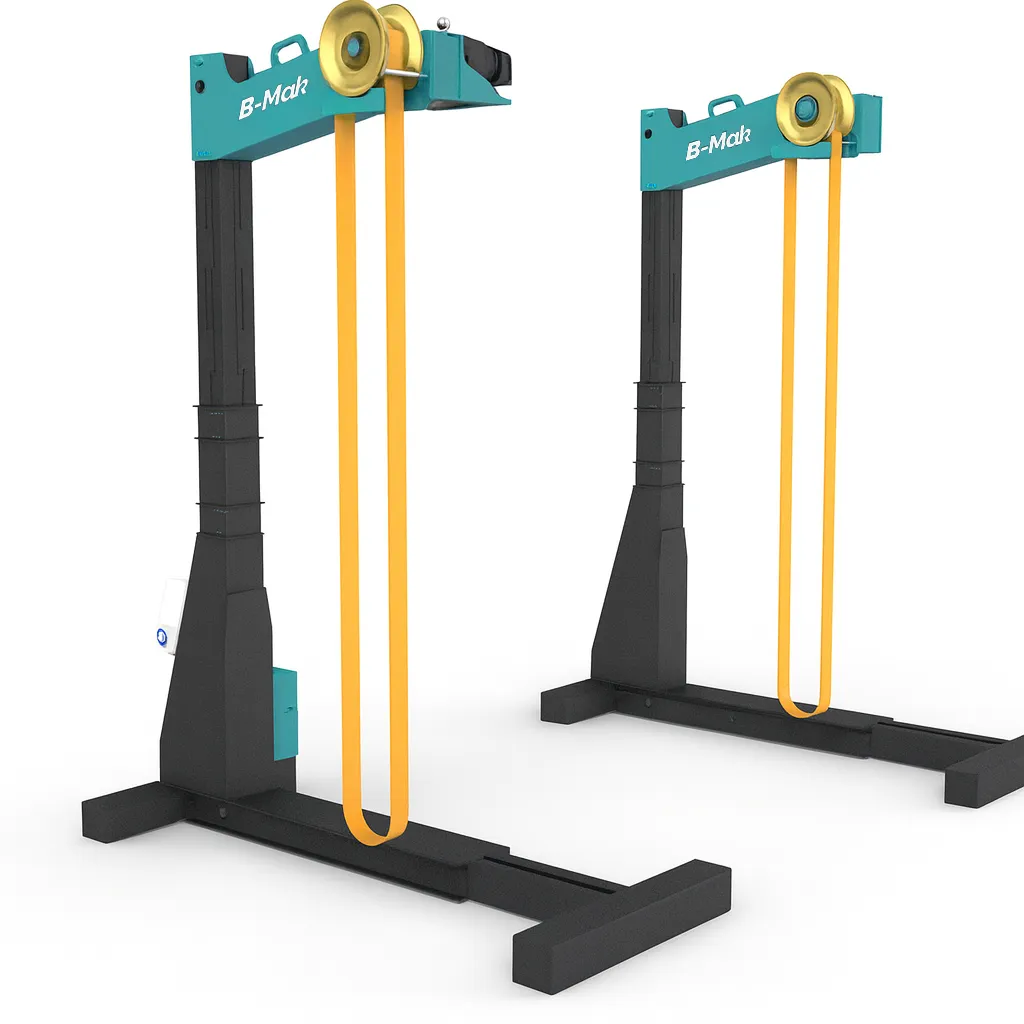

The BRR Section Rope Rotator is designed for precise rotation and positioning of workpieces with planar or non-cylindrical cross sections, enabling efficient welding and assembly operations with maximum control.
By means of an endless rope system, the workpiece is smoothly rotated and positioned, allowing operators to easily achieve the required welding edge and assembly angle. The height adjustment feature provides additional flexibility, ensuring an ergonomic working position and improved operator comfort during welding.
Each BRR rotator set consists of two driven units, which can operate synchronously or independently, allowing precise angular and height adjustments of the workpiece. The number of units can be increased as needed, depending on the size and weight of the component being handled.
Operators can control rotation clockwise (CW) or counterclockwise (CCW) with high precision and stability, ensuring smooth, well-aligned motion throughout the process.
Built for heavy-duty industrial applications are 5-ton, 6-ton, and 10-ton models as standard, while custom capacities between these ranges can also be produced upon request.
Optional Control Units
● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● OHC-Overhead Hangable Control
● MP-Master Panel
● WRC – Wireless Remote Control
Standard Features
● Adjustable Worktable Rotation Speed — provides precise control for smooth, consistent operation.
● Digital Speed Display on the electrical cabinet for accurate real-time monitoring.
● 5 m Command Cable for convenient operator access.
● 5 m Power Cable — ready for quick and flexible installation.
● Brake & Fan-Cooled Motor — ensures reliable, long-term performance under continuous use.
Advantages
● Standard Capacities: BRR models available in 5 t, 6 t, and 10 t capacities.
● Custom Engineering: Beyond standard sizes, B-Mak Machinery can adapt existing models or develop new designs according to customer standards and project requirements.
● Easy Loading System: Chain arms open automatically for fast and simple workpiece placement.
● Automatic Chain Lever Closing: ensures secure clamping and stable rotation once the workpiece is loaded.
● Robust Chain Gear Structure: built for durability, precision, and high load capacity.
● Customer-Focused Solutions: For any special request or project, our engineering team is ready to deliver efficient, safe, and long-lasting custom solutions.

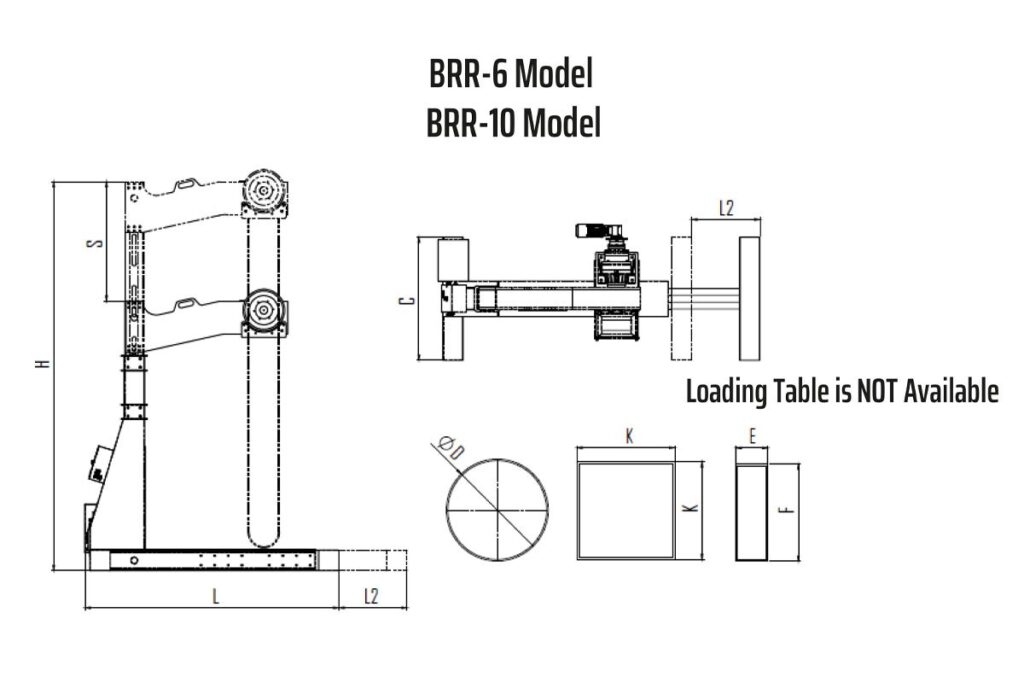

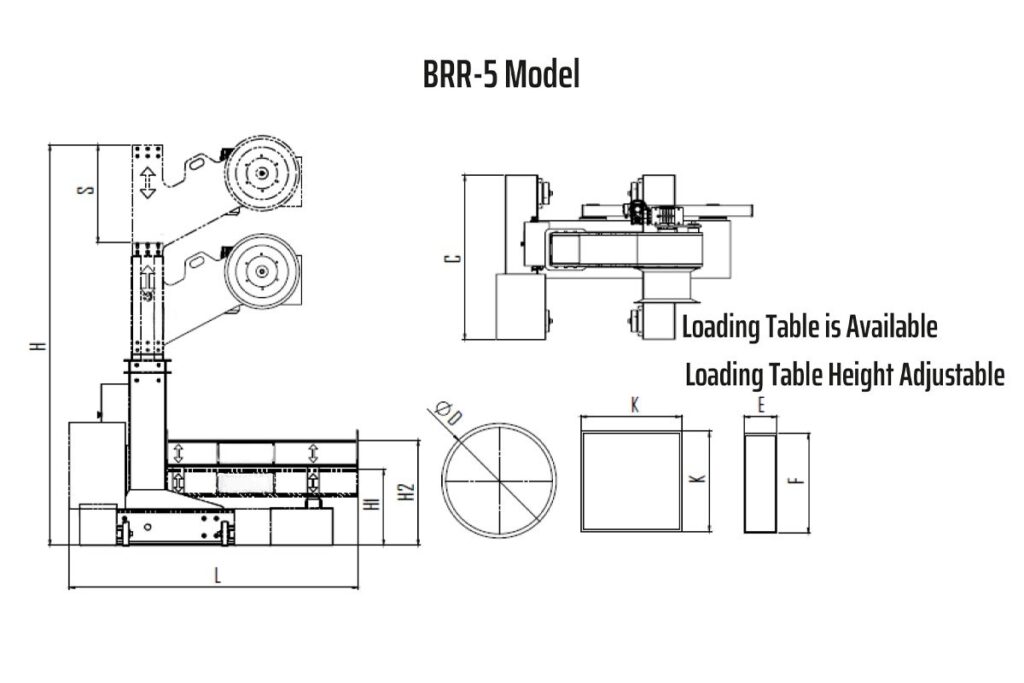

Technical Data
BRR | Sym | Unit | BRR-5 | BRR-6
| BRR-10 |
Capacity |
| kg
| 5000
| 6000
| 10000
|
Rotation Speed | 90°
| sec
| 9
| 30
| 30
|
Up & Down Time
|
| sec
| 30
| 90
| 90
|
Loading Stroke | S
| mm
| 800
| 1300
| 1300
|
Max.Workpiece Round | ØD
| mm
| 1415
| 3500
| 3500
|
Max. Workpiece Square | K
| mm
| 1000
| 2500
| 2500
|
Max. Workpiece Rectangular | E-F
| mm
| 1200 x 300
| 3200 x 1500
| 3200 x 1500
|
Height | H
| mm
| 3265
| 5400
| 5400
|
Loading Chassis Height | H1-H2
| mm
| 620-860
| —
| —
|
Length | L
| mm
| 2350
| 4070
| 4070
|
Length Stroke | L2
| mm
| –
| 1000
| 1000
|
Width | C
| mm
| 1500
| 2250
| 2500
|
Total Motor Power |
| kW
| 5
| 11
| 14 |
