B-Mak introduces ZIM – world-class concrete block machines, now available in North America with local service and support.
ZIM 1536 Ultimate
Power. Precision. Performance.

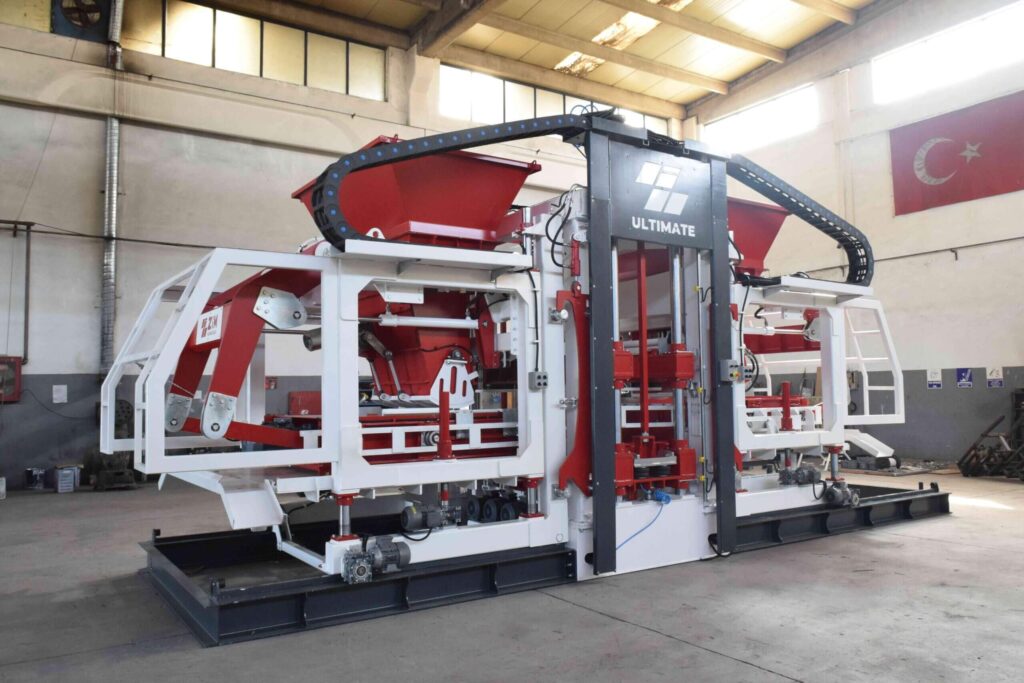

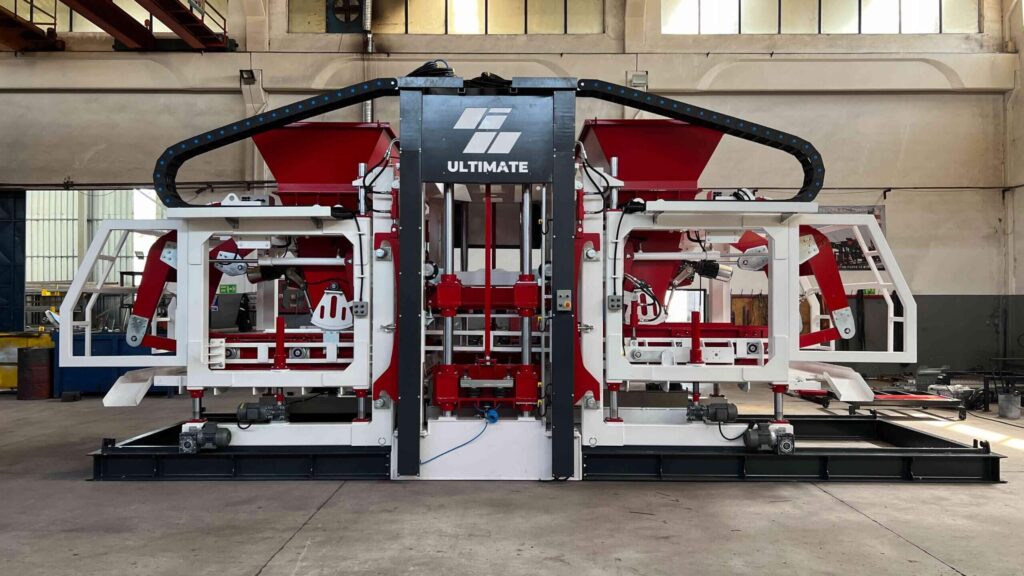

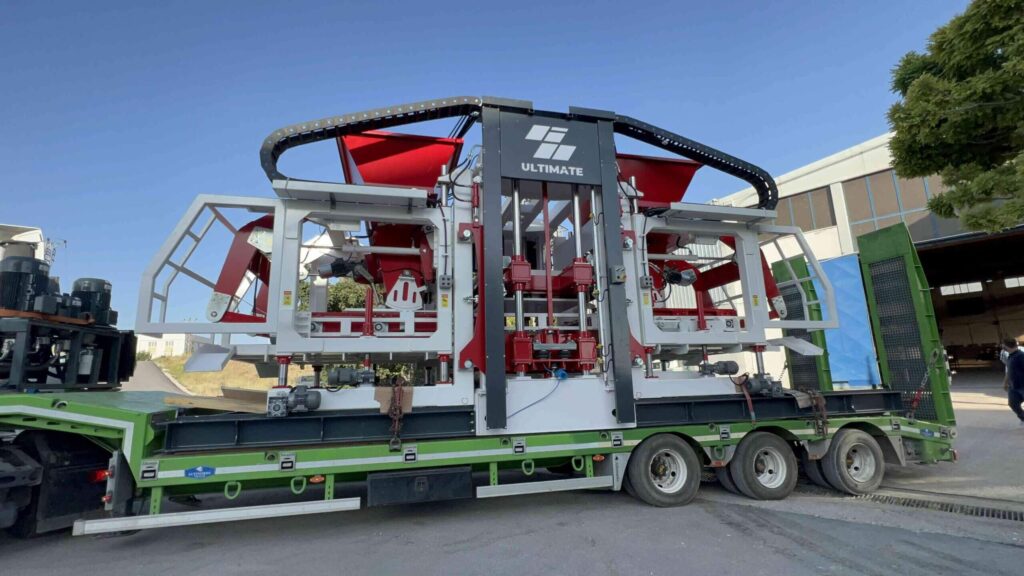

The ZIM 1536 ULTIMATE
High-end, fully industrial machine

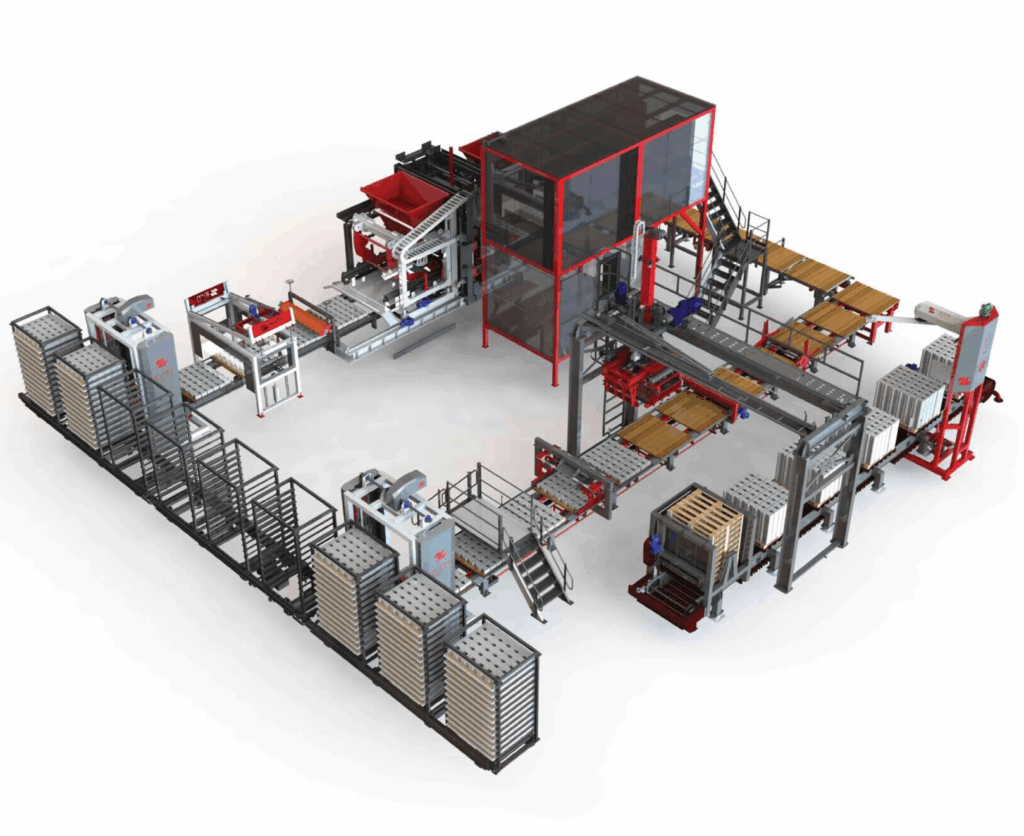

The ZIM 1536 is a engineered for mass production of concrete blocks, paverstones, and curbstones. Designed for speed, capacity, and efficiency, it delivers top-tier output with minimal labor costs and seamless integration into automatic facilities such as Finger Car, Basket System, and L-Type System.
Maximum Productivity
With a capacity of 15 blocks or 36 paverstones per press and 1,200–1,400 pallets per day, the ZIM 1536 is built for non-stop, 24/7 performance. Every feature is optimized for mass production while ensuring consistent quality.
Smart Engineering
Loadcell bunker system for precise mortar monitoring.
Proportional mortar car movement for perfect filling every time.

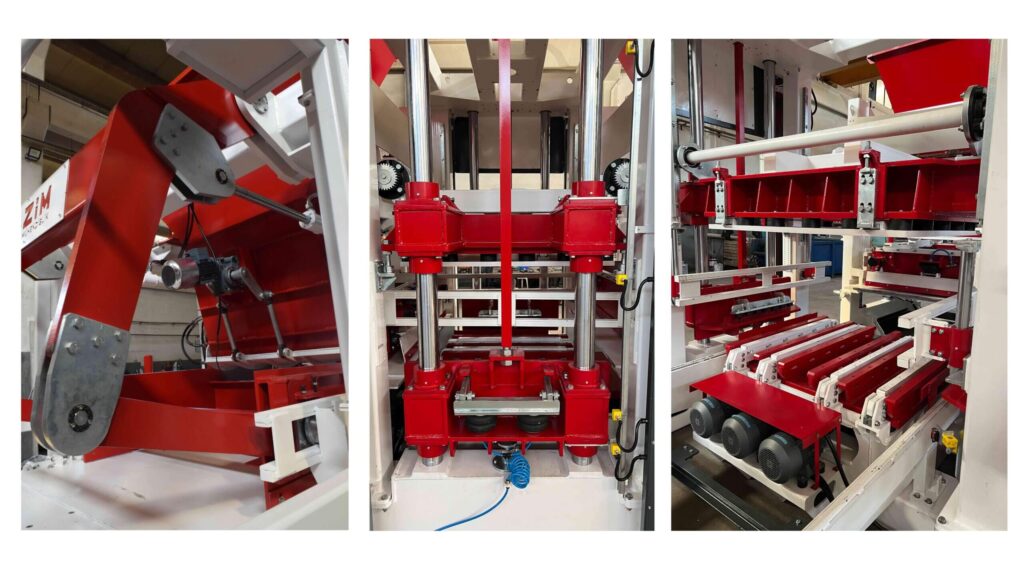

Advanced mold balancing & pressing system for unmatched product quality.
15-minute mold change with pneumatic mold connection and automatic height adjustments — fast, safe, and effortless.
Cutting-Edge Vibration Technology

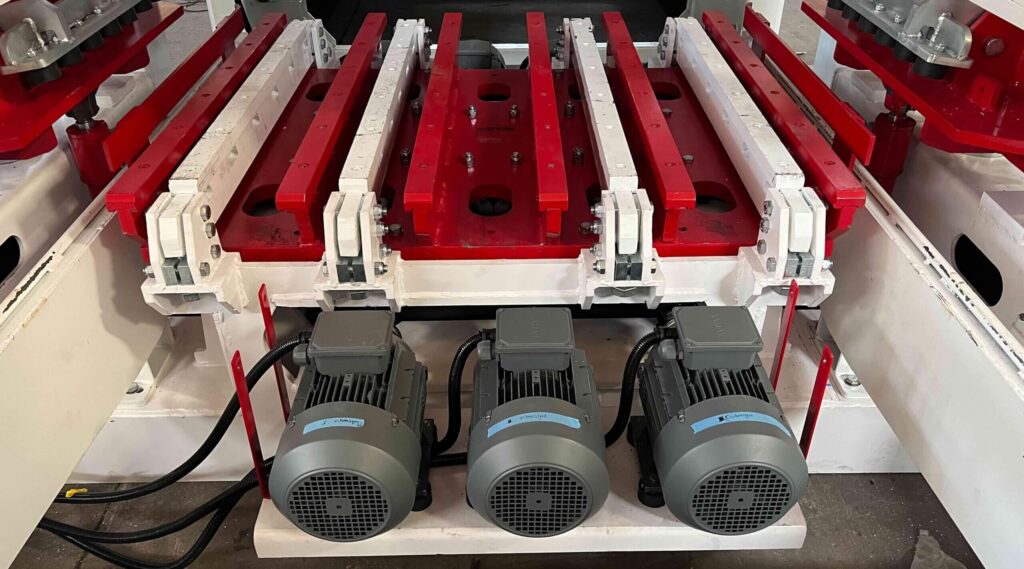

At the heart of the ZIM 1536 is our VIBROSTAR oil-bathed vibration system:
6 powerful engines with a total of 33 kW energy output.
Oil circulation keeps vibrations cool, extending system life.
Shaft-connected design for maximum durability and zero downtime.
Built for the Future
With robust hardware, intelligent automation, and unmatched efficiency, the ZIM 1536 is not just a machine — it’s a game-changer in concrete production. Backed by decades of expertise, it’s built to perform for years without compromise.
Choose the ZIM 1536 and take your production to the next level.
TECHNICAL DETAILS
- Product Height: 60mm-500mm
- Inner Shaking System
- Arm Suspension System
- Pneumatic Mould Changing
- Loadcell System in Bunkers
VIBRATION SYSTEM
- Non-Stop Vibration Working
- Controlled By Electronic Drivers
- Bearing Works In Oil Bath
- Sahft Connected Power System
- Vibration Engines 6 x 5.5 kW
HYDRAULIC SYSTEM
- Air Cooling Equipment
- REXROTH / DANFOSS Valves
- Power: 55 kW
Technical Specifications
| Feature | Value |
| Machine Working System | Fully Automatic PLC Controlled |
| Machine Production Capacity | 150-180 Pallets / Hour |
| Machine Weight | 22.500 KG |
| Production Pallet Dimensions | Basket / Finger Car System: 1400x1100x50mm |
| Pallet with legs System: 1500x1150x50mm (25 cm leg height) | |
| Mold Usage Area | 1300mm x 1060mm |
| Number of Products on a Pallet | 36 pcs of paverstone |
| 12 pcs Block ( 200x400x200mm ) | |
| Minimum Product Height | 50 MM |
| Maximum Product Height | 300 MM / 500MM |
| Upper Vibration Power | 1 kW x 4 pcs |
| Lower Vibration Power | 5.5 kW x 6 pcs |
| Bunker Capacity | 2000 dm3 |
| Hydraulic System | REXROTH / EATON / DANFOSS BRANDS ARE USED. |
| Electric | SİEMENS / SCHNEİDER / ABB BRANDS ARE USED. |
| Total Power Usage | It varies according to the facility configuration. |
Production Capacity
Blocks
200x400x200
Per Press
15

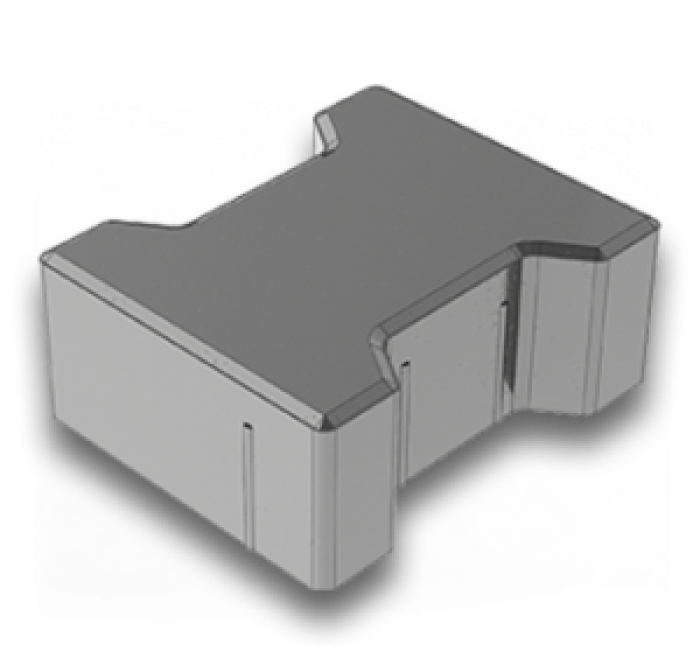

Pavers
198x163x100
Per Press
36

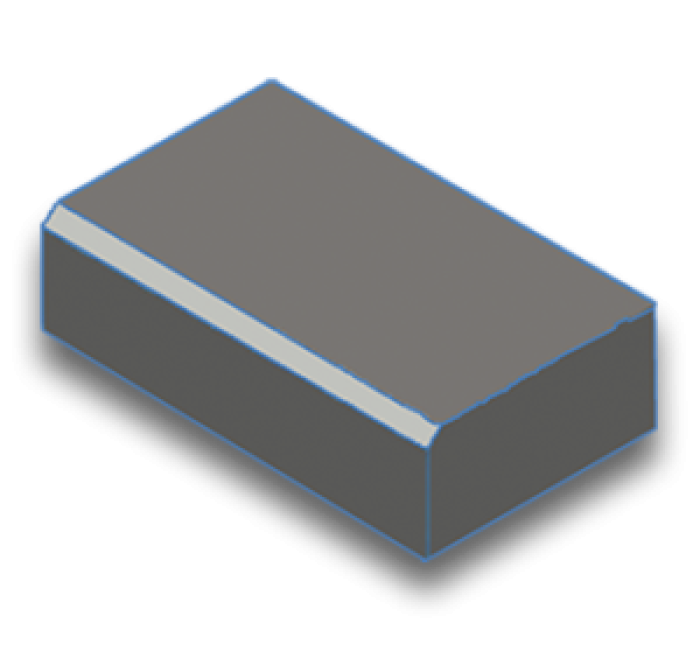

Curbstone
250x500x150
Per Press
16
Equipment
Finger Car
Front Robot
Back Robot
Exit Band With Chain

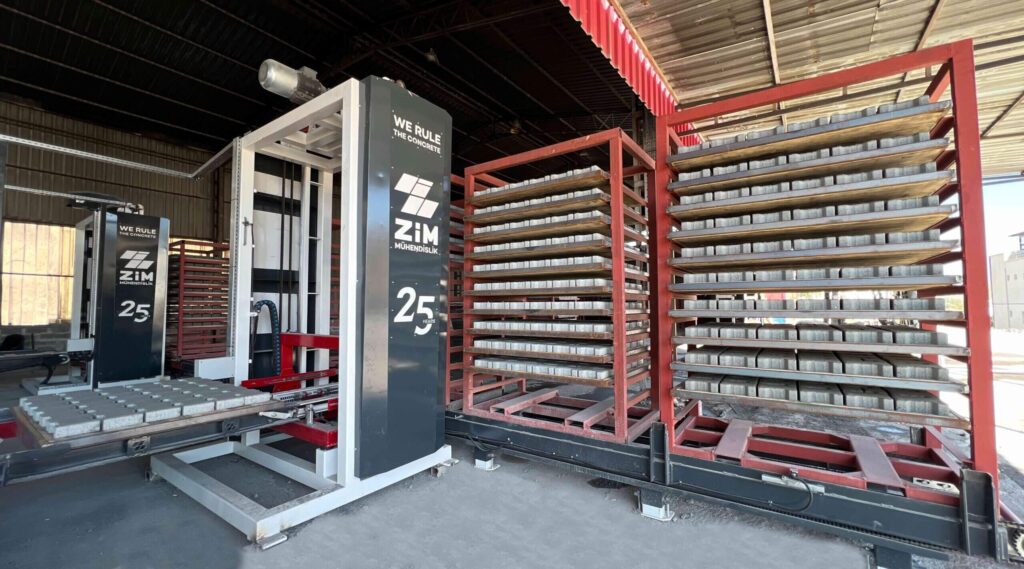

Collector Robot
Stacking Exit Band
Pallet Reversing System
Material Cleaning System
Pallet Cleaning System
Stacking System for Pallets without Leg
Lowering System for Pallets without Legs
Hydraulic System
Automation System
ZIM 1536 ULTIMATE
The ZIM 1536 is a high-end, fully automated machine designed for continuous production of concrete blocks, paver stones, and curbstones, delivering up to 1,400 pallets per day with fast mold changes, VIBROSTAR vibration technology, and low labor costs.
ZIM 1025 PERFORMANCE

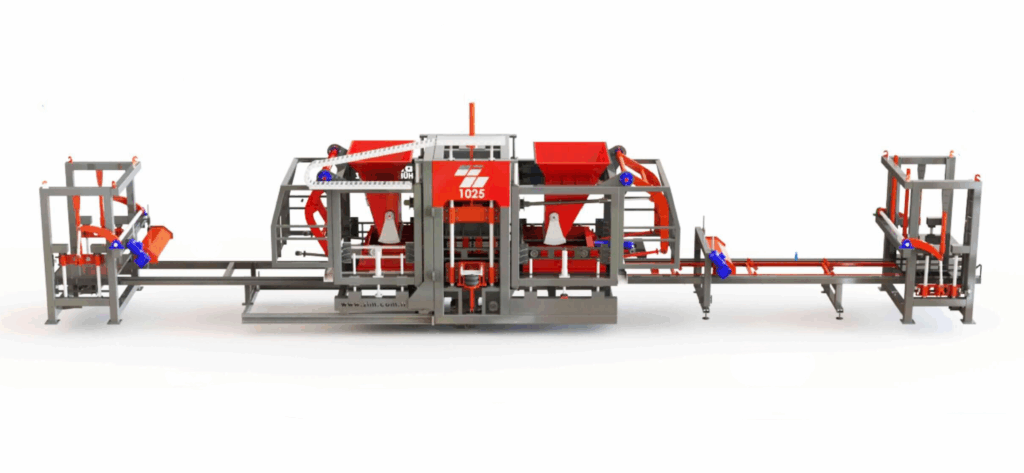

The ZIM 1025 delivers up to 1,000 pallets per day, producing blocks, pavers, and even 1-meter curbstones with precision and flexibility. With quick 15-minute mold changes, advanced FULLDRIVE vibration technology, and options from manual to fully automatic operation, it’s the smart mid-high level machine that guarantees top quality, low energy costs, and a fast return on investment.
ZIM 820 – Smart Entry, Big Performance
The ZIM 820 is a mid-entry machine built for double-layer paving stones, delivering up to 1,000 pallets per day with just 8 blocks or 20 pavers per press. Combining low energy consumption, FULLDRIVE vibration technology, and flexible operation (manual to fully automatic), it offers top quality, efficiency, and a fast ROI in a compact, cost-effective package.
ZIM 518 – Affordable Entry, Powerful Results
The ZIM 518 is an entry-level, investor-friendly machine delivering up to 1,000 pallets per day of paving stones, blocks, or even 1-meter curbstones. With low investment cost, low energy use, and quick installation, it combines FULLDRIVE vibration technology and smart design to guarantee high-quality output and fast ROI — giving you a strong edge in the competition.
