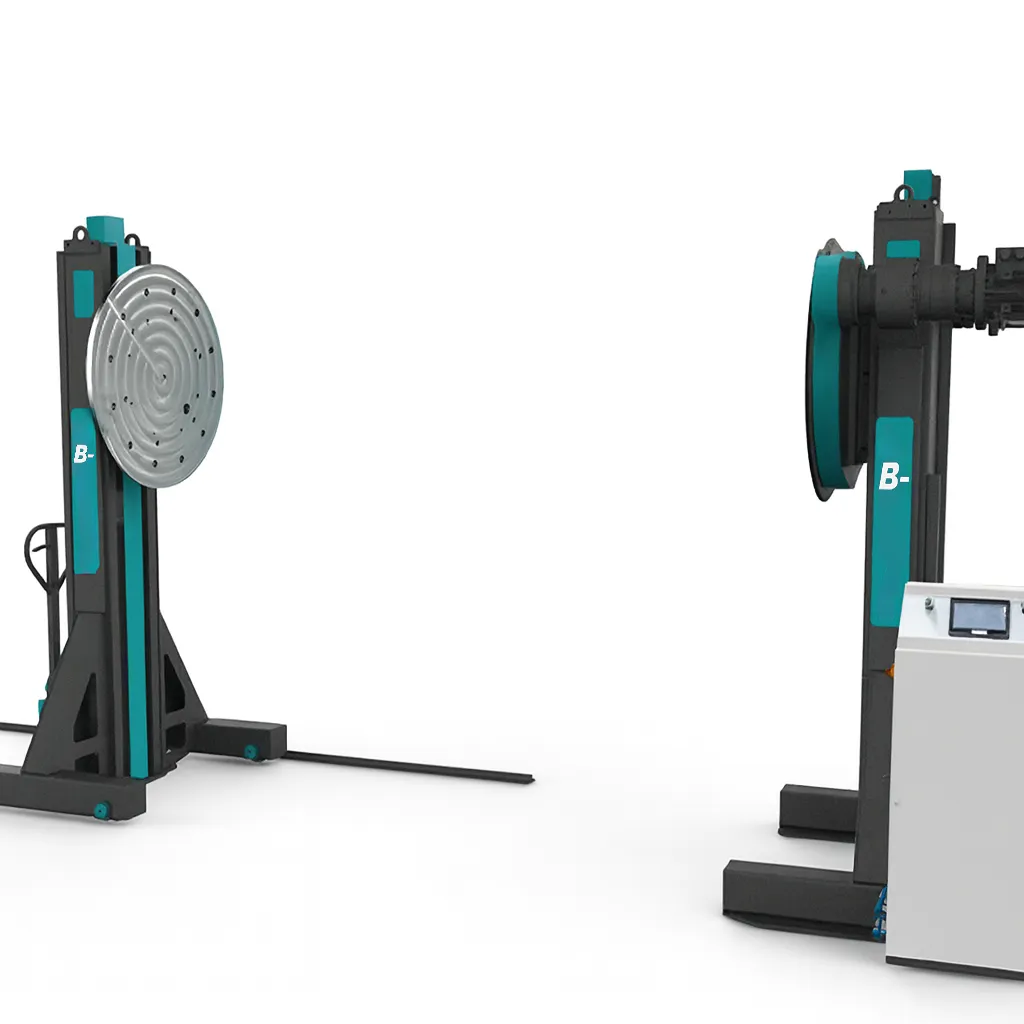

BEM HG (2+1 AX) - Headstock Tailstock Welding Positioner

Heavy-Duty Precision. Multi-Axis Performance.

The BEM HG (2+1 AX)

General Features

Hydraulic Power, Built to Last: A durable, long-life hydraulic system ensures reliable lifting and positioning even under heavy workloads.
Flexible Handling: Adapts easily to workpieces of varying lengths and dimensions, offering exceptional versatility on the shop floor.
Tough & Reliable: Specially designed for dusty and harsh environments, maintaining smooth performance and minimal maintenance.

Silent Precision: Operates quietly and efficiently, providing stability and operator comfort during every weld.
Variable Rotation Speed: Full control of table rotation speed for precise, consistent weld quality.
Smart HMI Control: The intuitive HMI unit allows saving multiple programs (recipes) and defining unique height and angle parameters for fast, repeatable setups.

Optional Control Units

● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● OHC-Overhead Hangable Control
● MP-Master Panel
● WRC – Wireless Remote Control
● EFFA – Easy Fixing Fixture Apparatus

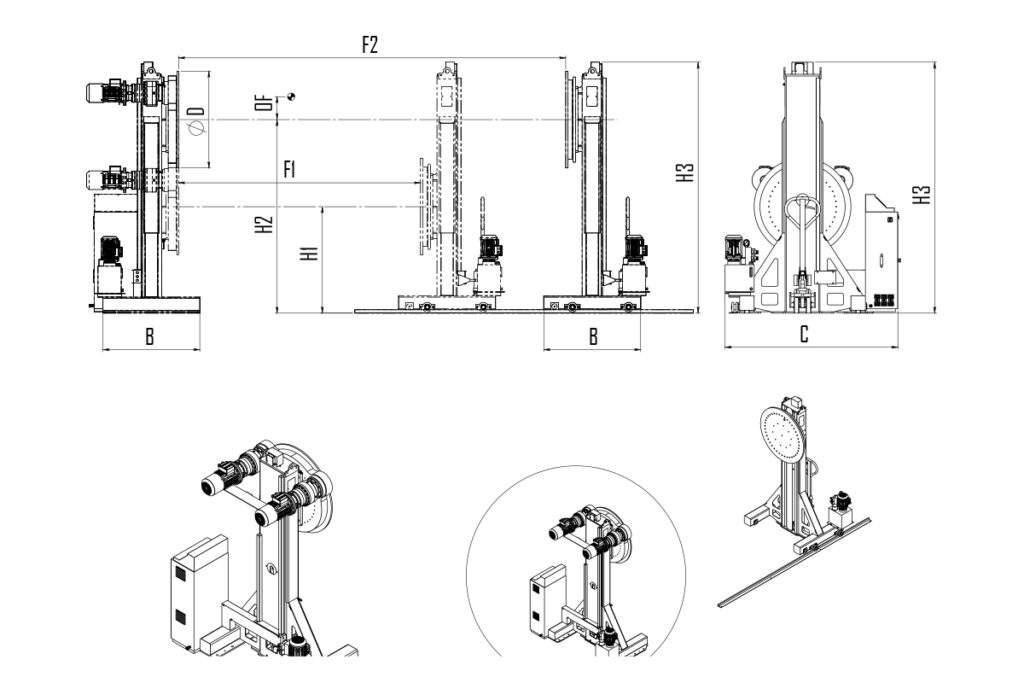

Technical Data

BEM HG	Sym	Unit	BEM-1,5. HG	BEM-3 HG	BEM-5 HG	BEM-6 HG	BEM-8 HG	BEM-10 HG	BEM-12 HG	BEM 15 HG
Capacity		kg	1500	3000	5000	6000	8000	10000	12000	15000
Rotation Speed		rpm	0,2 – 1	0,2 – 0,9	0,2 – 0,9	0,2 – 0,9	0,1 – 0,68	0,1 – 0,62	0,1 – 0,67	0,1 – 0,63
Up & Down Time		mm/min	2400	1500	930	930	770	770	770	770
Max. Rotational Torque		Nm	5000	10150	17800	20550	24000	30000	36000	42000
Min-Max Lifting Height	H1-H2	mm	550-1350	650-1550	900-1800	900-1800	9000-1800	900-1800	1100-2000	1100-2000
Offset Distance	OF	mm	300	300	300	300	300	300	300	250
Table Plate Diameter	ØD	mm	575	650	750	750	750	850	1000	1000
Max. Workpiece Diameter		mm	2700	3100	3600	3600	3600	3600	4000	4000
Height	H3	mm	2150	2350	2430	2430	2430	2430	2600	2600
Length	B	mm	850	850	1000	1000	1000	1000	1000	1000
Width	C	mm	1550	1600	1670	1670	1670	1740	1790	2120
Space Distance	L	mm	6000	6000	6000	6000	6000	6000	6000	6000
Rail Stroke	F1-F2	mm	4000-6000	4000-6000	4000-6000	4000-6000	4000-6000	4000-6000	4000-6000	4000-6000

Motor Power of Table		kW	0,75 x 1	1,5 x 1	1,5 x 2	1,5 x 2	1,5 x 2	1,5 x 2	2,2 x 2	2,2 x 2
Motor Power of Hydraulic Unit		kW	1,1 x 2	1,1 x 2	1,1 x 2	1,5 x 2	2,2 x 2	2,2 x 2	2,2 x 2	2,2 x 2
Weight		kg	1400	1570	2000	2030	2220	2400	2630	2910
