ZIM A 2625
Heavy-Duty Pipe & Culvert Production Redefined

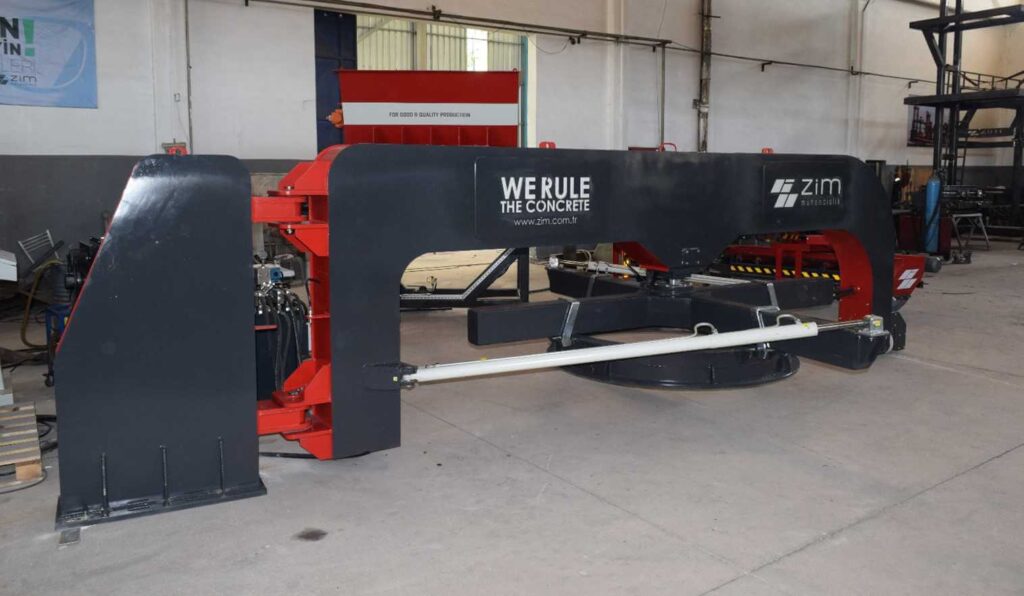

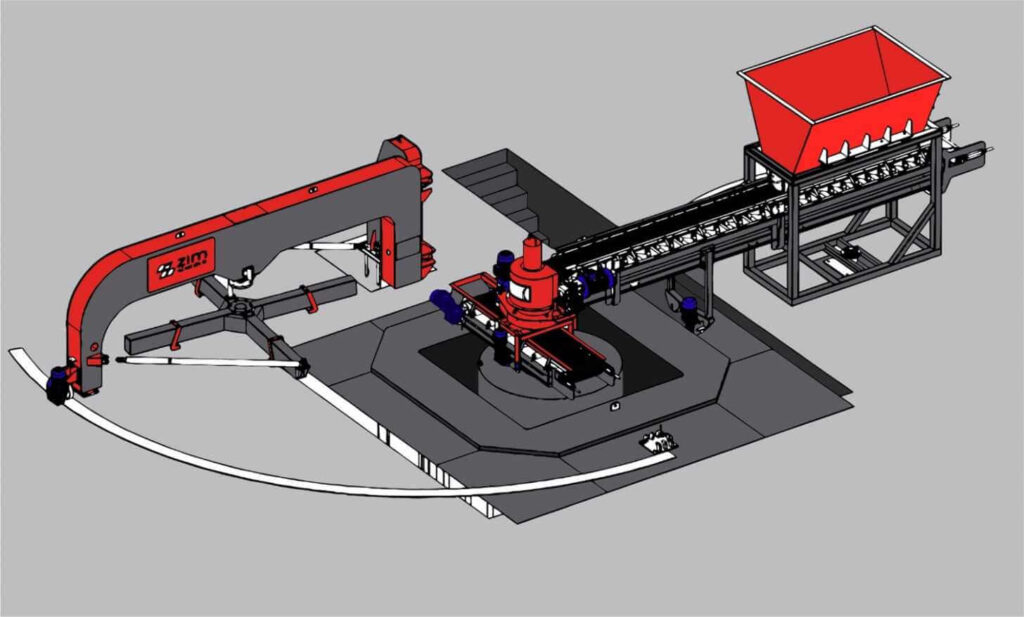

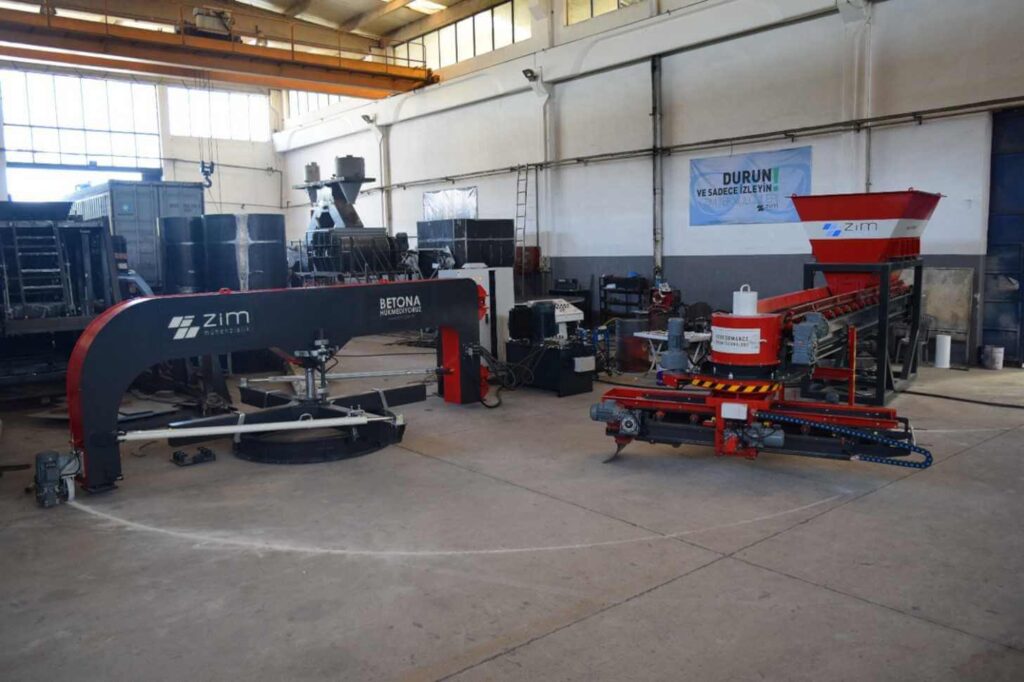

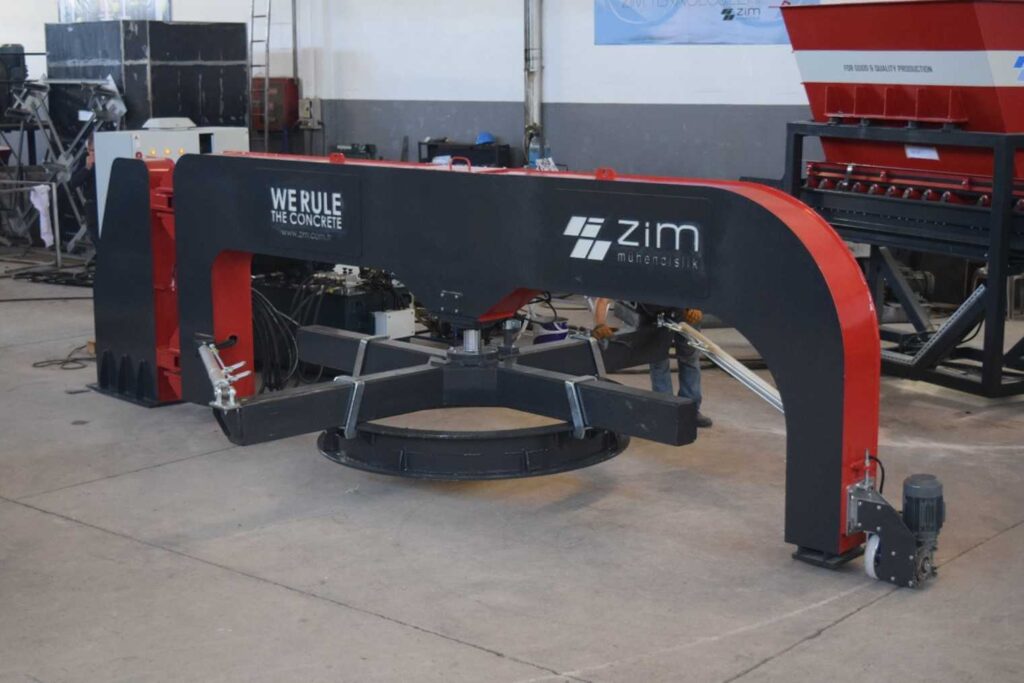

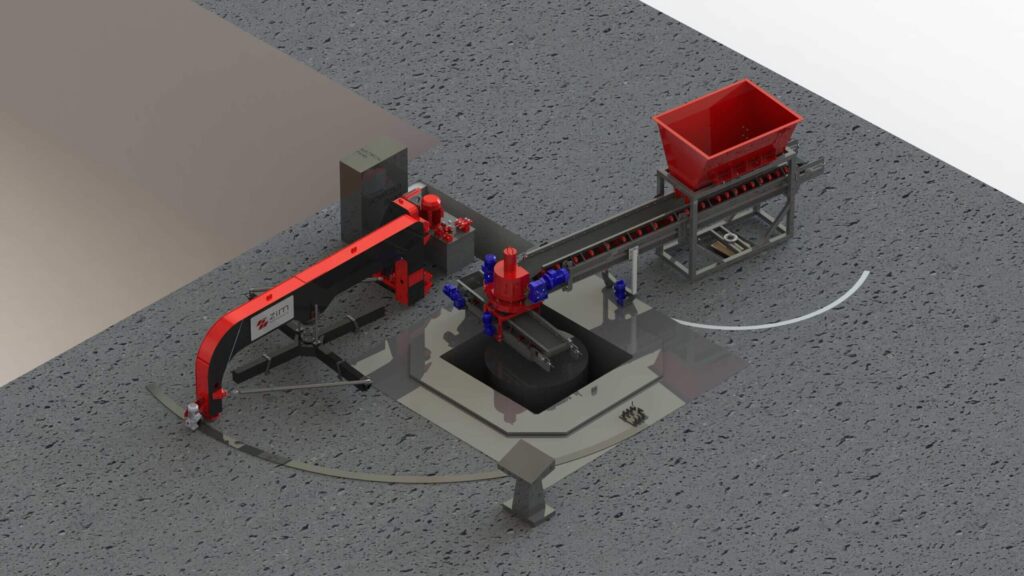

The ZIM A 2625
The powerhouse of concrete block production
The ZIM A 2625 is engineered to push efficiency, quality, and durability to the next level in pipe and culvert production. Built for large-scale operations, it combines powerful technology with smart automation to maximize output while keeping operating costs low.
Why choose ZIM A 2625?
Because it delivers high capacity, low operating costs, and unmatched reliability, making it the ultimate solution for modern pipe and culvert manufacturers.
Wide Production Range — Manufactures pipes from 800 mm to 2600 mm diameter and up to 2500 mm height.
Smart Automation — Available in semi-automatic or fully automatic versions with SIEMENS PLC control for precision and reliability.
Optimized Filling System — Mortar conveyor with a specially designed distribution system ensures fast, equal, and consistent mold filling every cycle.
High-Performance Vibration — Frequency-controlled vibration system designed by our R&D team, cooled by an oil circulation unit with advanced sensors for stability and long life.
Strong & Reliable Build — Heavy-duty chassis ensures decades of error-free performance even in demanding environments.
Streamlined Workflow — Products are transported with their molds directly to drying areas, reducing downtime and keeping production continuous.
Technical Specifications
| Concrete Pipe Dimensions | Ø600mm – Ø3600mm / 2500mmx2500mm |
| Concrete Pipe Length | 2m / 2,5m / 3,5m |
| Vibrator Type | Special Type with grease / Vibromotor (with inverter) |
| Total Electric Power | 75 kW |
| Hydraulic Cooling system | Cooling with air |
| Command System | Manual – Electrical |
Production Capacity
| Product Dimensions | Product Length | Pcs / Day (8 hour) |
| Ø800mm | 2500mm | 50 |
| Ø1000mm | 2500mm | 45 |
| Ø1200mm | 2500mm | 40 |
| Ø1400mm | 2500mm | 35 |
| Ø1600mm | 2500mm | 30 |
| Ø1800mm | 2500mm | 25 |
| Ø2000mm | 2500mm | 20 |
| Ø2400mm | 2500mm | 16 |
| Ø3000mm | 2500mm | 12 |
| Ø3600mm | 2500mm | 8 |
| 2500x2500mm | 2000mm | 10 |
| 2000x2000mm | 2000mm | 15 |
| 1500x1500mm | 2000mm | 20 |
| 1000x1000mm | 2000mm | 30 |
Equipment

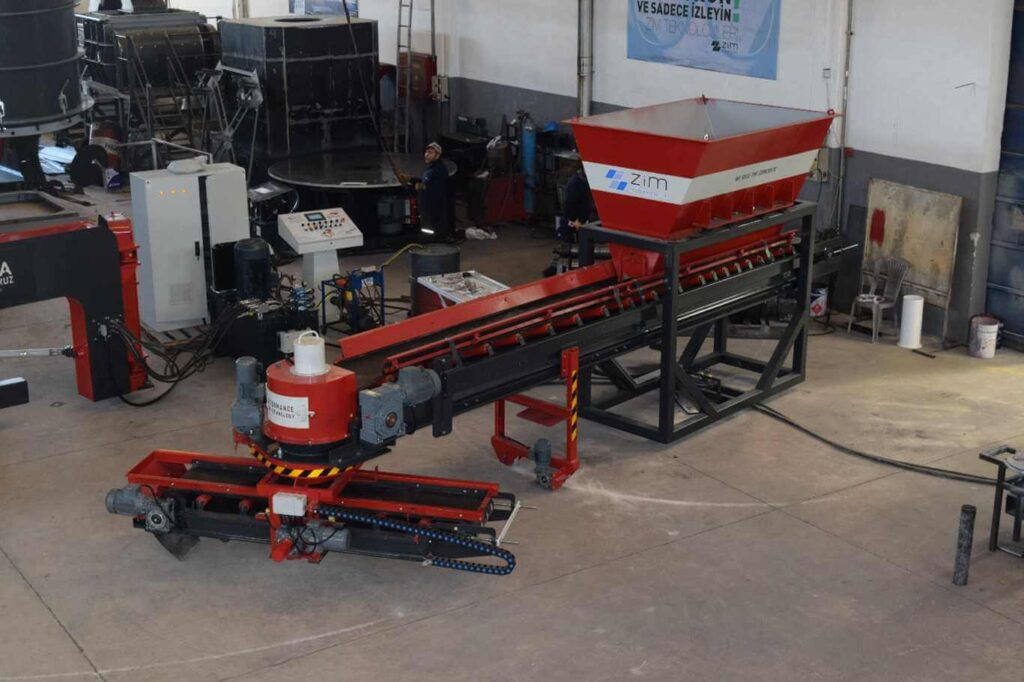

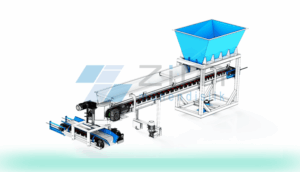

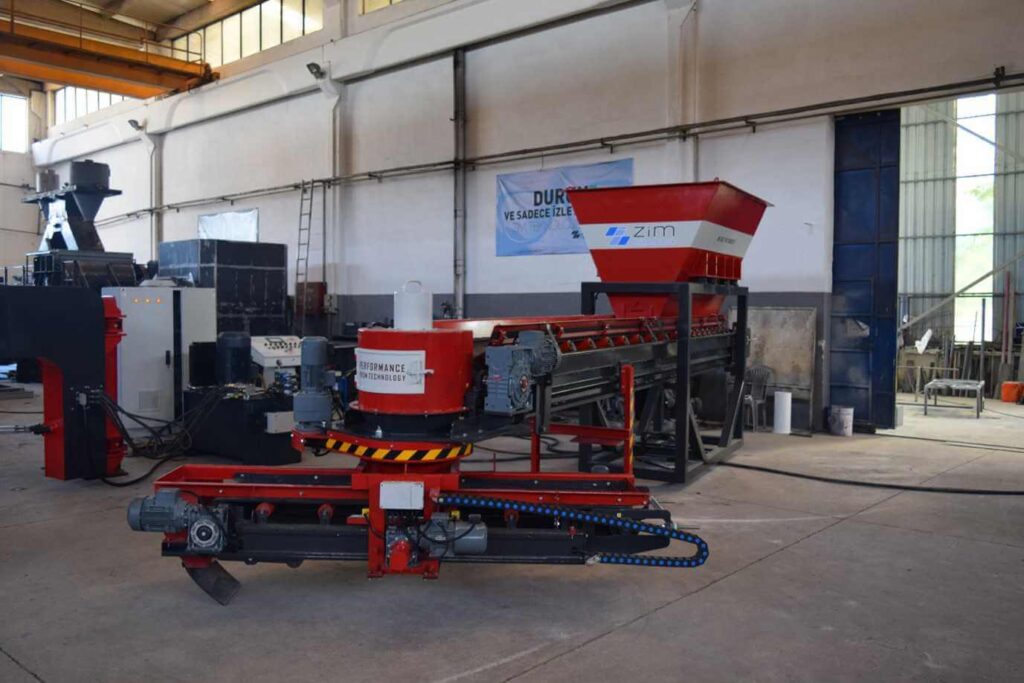

Mortar Filling Conveyor With Bunker

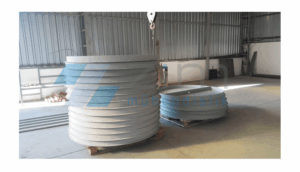

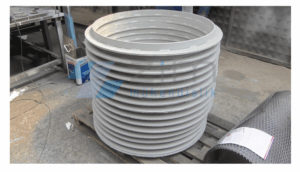

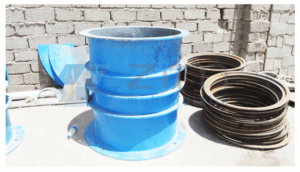

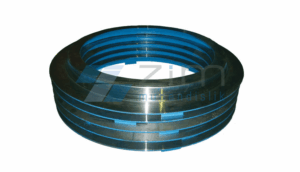

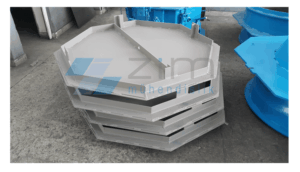

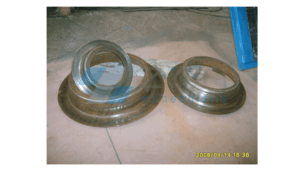

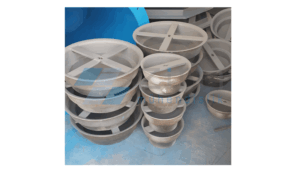

Production Pallet

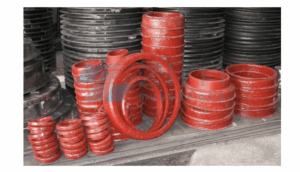

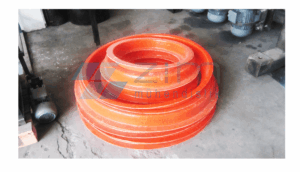

Fiber Heading

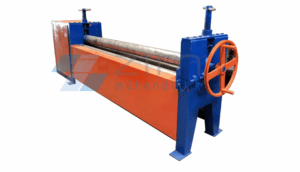

Twisting Cylinder for Steel Reinforcement

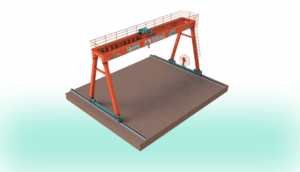

Portal Crane

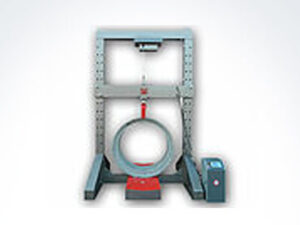

Testing Press
ZIM T 815
Compact machine for small pipes 150–800 mm, with single, double, or triple pipe production per cycle.
ZIM T 1015
Efficient machine for manholes, conics, and rings up to 1000 mm diameter / 1500 mm height.
ZIM T 1220
Flexible pipe production machine (300–1200 mm, up to 2000 mm height) with multi-pipe cycles for maximum output.
ZIM A 1210
High-capacity machine for manholes, conics, and rings up to 1200 mm diameter, designed for efficiency and durability.
