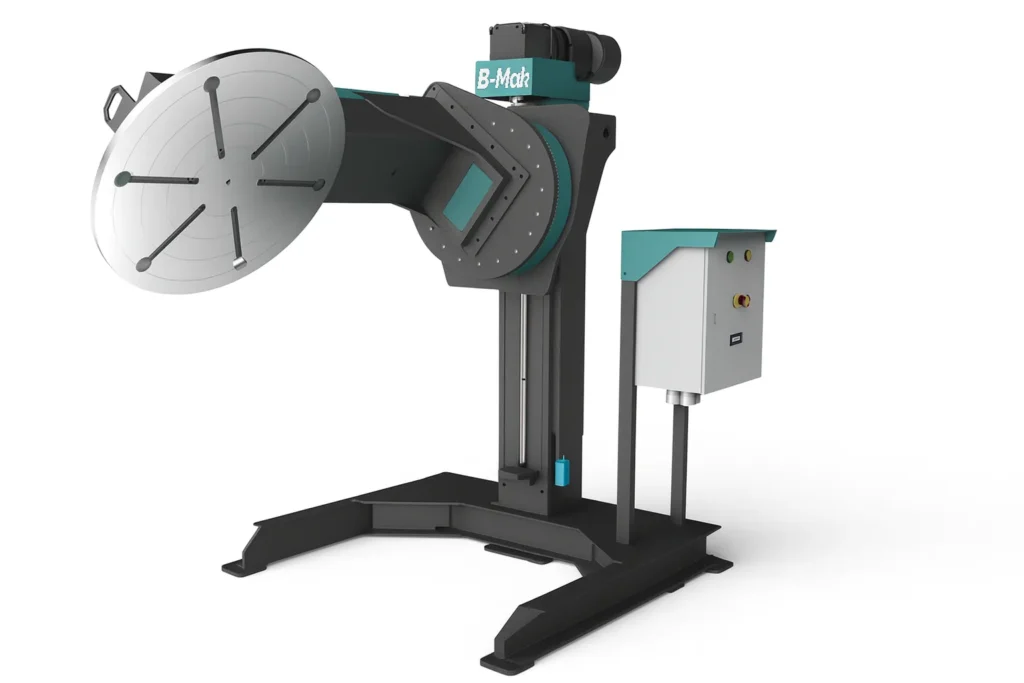

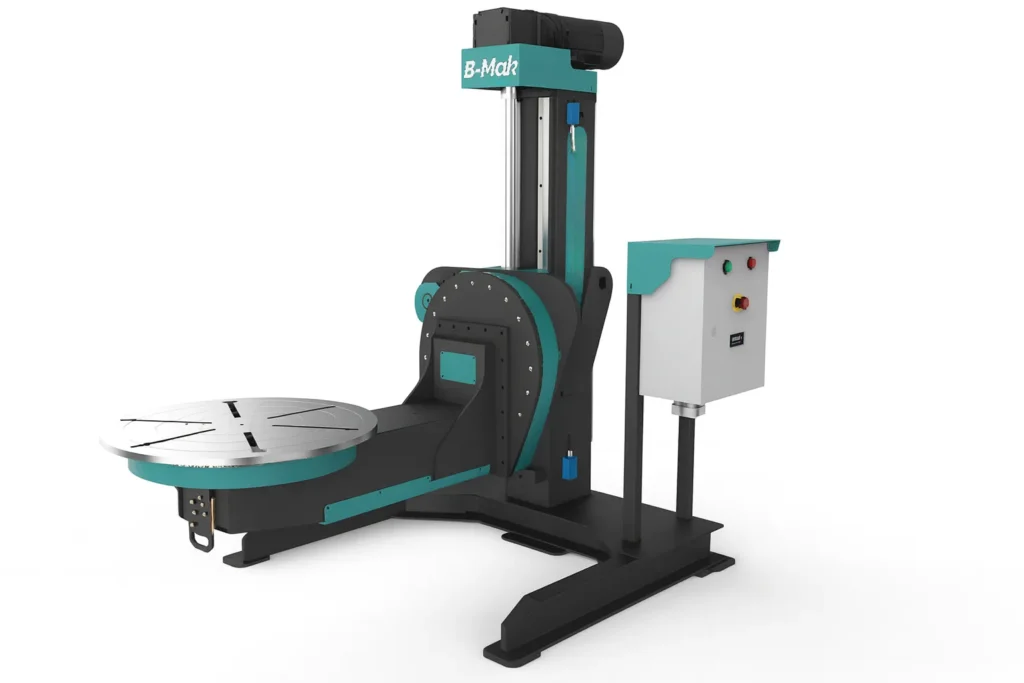

BLPL (3AX) - L Type Welding Positioner
Three Axes. Total Control. Perfect Welds.
The BLPL (3AX)
General Features
The BLPL-3AX delivers the perfect blend of power, precision, and versatility, enabling 360° welding and assembly on workpieces of any geometry within its capacity. Its 3-axis design allows full positioning freedom, creating optimal welding angles and flawless seams every time.
Engineered in an L-type configuration, the BLPL-3AX provides safe, stable handling of asymmetrical or unbalanced parts, significantly reducing the risk of overturning during operation.
By eliminating the need for crane-based part rotation and handling, it streamlines workflow, minimizes downtime, and allows operators to work more efficiently and comfortably, boosting overall productivity.
With its robust construction and intuitive control system, operators gain smooth, precise motion control — rotating the workpiece clockwise (CW) or counterclockwise (CCW) at variable speeds directly from the command interface.
Built for industrial reliability and ergonomic performance, the BLPL-3AX stands as a powerful solution for high-precision welding and assembly environments.
Optional Control Units
● T-SE-Round Worktable T-Side Entry Grooved Thick Table Plate
● MC-3-Jaw Manual Chuck
● OC-T- Octagonal Welding Table
● BGR-3-Jaw Manual Pipe Gripper
● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● OHC-Overhead Hangable Control
● WRC – Wireless Remote Control
● PLC-PLC Control System with HMI Display
Standard Features
● 360° Worktable Rotation — complete freedom for accurate welding from any angle.
● Precision Round Worktable with T-Slots — designed for versatile and secure workpiece positioning.
● Vertical Lifting by Threaded Shaft — standard feature ensuring smooth, stable, and precise height adjustment.
● Adjustable Rotation Speed with Digital Speed Display on the electrical cabinet for total control.
● 5 m Command Cable + 5 m Power Cable for flexible installation and easy reach.
● Brake & Fan-Cooled Motor — built for durability, power, and long service life.
● Integrated Welding Arc Group — ready for direct welding applications.
Advantages
● Wide Range of Capacities: Standard BLPL-3AX models available in 0.75 t, 1.5 t, and 3 t capacities to suit light to medium workloads.
● Reliable Power System: Motor equipped with brake and forced fan cooling for continuous, stable performance.
● Optional T-Slot Worktable: Enables quick and secure connection of workpieces for increased efficiency.
● Optional Welding Arc Group for fully integrated welding control.

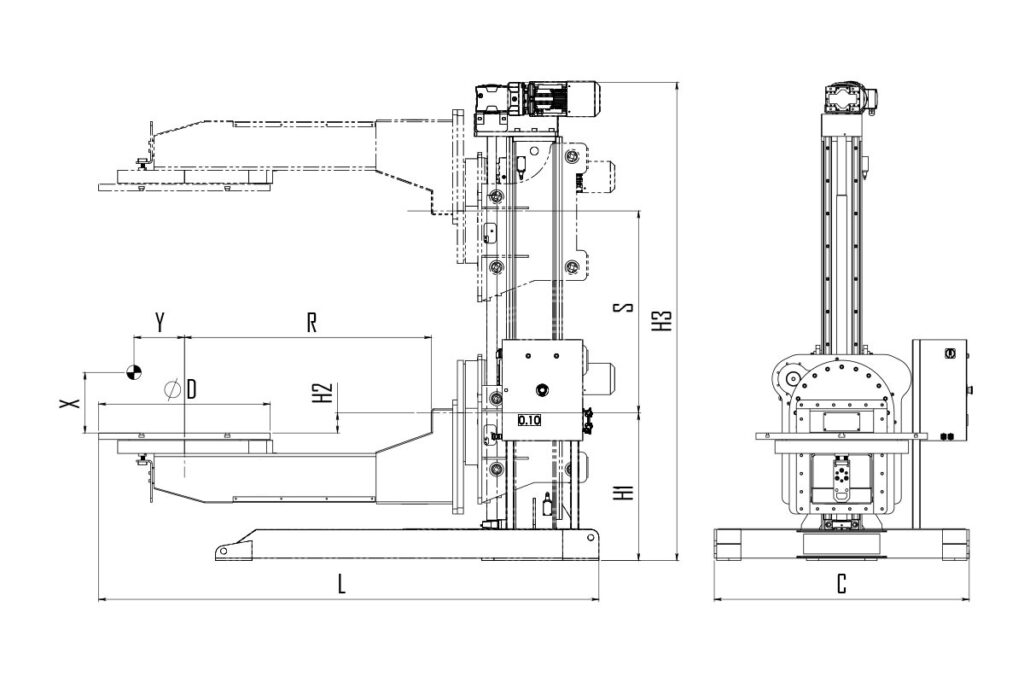

Technical Data
BLPL-3AX | Sym | Unit | BLPL 050 – 3AX | BLPL 075 – 3AX
| BLPL 1,5 – 3AX | BLPL 3 – 3AX |
Loading Capacity |
| kg
| 500
| 750
| 1500
| 3000 |
Lifting Stroke | S | mm
| 550
| 650
| 1000
| 1150 |
Working Radius | R
| mm
| 1000
| 1000
| 1200
| 1600 |
Offset Distance | X-Y | mm
| 450-150
| 300-150
| 300-150
| 300-150 |
Table Diameter
| ØD | mm
| 700
| 700
| 850
| 1000 |
Table Torque |
| Nm
| 750
| 1130
| 2260
| 4550 |
Table Speed |
| rpm
| 0,15-1,5
| 0,2-1,5
| 0,2-1,4
| 0,2 – 1 |
Tilt Torque |
| Nm
| 2100
| 2750
| 3340
| 6900 |
Tilt Speed
|
| rpm
| 1
| 0.70
| 0.70
| 0.55 |
Lifting Speed |
| m/min
| 0.60
| 0.60
| 0.50
| 0.50 |
Max. Welding Current | A
| mm
| 700
| 700
| 700
| 700 |
Rotating Center Height | H1
| mm
| 770
| 680
| 730
| 720 |
Plate Rotating Center Difference | H2 | mm
| 50
| 144
| 100
| 100
|
Total Height | H3 | mm
| 1900
| 1910
| 2380
| 2630
|
Total Length
| L
| mm
| 2170
| 2200
| 2480
| 3160 |
Total Width
| C
| mm
| 1170
| 1300
| 1265
| 1500 |
Motor Power of Table
|
| kW
| 0,37
| 0,37
| 0.55
| 0.75 |
Motor Power of Tilting |
| kW
| 0,37
| 0,37
| 0.55
| 0.75 |
Motor Power of Lifting |
| kW | 0,75
| 1.1
| 1.5
| 3 |
Weight |
| kg
| 730
| 1050
| 1390
| 2230 |
