B-Mak introduces ZIM – world-class concrete block machines, now available in North America with local service and support.
ZIM 518
Affordable Entry, Powerful Results

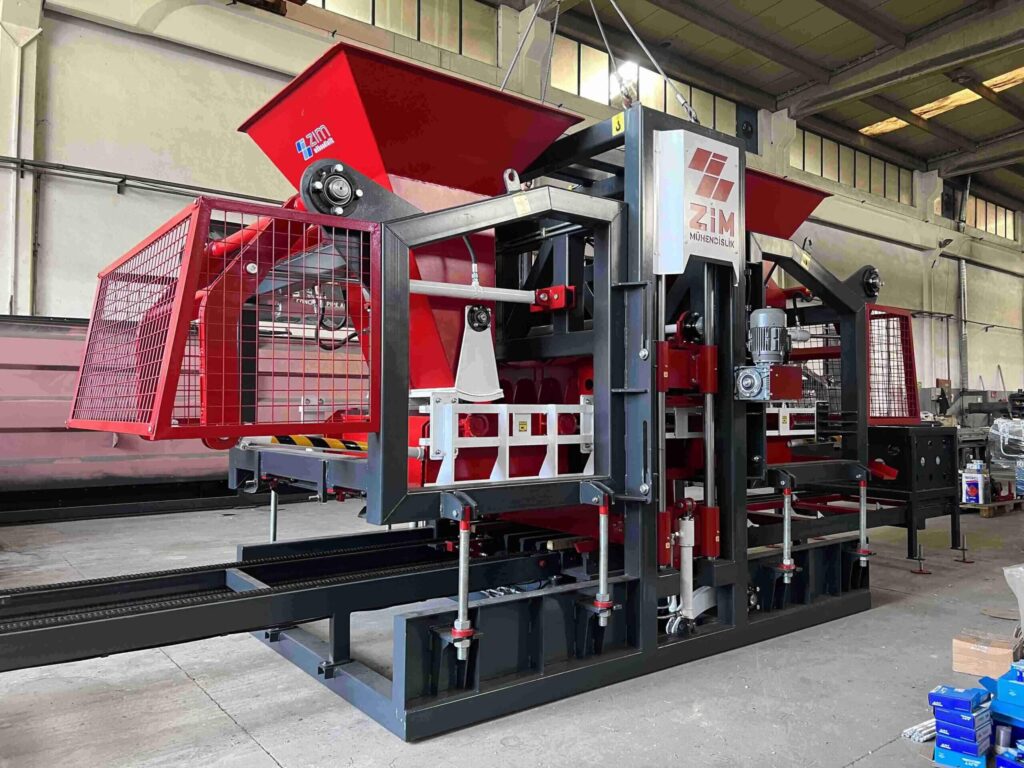

ZIM 518
Smart Performance, Strong Returns

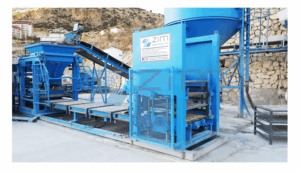

The ZIM 518 is the perfect entry-level, investor-friendly solution for producing double-layer paving stones, blocks, and even 1-meter curbstones. With its low investment cost, low energy use, and quick installation, it gives you everything you need to enter the market with confidence.
Why choose ZIM 518? Because it’s the budget-friendly machine that delivers premium paving stones, giving you a competitive edge and a fast return on investment.
- Solid Productivity – Delivers 5 blocks or 18 pavers per press, reaching up to 1,000 pallets per day.

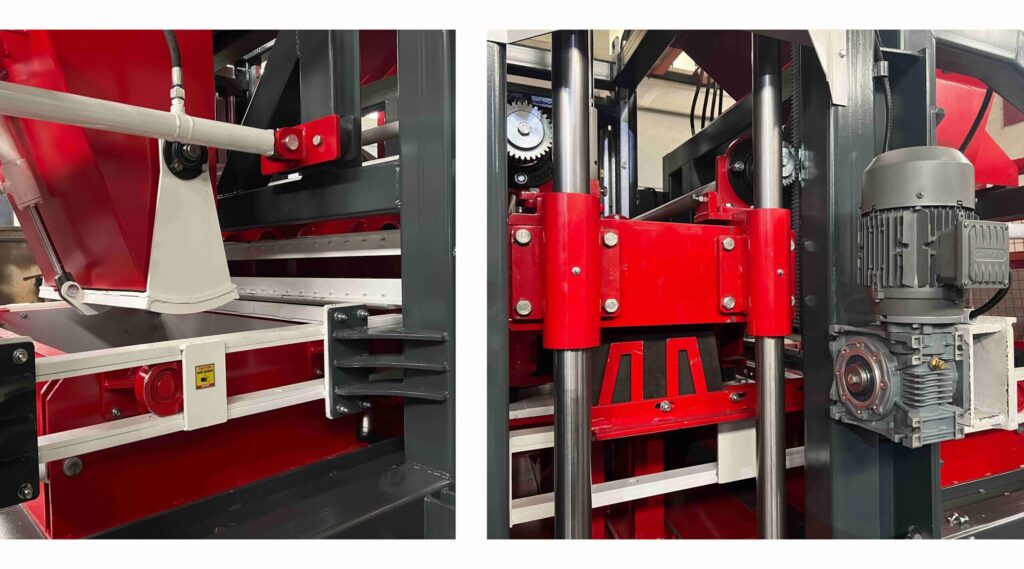

- Smart Engineering – Equipped with a driver-controlled vibration system, upper mold balancing, and a precision vibration table for consistent, high-quality results.

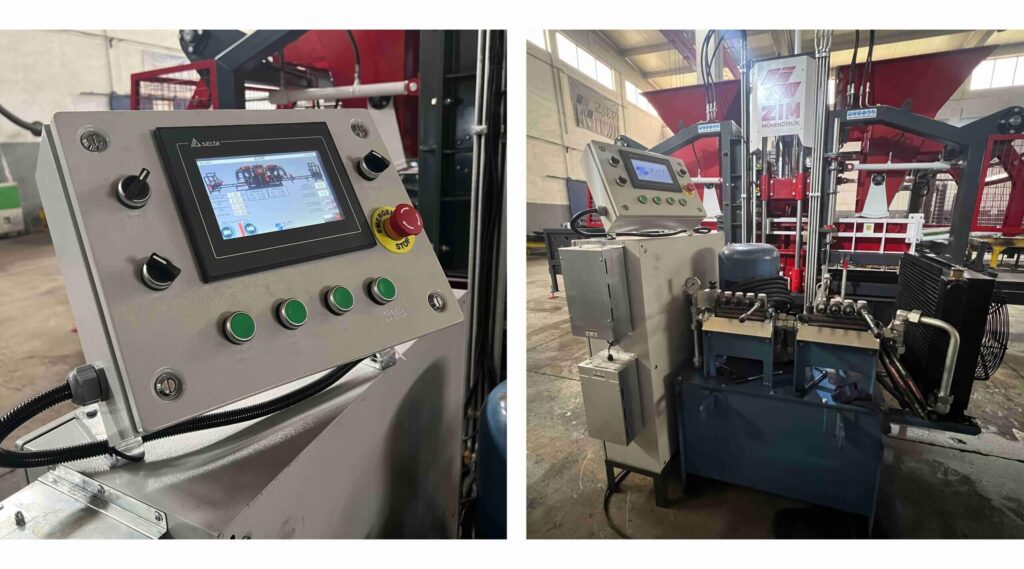

- Fast Setup – Designed for manual operation with hydraulic control and joystick, it can be installed and ready to work within hours.
- FULLDRIVE Technology – Frequency-controlled vibration reduces energy consumption, extends motor life, and ensures long-lasting reliability.
Technical Specifications
| Feature | Value |
| Machine Working System | Fully Automatic PLC Controlled / Semi-Automatic |
| Machine Production Capacity | 120 Pallets / Hour |
| Machine Weight | 6.500 KG |
| Production Pallet Dimensions | Manual System: 1150x700x40mm |
| Mold Usage Area | 1050mm x 510mm |
| Number of Products on a Pallet | 18 pcs of paverstone |
| 5 pcs Block ( 200x400x200mm ) | |
| Minimum Product Height | 60 MM |
| Maximum Product Height | 200 MM |
| Upper Vibration Power | 0.33 kW x 2 pcs |
| Lower Vibration Power | 5.5 kW x 2 pcs |
| Bunker Capacity | 1000 dm3 |
| Hydraulic System | REXROTH / EATON / DANFOSS BRANDS ARE USED. |
| Electric | SİEMENS / SCHNEİDER / ABB BRANDS ARE USED. |
| Total Power Usage | It varies according to the facility configuration. |
Production Capacity

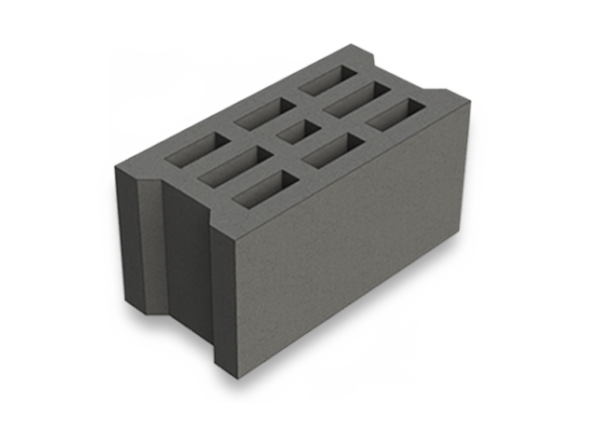

Blocks
200x400x200
Per Press
4
Pavers
198x163x100
Per Press
12
Curbstone
250x500x150
Per Press
3
Equipment
Front Robot

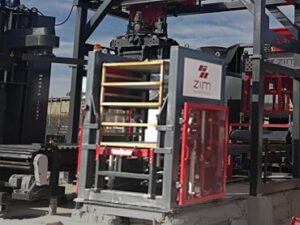

Back Robot
Hydraulic System

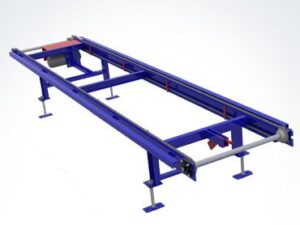

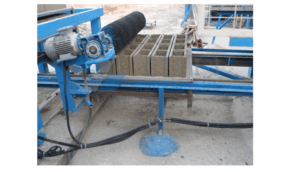

Exit Band With Chain

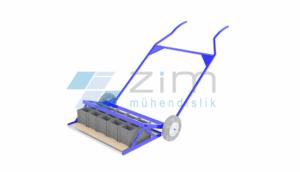

Product Carriage cart
ZIM 1536 ULTIMATE
The ZIM 1536 is a high-end, fully automated machine designed for continuous production of concrete blocks, paver stones, and curbstones, delivering up to 1,400 pallets per day with fast mold changes, VIBROSTAR vibration technology, and low labor costs.
ZIM 1025 PERFORMANCE
The ZIM 1025 delivers up to 1,000 pallets per day, producing blocks, pavers, and even 1-meter curbstones with precision and flexibility. With quick 15-minute mold changes, advanced FULLDRIVE vibration technology, and options from manual to fully automatic operation, it’s the smart mid-high level machine that guarantees top quality, low energy costs, and a fast return on investment.
ZIM 820 – Smart Entry, Big Performance
The ZIM 820 is a mid-entry machine built for double-layer paving stones, delivering up to 1,000 pallets per day with just 8 blocks or 20 pavers per press. Combining low energy consumption, FULLDRIVE vibration technology, and flexible operation (manual to fully automatic), it offers top quality, efficiency, and a fast ROI in a compact, cost-effective package.
ZIM 518 – Affordable Entry, Powerful Results
The ZIM 518 is an entry-level, investor-friendly machine delivering up to 1,000 pallets per day of paving stones, blocks, or even 1-meter curbstones. With low investment cost, low energy use, and quick installation, it combines FULLDRIVE vibration technology and smart design to guarantee high-quality output and fast ROI — giving you a strong edge in the competition.
