BEM S 1AX - Headstock Tailstock Welding Positioner
Compact Design. Single-Axis Precision.
The BEM S 1AX
General Features
The BEMS-1AX delivers 360° precision and control for welding and assembly operations — no matter the geometry of the workpiece. Designed for strength, accuracy, and reliability, it ensures perfect positioning and superior weld quality in every application.
With optional quick-mounting and detaching equipment, operators benefit from faster setups and an ergonomic 360° operation environment, boosting both safety and efficiency.
Constructed with one driven body and one idler body, the BEMS-1AX allows the workpiece to be precisely rotated at the center axis via intuitive command control, in either clockwise (CW) or counterclockwise (CCW) directions, at variable speeds.
Compact yet powerful, the BEMS-1AX offers smooth performance, operator comfort, and consistent welding excellence in every rotation.
Optional Control Units
● T-SE-Round Worktable T-Side Entry Grooved Thick Table Plate
● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● OHC-Overhead Hangable Control
● WRC – Wireless Remote Control
● EFFA – Easy Fixing Fixture Apparatus
● PLC-PLC Control System with HMI Display
Standard Features
● 360° Rotating Worktable — complete flexibility for any welding angle.
● Round Worktable with Holes (Adaptable to EFFA .Apparatus)
● Adjustable Rotation Speed for perfect control over every job.
● Digital Speed Display on the control cabinet for real-time accuracy.
● 5 m Command Cable + 5 m Power Cable — ready for instant connection.
● Brake & Fan-Cooled Motor ensures smooth, consistent performance.
● Integrated Welding Arc Group for seamless operation.
Advantages
● Multiple Capacity Options: Available in 1 t, 2 t, 3 t, and 5 t models to match your workload.
● Powerful Motor System with integrated brake and forced fan cooling ensures smooth, long-lasting performance.
● Optional Welding Arc Group for complete process integration.
● Optional T-Slot Table allows quick and secure workpiece clamping.

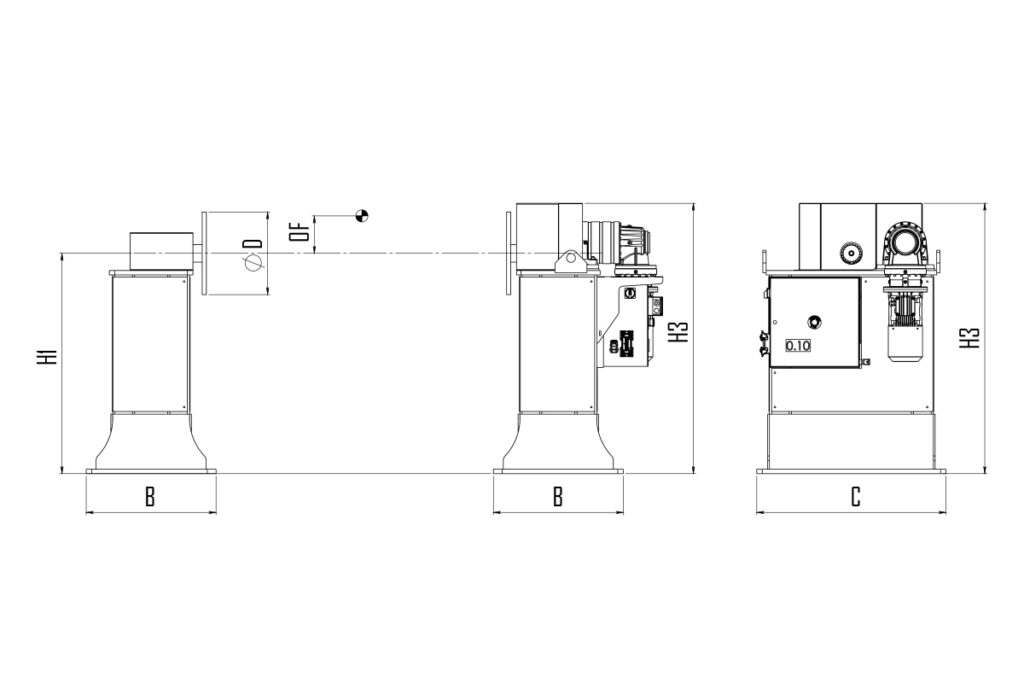

Technical Data
BEM(S) 1AX | Sym | Unit | BEM1S – 1AX | BEM2S – 1AX
| BEM3S – 1AX
| BEM5S – 1AX
|
Capacity |
| kg
| 1000
| 2000
| 3000
| 5000
|
Rotation Speed |
| rpm
| 0,2 – 1,2
| 0,2 – 1,15
| 0,2 – 1
| 0,2 – 1,2
|
Max. Rotational Torque
| Nm
| 1500
| 3000
| 4500
| 5000
| |
Rotation Axle Height | H1
| Nm
| 1000
| 1000
| 1000
| 1250
|
Offset Distance | OF
| mm
| 150
| 150
| 150
| 100
|
Worktable Diameter | ØD | mm
| 375
| 375
| 375
| 500
|
Max. Workpiece Diameter
|
| mm
| 2000
| 2000
| 2000
| 2500
|
Height | H3 | mm
| 1220
| 1220
| 1250
| 1500
|
Length | L | mm
| 520
| 590
| 650
| 670
|
Width
| C
| mm
| 800
| 860
| 980
| 1060
|
Motor Power of Table
|
| kW
| 0,37
| 0,55
| 0,75
| 1,1
|
Weight |
| kg
| 590
| 760
| 890
| 1270 |
