Mini BTT - Welding Turntable
Compact. Reliable. Perfectly Precise.

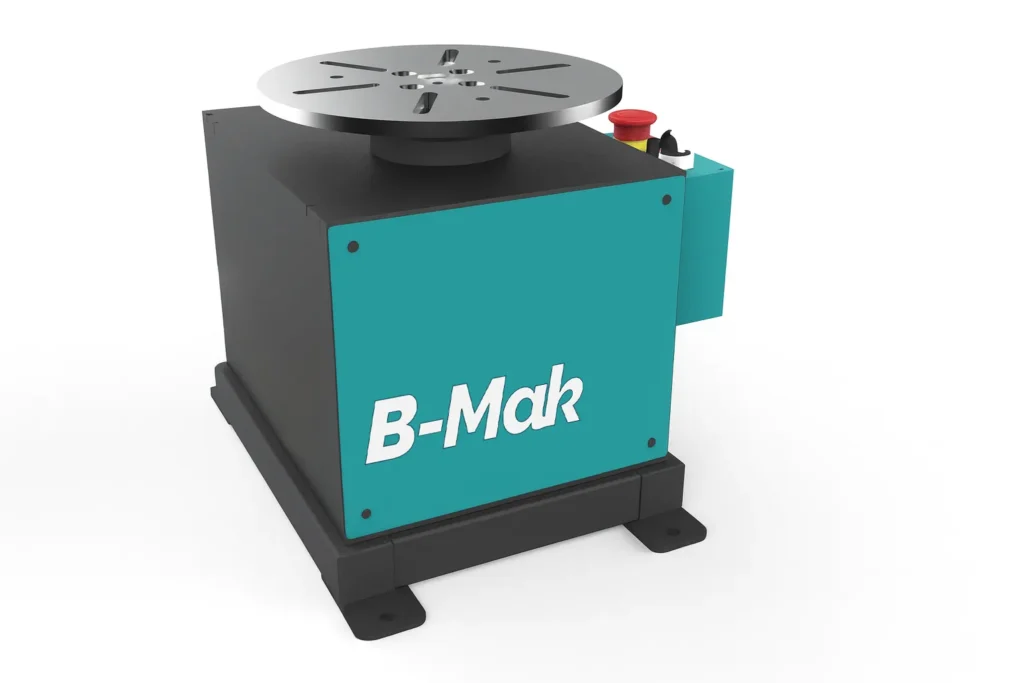

The Mini BTT
General Features
The Mini-BTT Welding Turntable is a compact, efficient, and precise positioning solution designed for easy mounting and smooth rotation of cylindrical or irregular workpieces. Ideal for applications across industrial fabrication, petrochemical, energy, transmission, and shipbuilding sectors, it delivers professional-grade welding performance in a compact form.
Engineered for 360° continuous rotation, the Mini-BTT ensures perfect positioning and optimal welding angles for every workpiece — regardless of shape or dimension. Optional quick-mounting and detaching equipment allows faster setups, increasing efficiency and operator comfort.
By removing the need for crane-based handling or manual part rotation, the Mini-BTT minimizes downtime and boosts productivity, allowing operators to work more effectively and safely.
Equipped with a Slot-Grooved worktable for quick and secure clamping, the Mini-BTT can also be manufactured with an optional T-Grooved thick plate for heavier-duty applications
Optional Control Units
● DFPSE-Double Foot Pedal with Stick and Stop (3m)
● SFP-Single Foot Pedal (3m)
● OHC-Overhead Hangable Control
● WRC – Wireless Remote Control
Standard Features
● Precision Round Worktable with T-Slots — designed for easy, secure, and adaptable workpiece mounting.
● Adjustable Worktable Rotation Speed for precise and consistent control.
● 360° Worktable Rotation — complete accessibility for efficient welding from any angle.
● 3 m Power Cable — ready for quick installation and flexible positioning.
Advantages
● Reliable Drive System: Equipped with a brake and forced fan-cooled motor for stable, long-lasting performance.
● Optional T-Slot Worktable: Allows quick and secure clamping of workpieces for higher productivity.

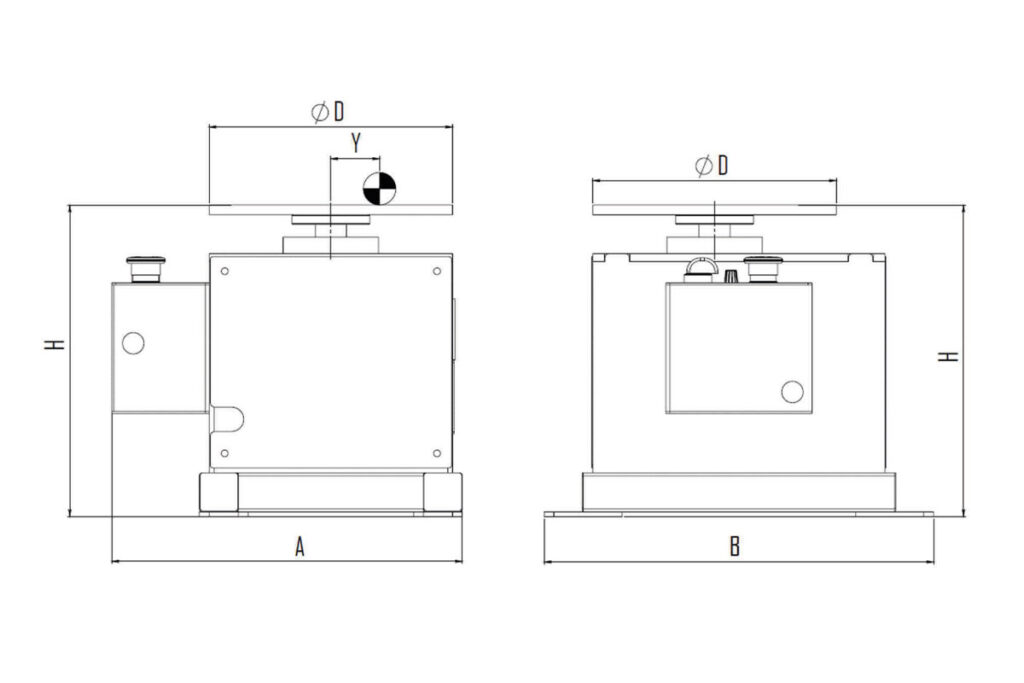

Technical Data
Mini BTT | Sym | Unit | Mini-BTT005 | Mini-BTT030 |
Capacity |
| kg
| 50
| 300 |
Rotation Speed |
| rpm
| 0-4
| 0,3 -2,3 |
Offset
| Y
| mm
| 50
| 50 |
Table Plate Diameter | ØD
| mm
| 250
| 500 |
Width | H
| mm
| 320
| 360 |
Length | A
| mm
| 360
| 500 |
Height | A
|
| 360
| 500 |
Motor Power of Table | Watt | 100
| 250 | |
Weight | kg | 30
| 140 |
