Industrial Productivity,
Engineered for the Future.
B-Mak introduces ZIM – world-class concrete block machines, now available in North America with local service and support.
ZIM 12
Strength. Speed. Simplicity.

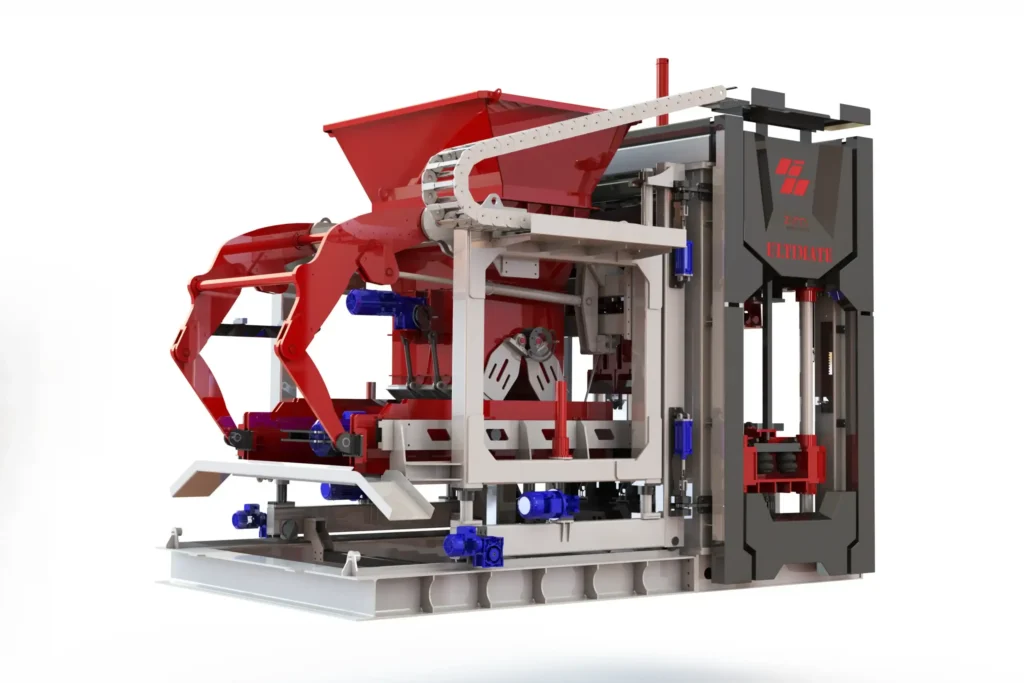

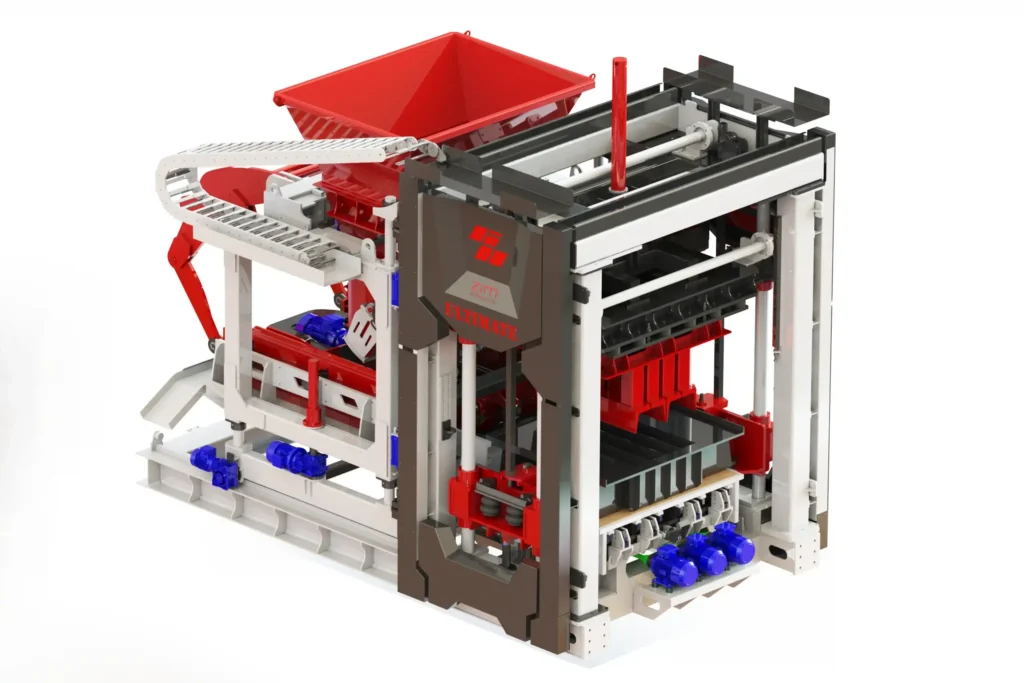

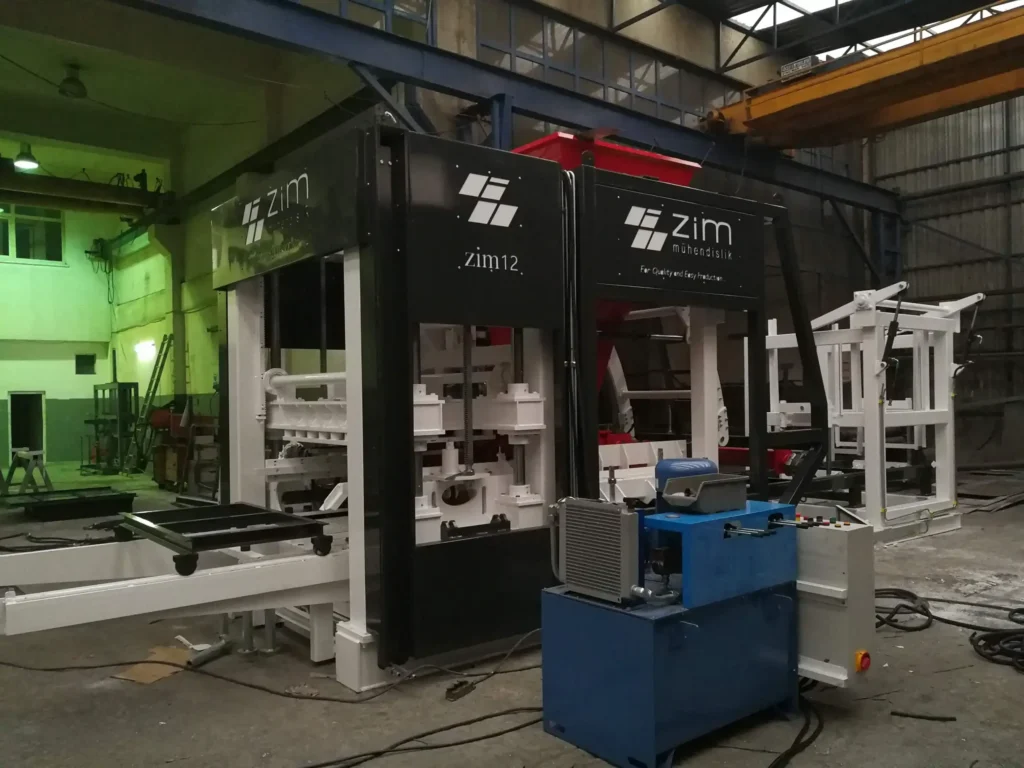

The ZIM 12
Compact Power. Industrial Strength.
The ZIM 12 is a high-end production machine engineered for concrete block manufacturing at industrial scale. With low labor costs, premium hardware, and wide production options, it integrates seamlessly into automatic facilitiessuch as Finger Car, U-Type, and L-Type systems.
Built for Mass Production
Producing 12 blocks per press and up to 1,200–1,400 pallets per day, the ZIM 12 is designed for continuous, non-stop operation. Every cycle delivers precision, consistency, and maximum efficiency — giving you the edge in high-volume production.
Smart, User-Friendly Design
Loadcell bunker system for accurate mortar monitoring.

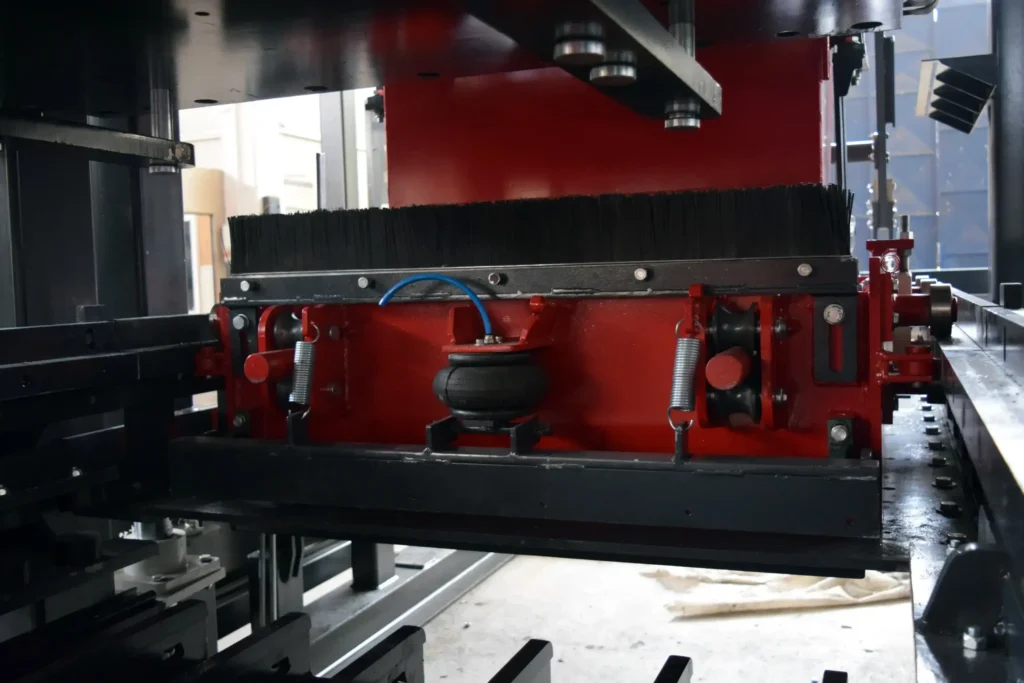

Proportional mortar car movement for flawless filling.
Advanced mold balancing & pressing system for superior block quality.
15-minute mold change thanks to pneumatic connections, rail separation, and automatic height adjustments.
Vibration Excellence with VIBROSTAR
The ZIM 12 is powered by our VIBROSTAR oil-bathed vibration system:
4 engines delivering 22 kW of power.
Oil circulation keeps the system super cool, extending life.
Shaft-connected vibration technology ensures durability and zero downtime.
Your Reliable Partner in Production
With robust engineering, automation-ready design, and reliable vibration technology, the ZIM 12 is more than a machine — it’s your gateway to efficient, large-scale concrete production. Backed by decades of expertise, it’s built to perform day after day, year after year.
Choose the ZIM 12 and unlock consistent, cost-efficient production.
TECHNICAL DETAILS
- Product Height: 60mm-200mm

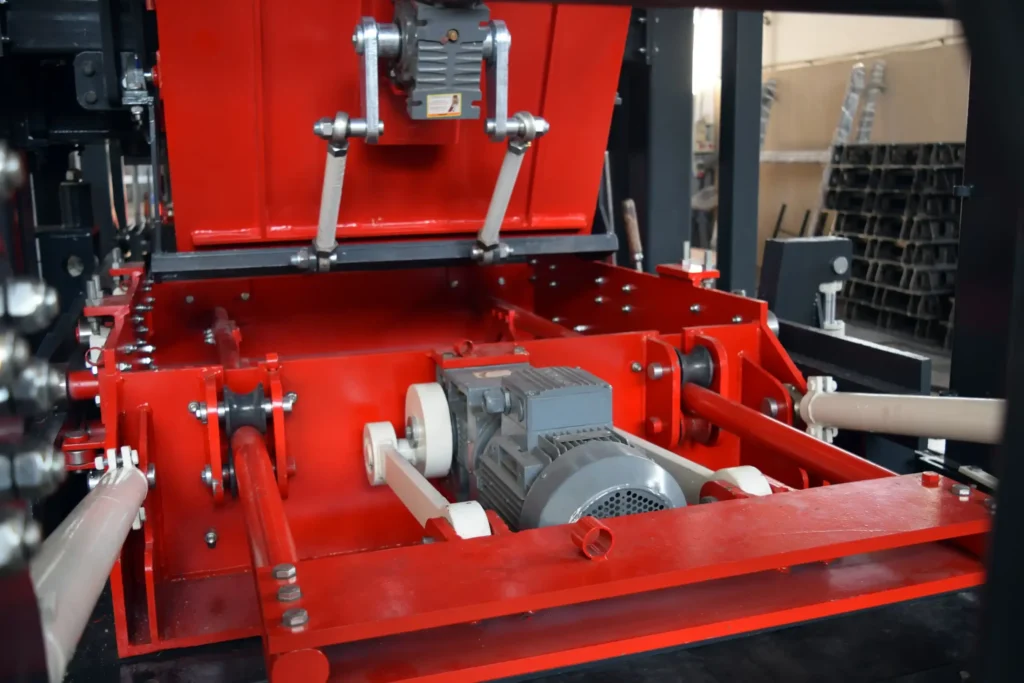

- Inner Shaking System

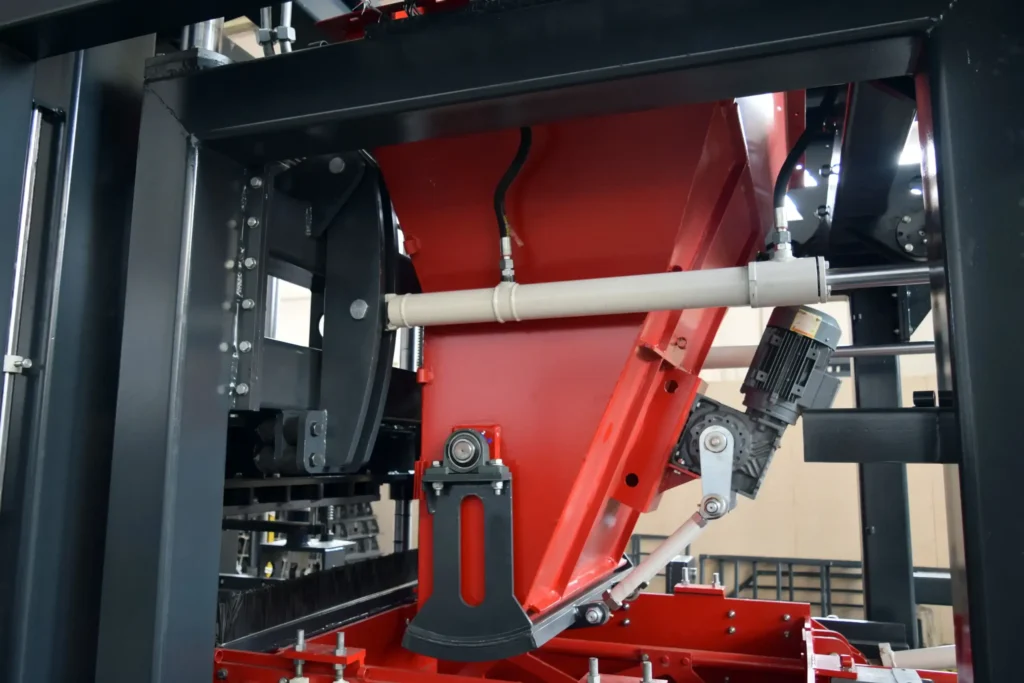

- Arm Suspension System
- Pneumatic Mould Changing
- Special Mould Balancing System
VIBRATION SYSTEM
- Non-Stop Vibration Working
- Controlled By Electronic Drivers
- Bearing Works In Oil Bath
- Shaft Connected Power System
- Vibration Engines 5.5 kW x 4
HYDRAULIC SYSTEM
- Air Cooling Equipment
- REXROTH Valves
- Proportional Movements On Mortar Cart
- Power: 45 kW
Technical Specifications
| Feature | Value |
| Machine Working System | Fully Automatic PLC Controlled |
| Machine Production Capacity | 150-180 Pallets / Hour |
| Machine Weight | 17.500 KG |
| Production Pallet Dimensions | Basket / Finger Car System: 1400x1000x50mm |
| Pallet with legs System: 1450x950x50mm (25 cm leg height) | |
| Mold Usage Area | 1050mm x 1050mm |
| Number of Products on a Pallet | 12 pcs Block ( 200x400x200mm ) |
| Minimum Product Height | 50 MM |
| Maximum Product Height | 200 MM |
| Upper Vibration Power | 1 kW x 4 pcs |
| Lower Vibration Power | 7.5 kW x 6 pcs |
| Bunker Capacity | 2000 dm3 |
| Hydraulic System | REXROTH / EATON / DANFOSS BRANDS ARE USED. |
| Electric | SİEMENS / SCHNEİDER / ABB BRANDS ARE USED. |
| Total Power Usage | It varies according to the facility configuration. |
Production Capacity
Blocks
200x400x200
Per Press
8

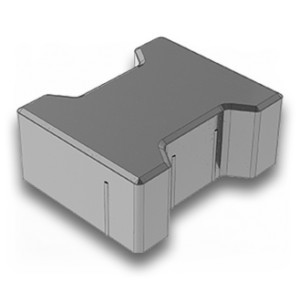

Pavers
198x163x100
Per Press
20

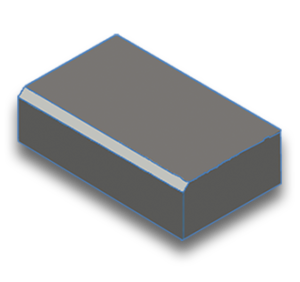

Curbstone
250x500x150
Per Press
3

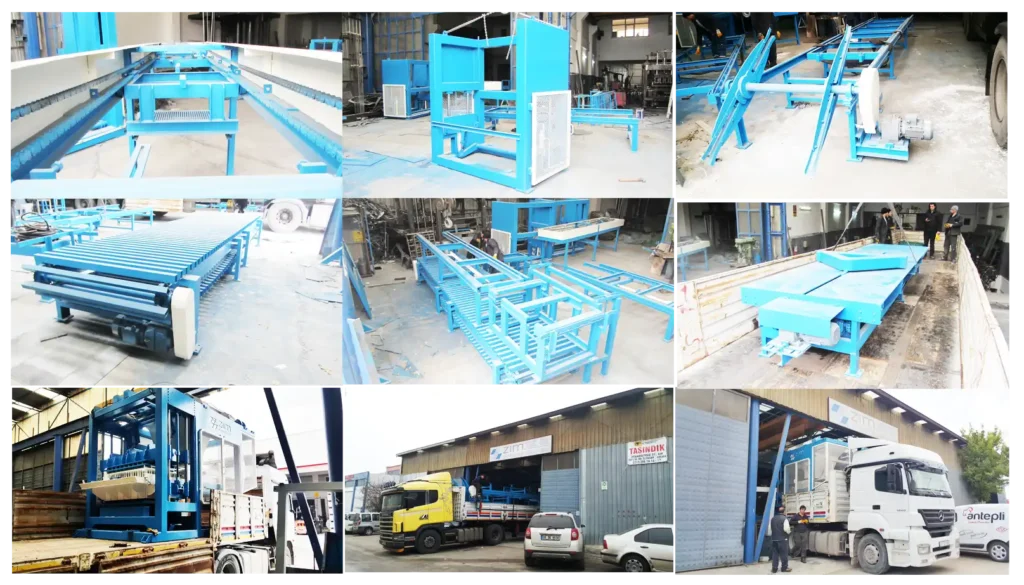

Equipment
Front Robot
Back Robot
Exit Band With Chain
Collector Robot
Stacking Exit Band
12 TO 18 STACKING
Pallet Reversing System
Material Cleaning System
Pallet Cleaning System
Stacking System for Pallets without Leg
Automation System
Block Seperation System
ZIM 1536 ULTIMATE
The ZIM 1536 is a high-end, fully automated machine designed for continuous production of concrete blocks, paver stones, and curbstones, delivering up to 1,400 pallets per day with fast mold changes, VIBROSTAR vibration technology, and low labor costs.
ZIM 1025 PERFORMANCE
The ZIM 1025 delivers up to 1,000 pallets per day, producing blocks, pavers, and even 1-meter curbstones with precision and flexibility. With quick 15-minute mold changes, advanced FULLDRIVE vibration technology, and options from manual to fully automatic operation, it’s the smart mid-high level machine that guarantees top quality, low energy costs, and a fast return on investment.
ZIM 820 – Smart Entry, Big Performance
The ZIM 820 is a mid-entry machine built for double-layer paving stones, delivering up to 1,000 pallets per day with just 8 blocks or 20 pavers per press. Combining low energy consumption, FULLDRIVE vibration technology, and flexible operation (manual to fully automatic), it offers top quality, efficiency, and a fast ROI in a compact, cost-effective package.
ZIM 518 – Affordable Entry, Powerful Results
The ZIM 518 is an entry-level, investor-friendly machine delivering up to 1,000 pallets per day of paving stones, blocks, or even 1-meter curbstones. With low investment cost, low energy use, and quick installation, it combines FULLDRIVE vibration technology and smart design to guarantee high-quality output and fast ROI — giving you a strong edge in the competition.
