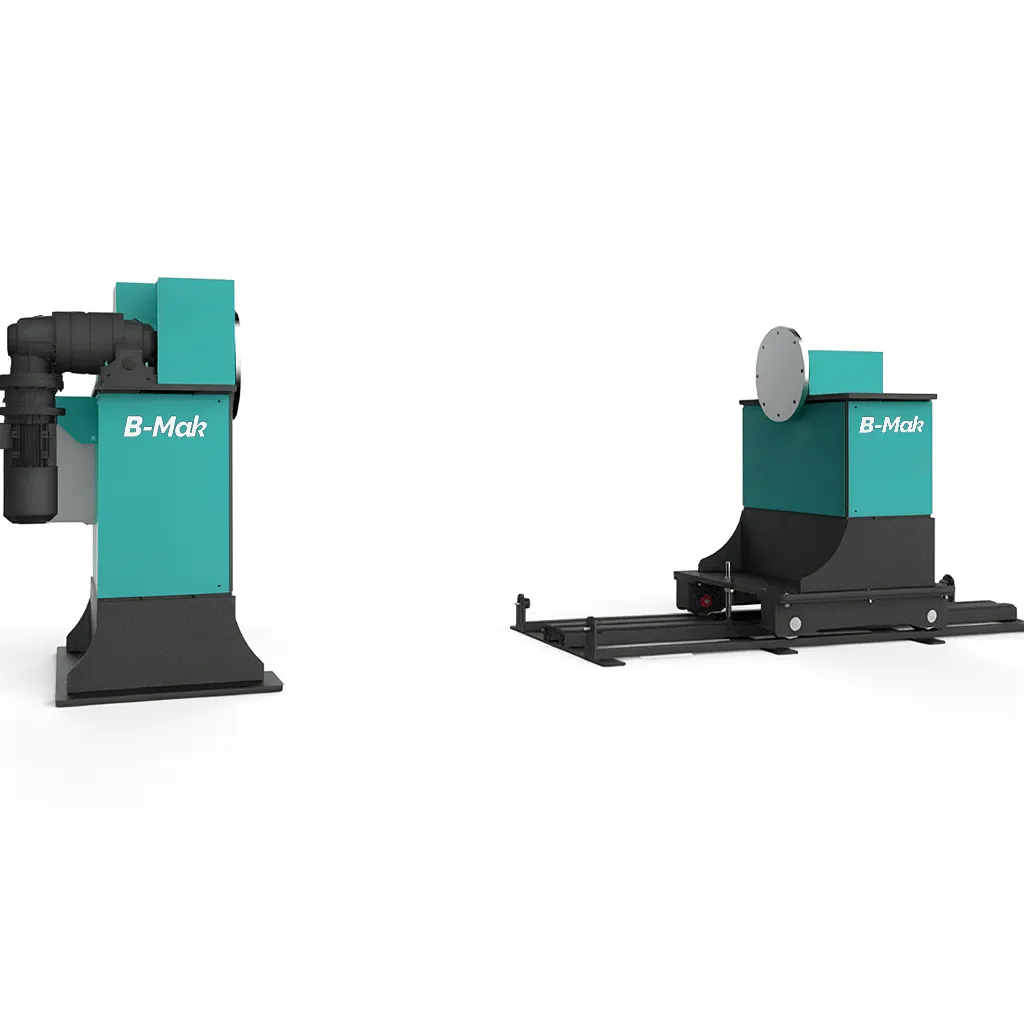

BEM G 1AX - Headstock Tailstock Welding Positioner
1 Axis Precision. Infinite Reliability.
The BEM G 1AX
General Features
The BEMG-1AX is designed to deliver 360° precision welding and assembly for workpieces of any shape within its capacity. Its 1-axis rotation system ensures smooth, stable positioning — creating ideal welding edges and superior results on every project.
With optional quick-mounting equipment, setup and detachment are effortless, while the 360° rotation capability offers a truly ergonomic and efficient working environment.
Built with one driven body and one idler body, the BEMG-1AX provides precise control over the workpiece via intuitive command controls, allowing clockwise (CW) or counter-clockwise (CCW) rotation at adjustable speeds.
Strong, reliable, and easy to operate — the BEMG-1AX enhances productivity, operator comfort, and welding quality in every rotation.
Optional Control Units
- T-SE-Round Worktable T-Side Entry
- Grooved Thick Table Plate
- DFPSE-Double Foot Pedal with Stick and Stop (3m)
- OHC-Overhead Hangable Control
- WRC – Wireless Remote Control
- EFFA – Easy Fixing Fixture Apparatus
- PLC-PLC Control System with HMI Display
Standard Features
● 360° Rotating Worktable — complete flexibility for any welding angle.
● Round Worktable with Holes (Adaptable to EFFA .Apparatus)
● Adjustable Rotation Speed for perfect control over every job.
● Digital Speed Display on the control cabinet for real-time accuracy.
● 5 m Command Cable + 5 m Power Cable — ready for instant connection.
● Brake & Fan-Cooled Motor ensures smooth, consistent performance.
● Integrated Welding Arc Group for seamless operation.
Advantages
- Multiple Capacity Options: Available in 1 t, 2 t, 3 t, and 5 t models to match your workload.
- Powerful Motor System with integrated brake and forced fan cooling ensures smooth, long-lasting performance.
- Optional Welding Arc Group for complete process integration.
- Optional T-Slot Table allows quick and secure workpiece clamping.
- Customer-Focused Engineering: For any special project or request, our team is ready to design the perfect fit for your production needs.
Technical Data
BEM(G) 1AX | Sym | Unit | BEM1G – 1AX | BEM2G – 1AX
| BEM3G – 1AX
| BEM5G – 1AX
|
Capacity |
| kg
| 1000
| 2000
| 3000
| 5000
|
Rotation Speed |
| rpm
| 0,2 – 1,2
| 0,2 – 1,15
| 0,2 – 1
| 0,2 – 1,2
|
Max. Rotational Torque
|
| Nm
| 1500
| 3000
| 4500
| 5000
|
Rotation Axle Height | H1
| Nm
| 1000
| 1000
| 1000
| 1250
|
Offset Distance | OF
| mm
| 150
| 150
| 150
| 100
|
Worktable Diameter | ØD | mm
| 375
| 375
| 375
| 500
|
Max. Workpiece Diameter
|
| mm
| 2000
| 2000
| 2000
| 2500
|
Height | H3 | mm
| 1220
| 1220
| 1250
| 1500
|
Length | L | mm
| 520
| 590
| 650
| 670
|
Width
| C
| mm
| 800
| 860
| 980
| 1060
|
Rail Type |
|
| By Birel
| By Birel | By Birel | By Birel |
Rail Stroke (F-Stroke) | F1-F2 | mm | 1340 | 1250 | 1150 | 1100 |
Motor Power of Table
|
| kW
| 0,37
| 0,55
| 0,75
| 1,1
|
Weight |
| kg
| 590
| 910
| 1060
| 1460 |
