B-Mak introduces ZIM – world-class concrete block machines, now available in North America with local service and support.
ZIM T 815
Compact Power for Small-Size Pipe Production

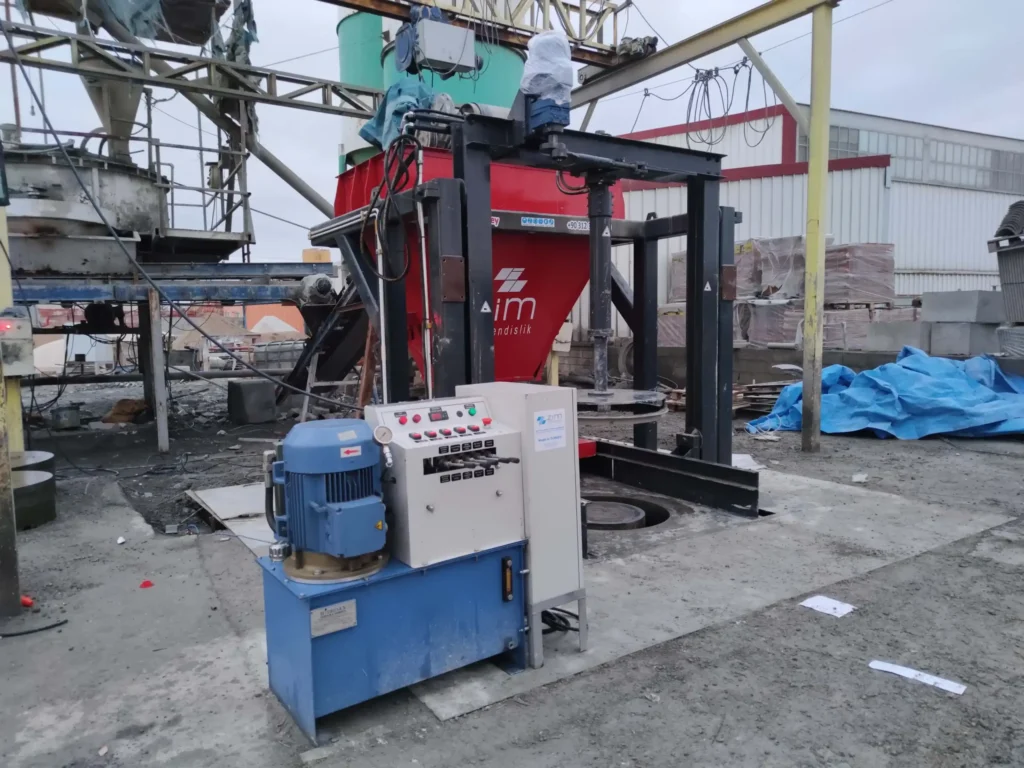

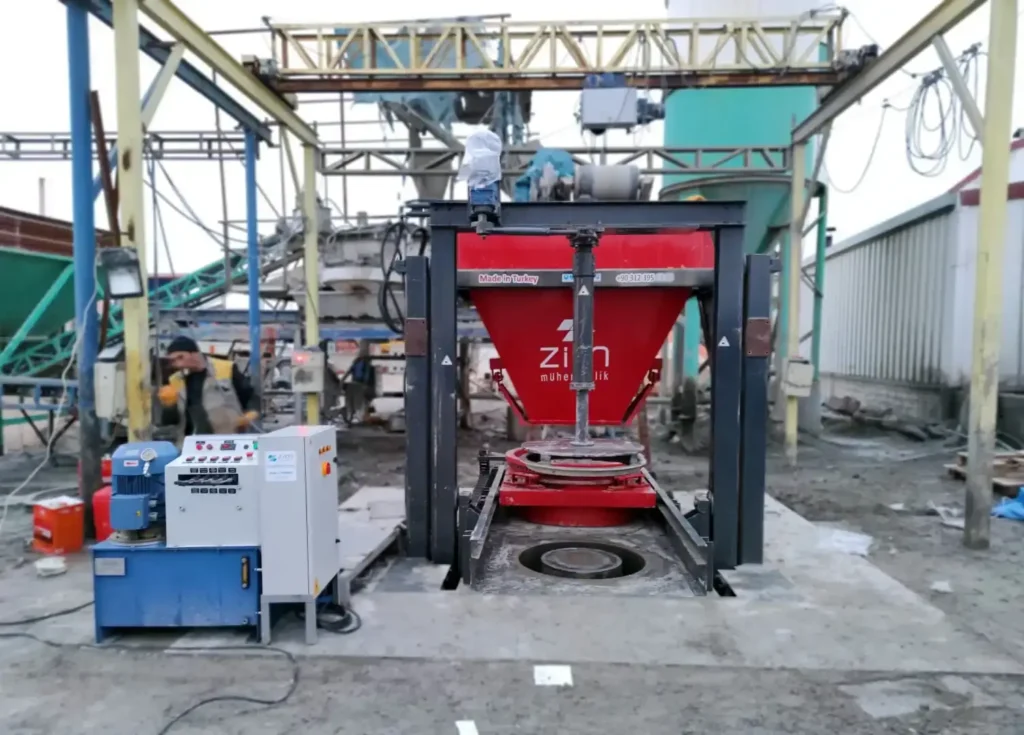

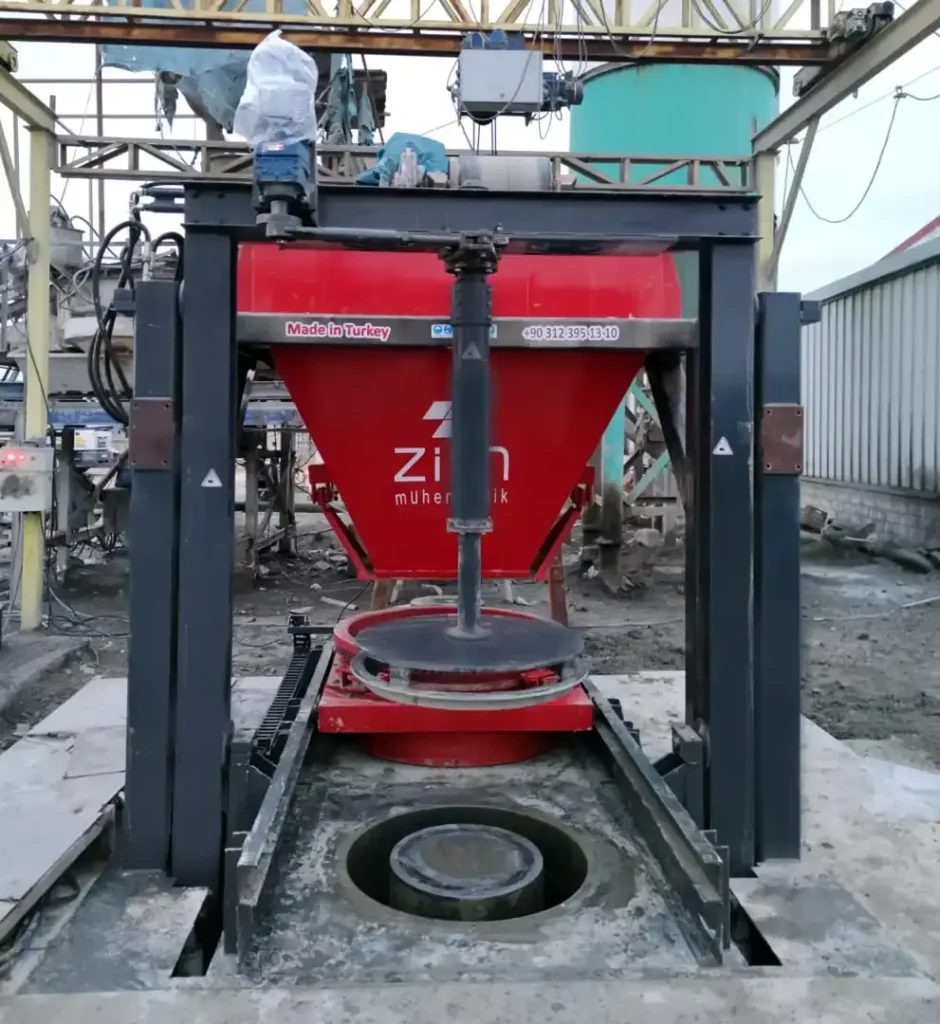

The ZIM T 815
The ZIM T 815 is a highly efficient machine designed specifically for the production of small to mid-size concrete pipes. With flexible configurations, smart automation, and a durable chassis, it delivers fast cycles, consistent quality, and long service life — making it the perfect choice for manufacturers seeking high output at lower costs.
Why ZIM T 815?
Because it combines compact flexibility, high-speed cycles, and robust engineering, giving you the edge in small pipe production.
High-Capacity Output
Produces pipes from 150 mm to 800 mm in diameter and 500 mm to 1500 mm in height.
Configurable for single, double, or triple pipe production per press.
Available in semi-automatic or fully automatic versions, powered by SIEMENS PLC controls for precision and reliability.
Intelligent Design

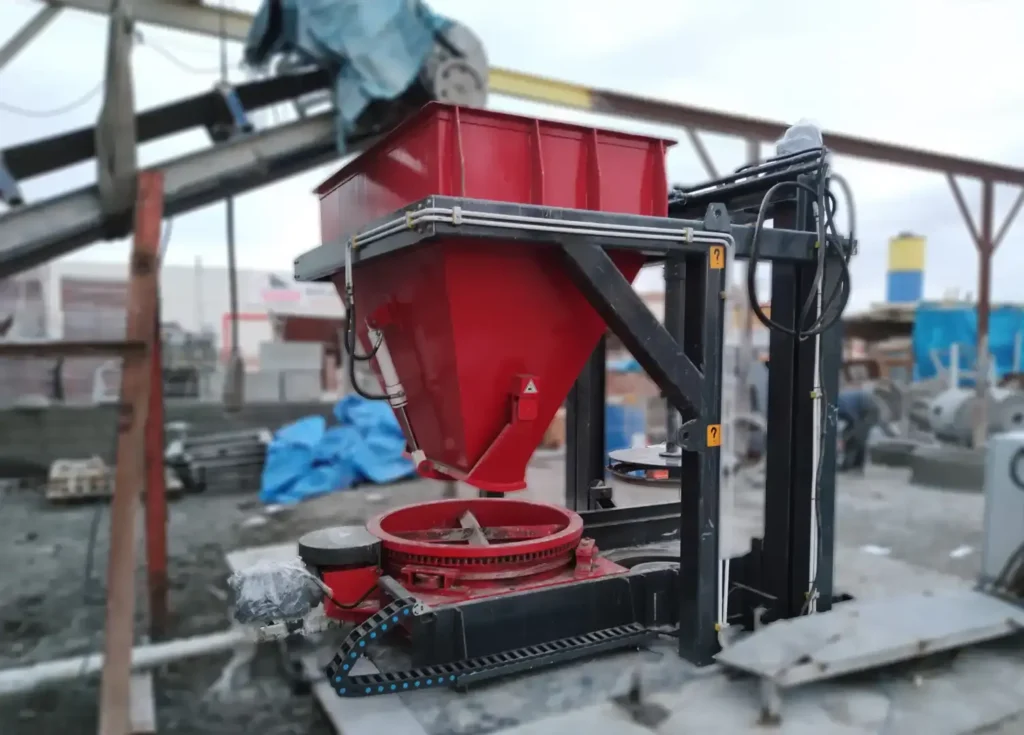

Mortar bunker and filling cart with inner filling system ensures fast and even mold filling.
Frequency-controlled vibration system with easy operator panel adjustments — no mechanical tuning required.
Oil-cooled vibrator unit with sensor-monitored circulation delivers stable performance and low maintenance costs.
Durable & Reliable
Heavy-duty chassis ensures long-term, error-free operation.
Products can be transported easily to the drying area with carts or forklifts, keeping production continuous.
Proven ZIM engineering guarantees years of trouble-free service.
Technical Specifications
| Concrete Pipe Dimensions | 150mm – 800mm |
| Concrete Pipe Length | 1500mm |
| Vibrator Motor Power | 3×5.5kW |
| Vibrator Type | Special Type with Liquid lubrication |

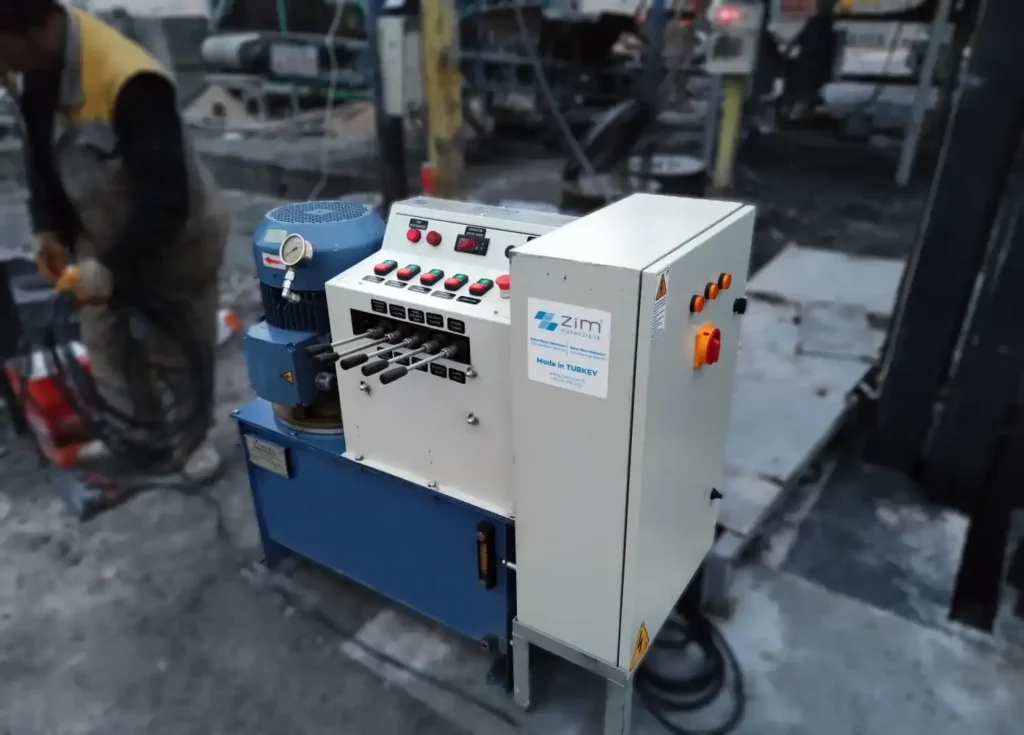

| Hydraulic Motor Power | 11kW |
| Hydraulic Cooling system | Cooling With Air |
| Command System | Manual – Electrical |
| Volume of Motrar Bunker | 1,5m³ |
| Motrar Filling Motor Power | 4kW |
| Vibrator Lubricating System | 3x1kW |
Production Capacity
SINGLE PRESS PRODUCTION AMOUNT | Ø150 mm h:1500mm Concrete Pipe | 3 Pcs |
| Ø200 mm h:1500mm Concrete Pipe | 3 Pcs | |
| Ø300 mm h:1500mm Concrete Pipe | 2 Pcs | |
| Ø400 mm h:1500mm Concrete Pipe | 1 Pcs | |
| Ø500 mm h:1500mm Concrete Pipe | 1 Pcs | |
| Ø600 mm h:1500mm Concrete Pipe | 1 Pcs | |
| Ø800 mm h:1500mm Concrete Pipe | 1 Pcs |
DAILY PRODUCTION AMOUNT (8 HOURS) | Ø150 mm h:1500mm Concrete Pipe | 450 Pcs |
| Ø200 mm h:1500mm Concrete Pipe | 450 Pcs | |
| Ø300 mm h:1500mm Concrete Pipe | 250 Pcs | |
| Ø400 mm h:1500mm Concrete Pipe | 120 Pcs | |
| Ø500 mm h:1500mm Concrete Pipe | 100 Pcs | |
| Ø600 mm h:1500mm Concrete Pipe | 80 Pcs | |
| Ø800 mm h:1500mm Concrete Pipe | 60 Pcs |
Equipment
Production Pallet
Fiber Heading

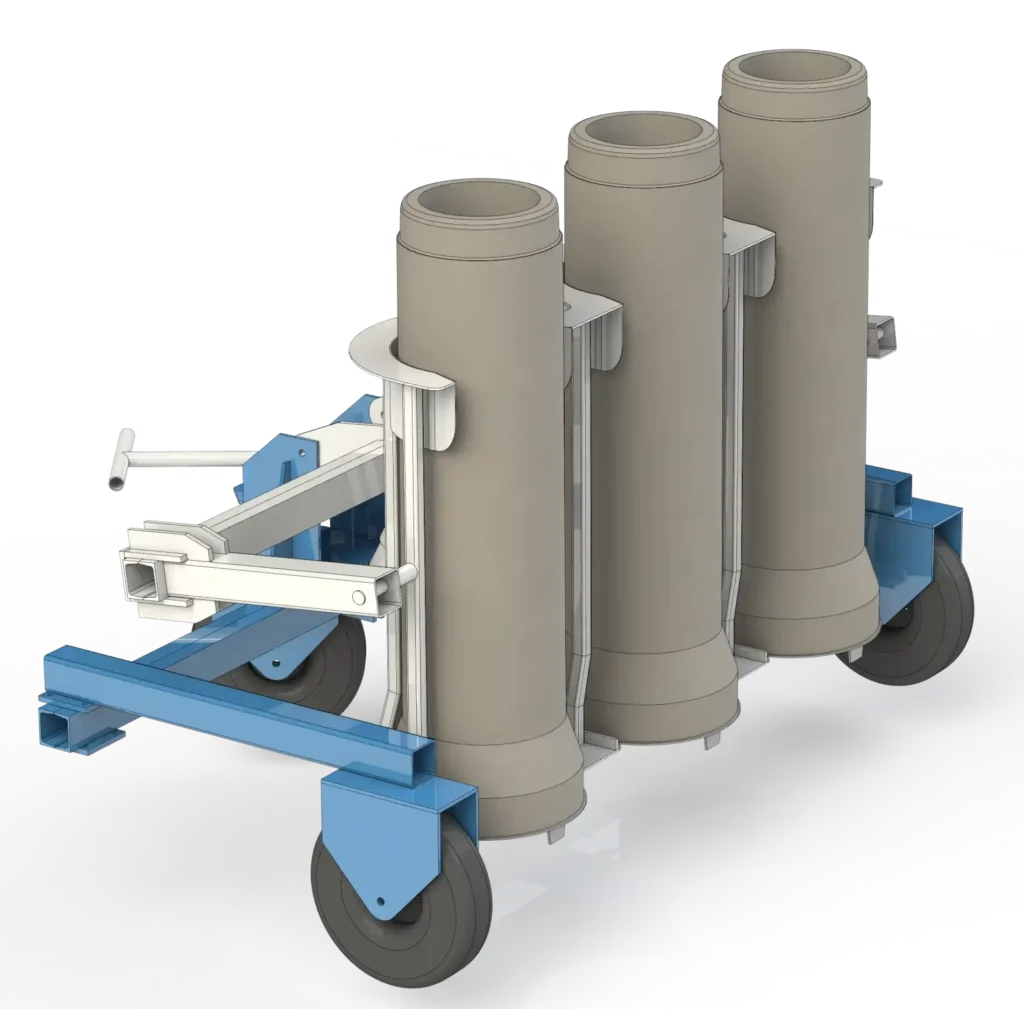

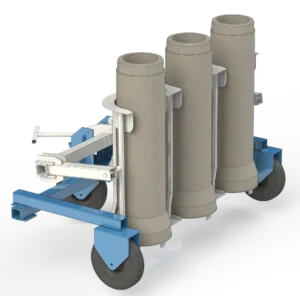

Hydraulic Carriage Cart
Carriage Basket
ZIM T 815
Compact machine for small pipes 150–800 mm, with single, double, or triple pipe production per cycle.
ZIM T 1015
Efficient machine for manholes, conics, and rings up to 1000 mm diameter / 1500 mm height.
ZIM T 1220
Flexible pipe production machine (300–1200 mm, up to 2000 mm height) with multi-pipe cycles for maximum output.
ZIM A 1210
High-capacity machine for manholes, conics, and rings up to 1200 mm diameter, designed for efficiency and durability.
